SiriusXM Subscription Offers
- 12 months of the Platinum Plan for only $99 ($8.25/month)
- 12 months of the Music & Entertainment Plan for only $60 ($5/month)
It's here! Now you can purchase the Onyx EZR vehicle kit with the Bluetooth® Dock.
The SXBTD1V1 is the only SiriusXM™ Radio Bluetooth®™ Vehicle Docking Cradle on the market today. Also, if you would like to use this cradle at home, just purchase our SiriusXM™ Radio PowerConnect home power adapter.
Bluetooth® Cradle Overview
- Dock and Play Bluetooth® SiriusXM™ Radio Vehicle Dock (based on the XM second generation vehicle dock)
- Simple Bluetooth® operation with a single button and two-color LED lights
- One touch Bluetooth® pairing and on/off functions
- Compatible with all SiriusXM™ Radios and legacy XM hi-band Radios (Sirius Radios not compatible)
- Compatible with SiriusXM vehicle accessories such as Dash and Vent Mounts, PowerConnect Power, Adapter, Aux In Cable, and FM Direct Adapter

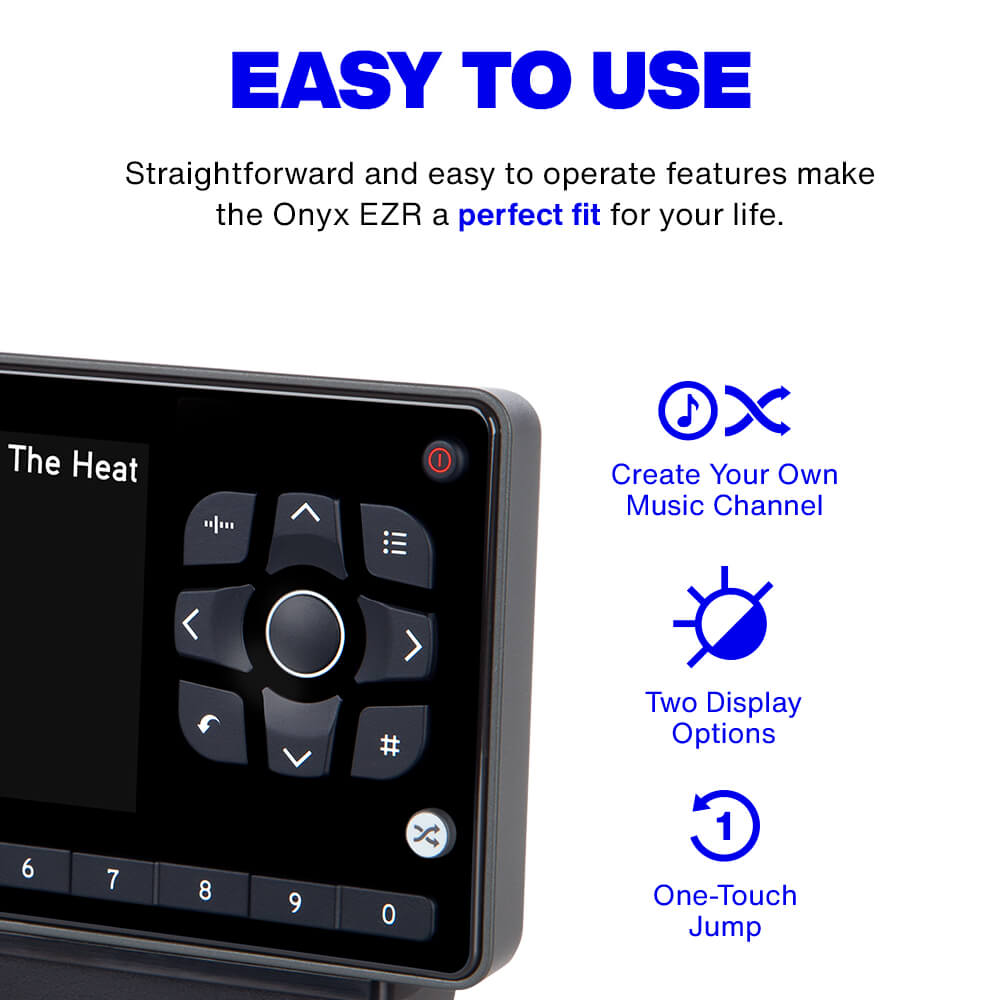

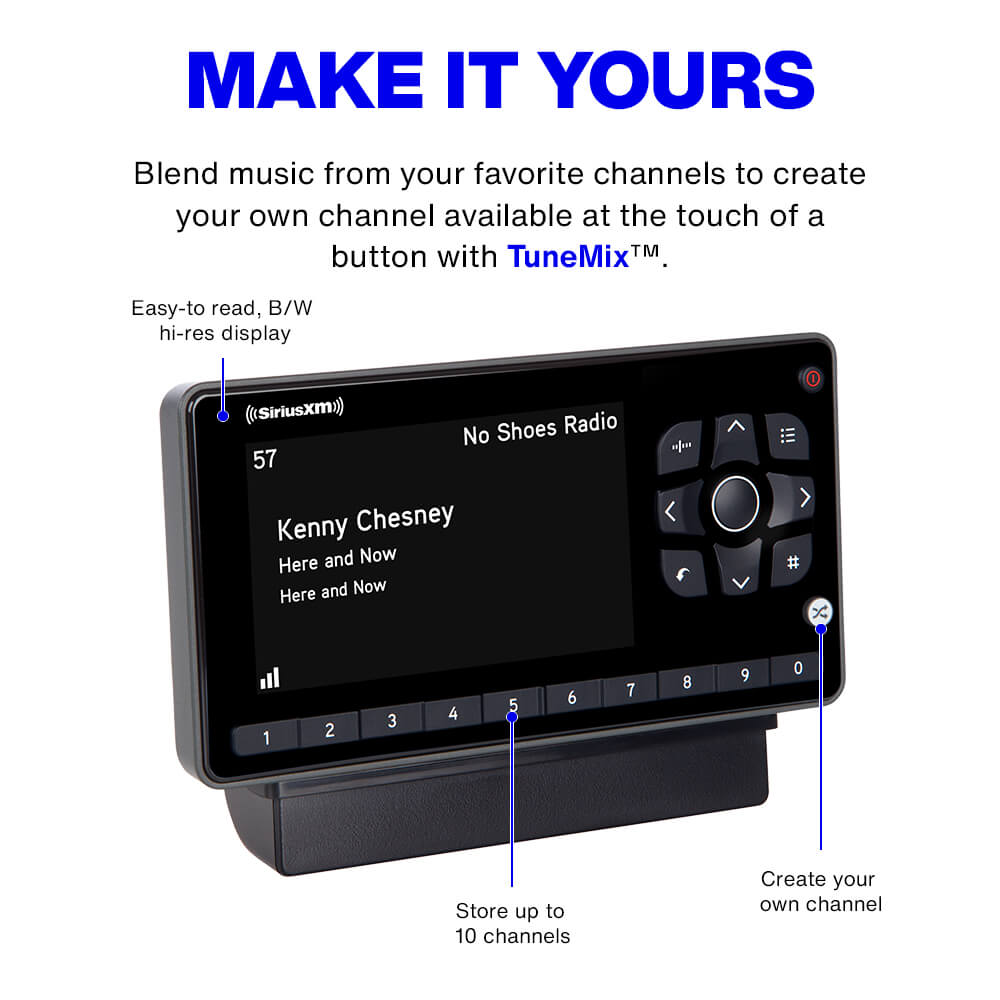

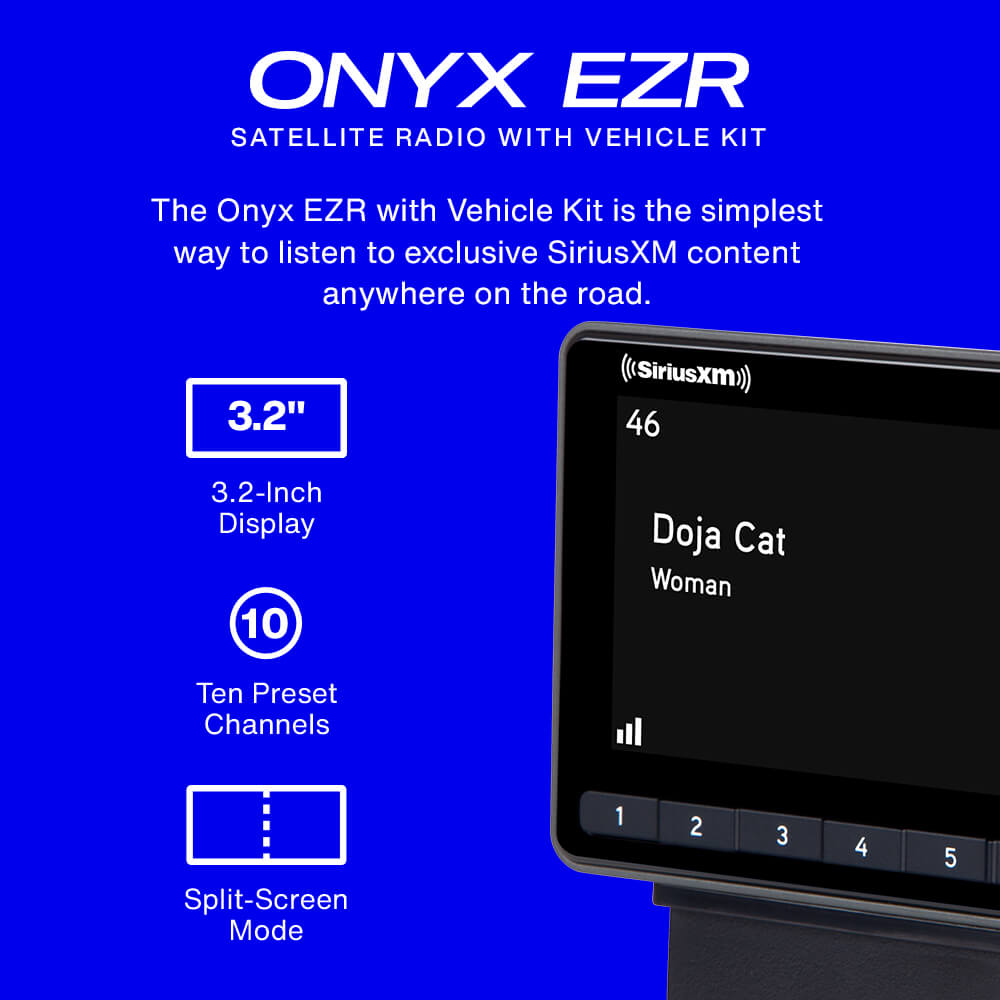

- View artist or show name, song or program title and content or channel information on an easy-to-read large high-resolution display
- Store up to 10 of your favorite channels for one touch access
- Create your own music channel that’s a blend of channels with TuneMix™
- Easily lock and unlock channels with mature content
- Browse what’s playing on other channels while listening to the current one
- One-Touch Jump™ to the previous channel to which you were listening
- Listen in multiple vehicles, at home, in the office or outdoors - all with just one subscription
- Hear SiriusXM™ through your existing vehicle stereo with easy, do-it-yourself installation
- Store and easily access FM presets to optimize PowerConnect™ performance
- Works on the XM network
Package Bonus: This kit comes with 3 different power options our USB Power Adapter the 5V Direct Power Adapter and the SXDPIP1 PowerConnect Power Adapter giving you three different options to power the receiver.
- Onyz EZR SiriusXM Radio Receiver
- Bluetooth SiriusXM Radio Dock
- SXDPIP1 PowerConnect Vehicle Power Adapter
- USB Power Adapter
- Direct Power Adapter
- Magnetic SiriusXM Radio Vehicle Antenna
- Adhesive Dash Mount
- AC Vent Mount
- AUX Cable (optional)
- Quick Start Guide
- User Manual
- SXSD2 Portable Boombox
- SXDH3 Portable Home Kit
- All SiriusXM™ Radio Antennas
- Mounts and Accessories
- SiriusXM™ 5V Hardwired Power Adapter
- System Power Requirements: 9-16 V DC, 500 mA (max)
- Operating Temperature: -4°F to +140°F (-20°C to +60°C)
- Audio Output: 1.0 Vrms (max)
- Onyx EZR Radio Dimensions: 5.0 in (W) x 2.7 in (H) x 0.72 in (D) (128 mm (W) x 68 mm (H) x 18.5 mm (D))
- Receiver Weight: 3.9 oz (111 g)
- Bluetooth Dock Dimensions: 4.0 in (W) x 2.6 in (H) x 1.2 in (D) (102 mm (W) x 65 mm (H) x 31 mm (D)
- Dock Weight: 1.6 oz (46 g)
- Dock Antenna Connector: SMB male
- PowerConnect Power Adapter Dimensions: 3.7 in (W) x 1.7 in (H) x 1.3 in (D) (94 mm (W) x 43 mm (H) x 34 mm (D))
- Power Adapter Weight: 2.4 oz (69g)
- Vehicle Antenna Type: SiriusXM Magnetic Mount
- Antenna Connector: SMB female, right angle
- Antenna Cable Length: 23 ft (7.0 m)
- Aux In Cable Connectors: 1/8 in (3.5 mm) stereo male to 1/8 in (3.5 mm) stereo male
- Aux Cable Length: Approximately 4 ft (1.2 m)(optional if not using Bluetooth for audio)
Frequently Asked Questions (FAQs)
Q: Who should use this SiriusXM Bluetooth Vehicle Dock?
A: Customers who have a vehicle with a stereo/headunit which has Bluetooth capability but does NOT have an auxiliary input (AUX).
- If your vehicle stereo/headunit has an AUX input you don't need the Bluetooth Vehicle Dock. Use the AUX connection for the SiriusXM audio.
Q: Which vehicle stereos/headunits is the Bluetooth Vehicle Dock compatible with?
A: Most vehicle stereos/headunits with Bluetooth, model year 2016 and newer, are compatible, if they can support two simultaneous Bluetooth cellphone connections.
Important! Before purchasing the Bluetooth Vehicle Dock check that your vehicle stereo/headunit can do following:
- You can connect two different cellphones to your vehicle stereo/headunit at the same time, where one cellphone is connected to the vehicle stereo/headunit for the phone and the other cellphone is connected to the vehicle stereo/headunit as a media device.
- If your stereo/headunit can support two simultaneous Bluetooth cellphone connections as described above, then your stereo/headunit is compatible with the Bluetooth Vehicle Dock and your stereo/headunit will switch between the Bluetooth Vehicle Dock and your phone for calls.
- If your stereo/headunit cannot support two simultaneous Bluetooth cellphone connections as described above, then your stereo/headunit is probably not compatible with the Bluetooth Vehicle Dock. While you may be able to connect the Bluetooth Vehicle Dock to your stereo/headunit for the SiriusXM audio, you will not be able to make hands-free cellphone calls using the stereo/headunit while the Bluetooth Vehicle Dock is connected via Bluetooth for SiriusXM audio.
Q: What is included with the Bluetooth Vehicle Dock?
A: The Bluetooth Vehicle Dock only includes the Bluetooth Vehicle Dock and a Quick Start Guide.
- No SiriusXM radio or other accessories are included because you will use your current SiriusXM radio and accessories you already have, or you must purchase those separately.
Q: What do I need to use this Bluetooth Vehicle Dock?
A: A SiriusXM satellite radio with vehicle kit, which includes all of the following:
- XM satellite radio receiver such as models: Edge, Onyx, Onyx EZ, Onyx EZR, OnyX Plus, Xpress RCi
- Satellite Radio Antenna
- PowerConnect Power Adapter, USB Power Cable, or 5VHOMEPC AC Power Adapter
- Vent mount and dash mount with 4 screws or other mounting solution with the 4 screm AMPS patter or one of our mounting plates
Q: Does the Bluetooth Vehicle Dock work with the existing vent, dash, or windshield mount for my currently installed dock?

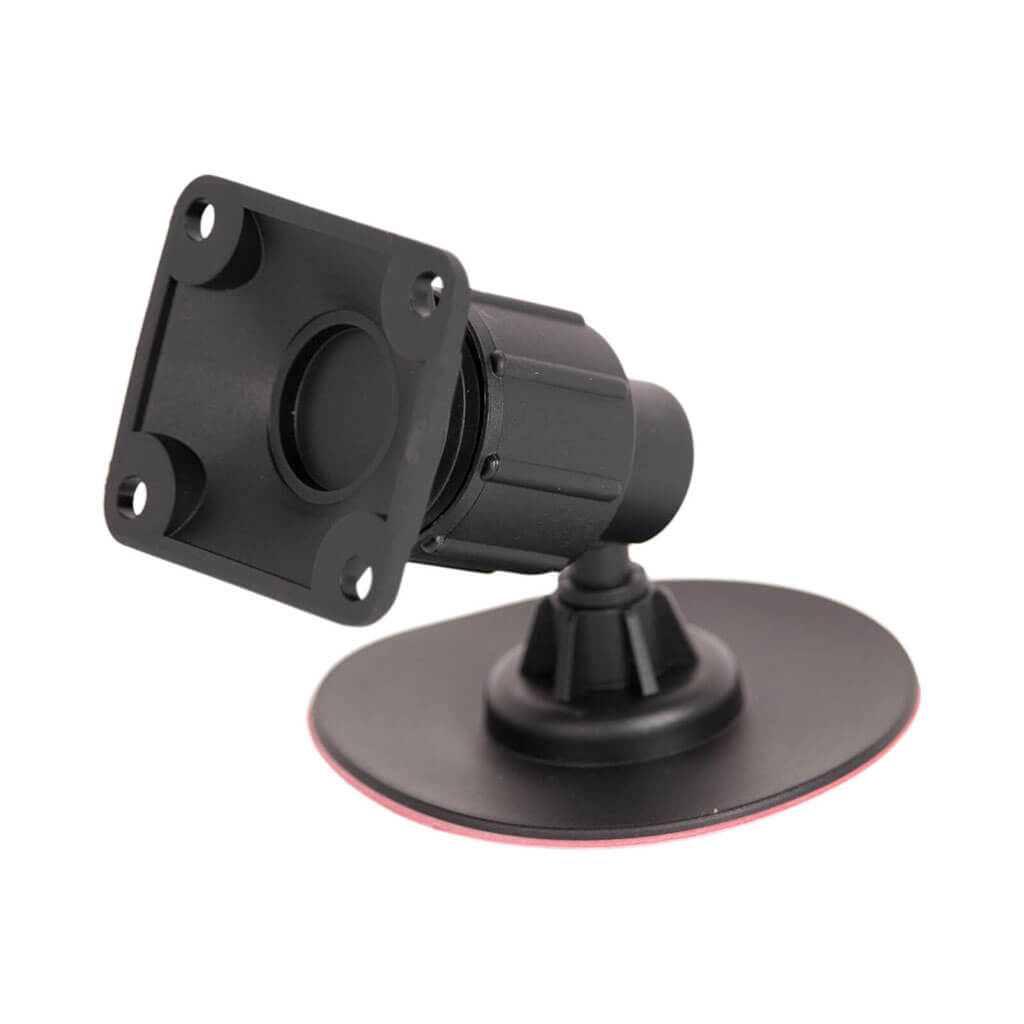

A: Yes, The Bluetooth Vehicle Dock uses the exact same mounting method as the SiriusConnect Vehicle Dock, and will work with the existing vent, dash, and windshield mounts that attach with 4 screws to your existing vehicle dock.
- The Bluetooth Vehicle Dock is NOT compatible with T-mount style vent and dash mounts.
- But you can purchase an adapter plate and screw pack that will allow your mount to connect to the bluetooth receiver.
Q: Which SiriusXM satellite radios is the Bluetooth Vehicle Dock compatible with?
A: The Bluetooth Dock is compatible with XM satellite radios that receive the XM high-band satellite signal. Examples are: Edge, Onyx, Onyx EZ, Onyx Plus, Onyx EZR, and Express RCi satellite radios.
- The Bluetooth Vehicle Dock is NOT compatible with the legacy Sirius branded satellite radios that receive the Sirius low-band satellite signal. Examples are: Starmate 8 and Stratus 7 satellite radios.
- The Bluetooth Dock is NOT compatible with the Sirius XM Mirge satellite radio.
Ford Factory Radios and Ford Sync
It is important to note that if you have a Ford vehicle with Sync or a Ford factory installed radio there is a specific process to add the Bluetooth Dock to the stereo system. We highly recommend reading our knowledge base article before purchasing the dock. Click Here to view the article.
SiriuXM Radio Programming SiriusXM offers a wide variety of music, sports, talk, news, comedy, and more. There’s always something good playing on SiriusXM. Click the image below to learn more about SiriusXM subscription packages and to see all the great channels included in every category.
