SiriusXM OnyX EZR Motorcycle Bundle with Protective Case

We have bundled the SiriusXM™ onyX EZR receiver with our SiriusXM™ Radio motorcycle installation kit. The EZR receiver features a crystal-clear display with easy-to-use directional buttons on the front of the receiver, and is one of the most feature-rich receivers SiriusXM™ has released. The onyX EZR is a great value for the money, and coupled with the motorcycle kit, it allows you to take your music with you anywhere on the open road.

Want to make this a Bluetooth Kit? Just add the SXBTD1V1 SiriusXM Radio Bluetooth Dock to your order.

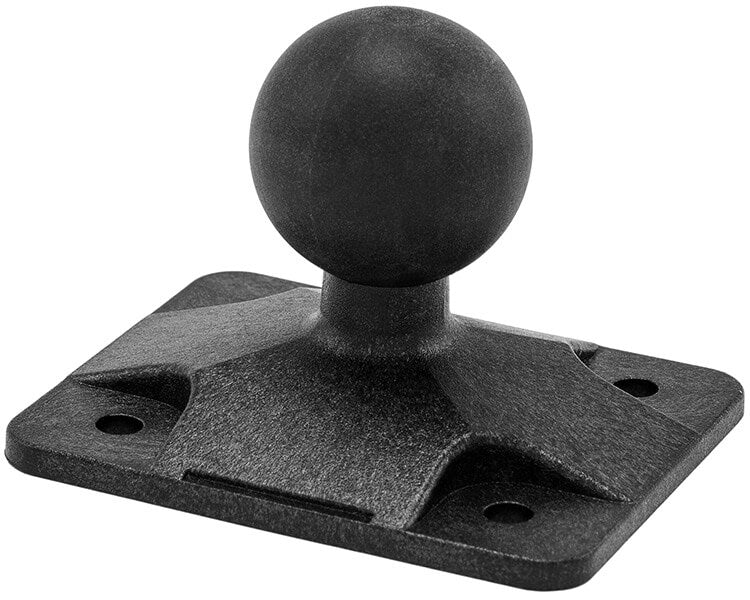

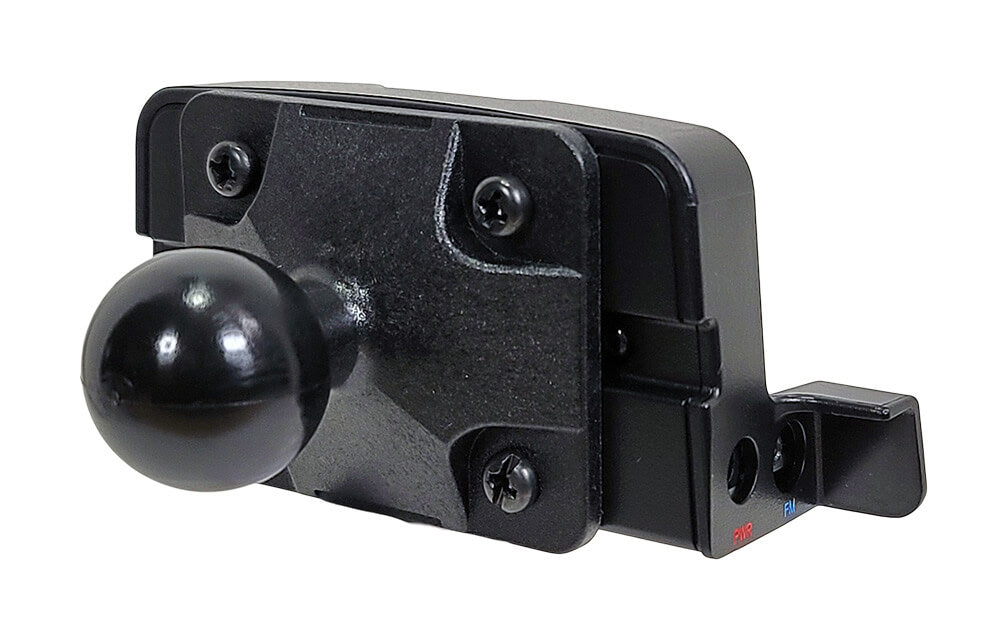

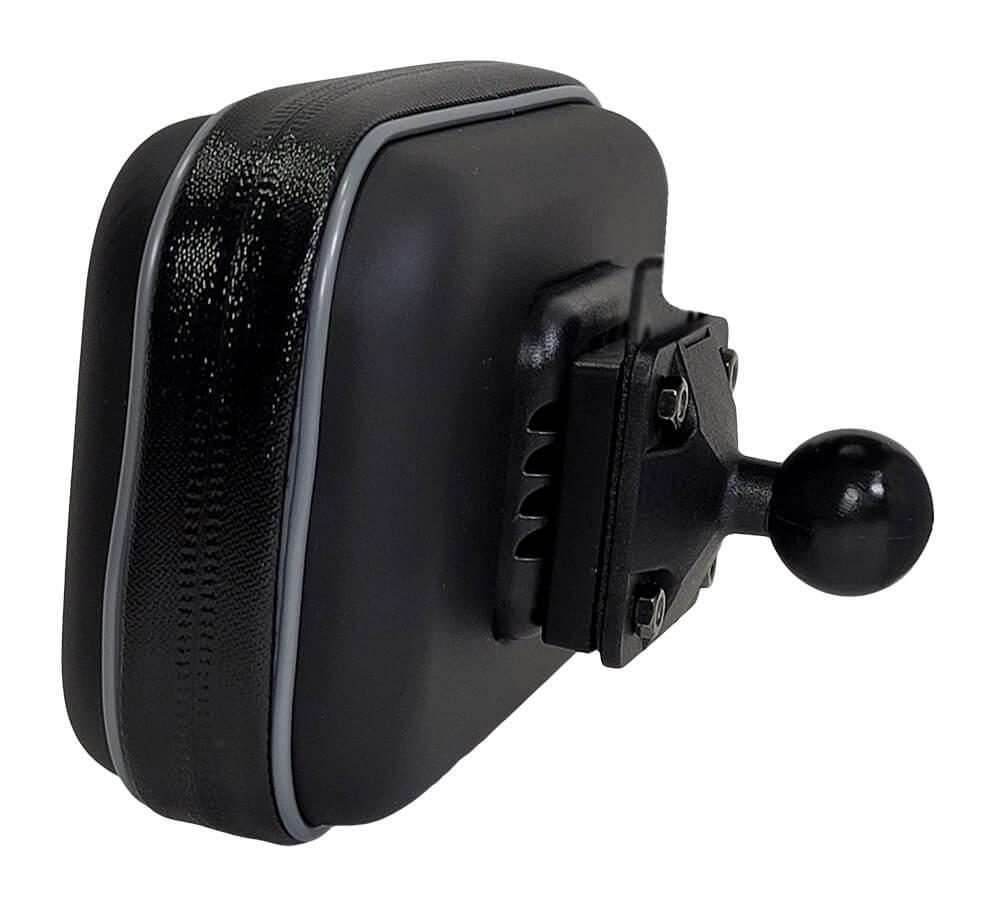

RAM Mount Compatible - Have a RAM Mount? We have you covered. This kit includes a 25 MM RAM Mount Ball Adapter with the 4 screw amps pattern to connect to dock or case included in this kit.

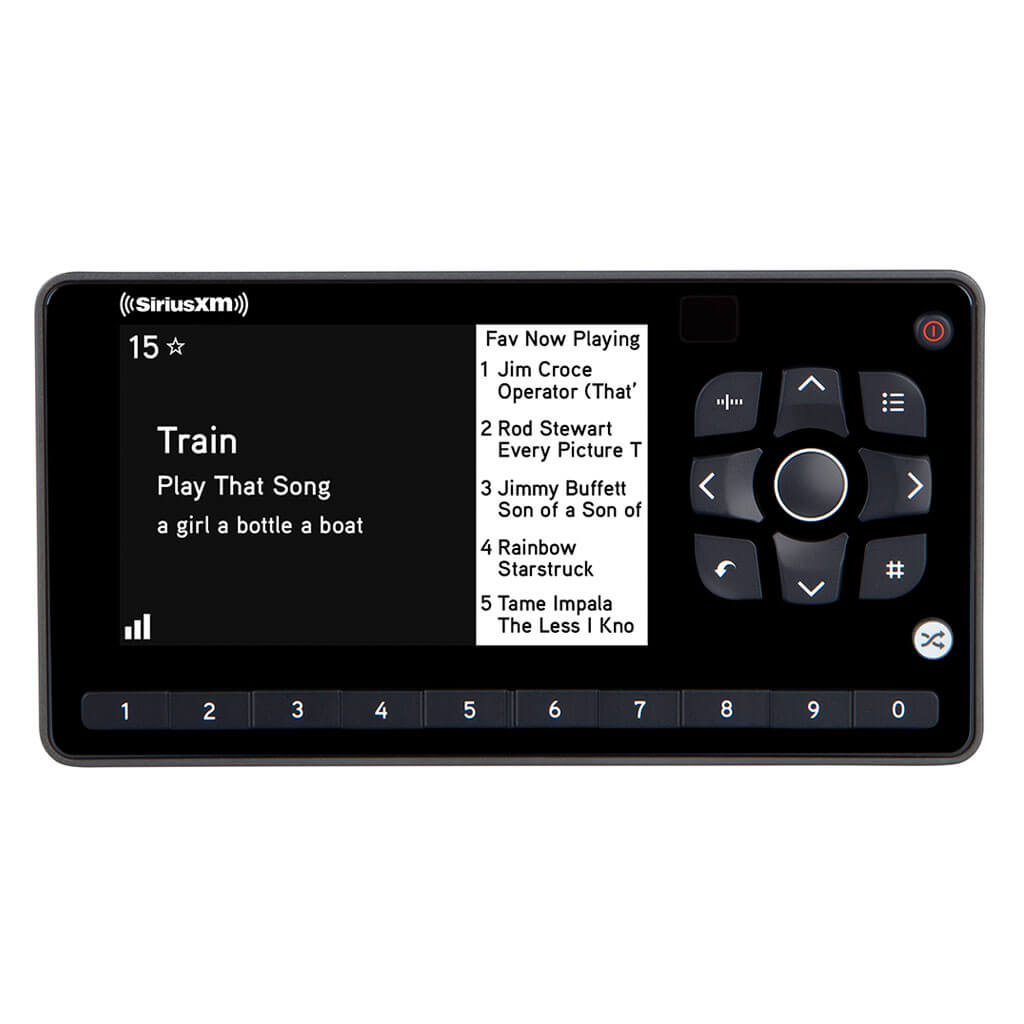

Special Features of the OnyX EZR Receiver

• TuneMix™ allows you to create your own music channel that’s a blend of different channels
• One-Touch Jump™ to the previous channel you were listening to
• Easy-to-read, large high-resolution display
• Browse what’s playing on other channels without changing stations
• Store and access FM presets
• Store up to 10 of your favorite channels for one touch access
• Listen in multiple vehicles, at home, in the office or outdoors - all with just one subscriptionEasy, do-it-yourself installation
• View artist or show name, song or program title and content or channel information on an easy-to-read large high-resolution display
• Hear SiriusXM™ through your existing motorcycle stereo or helmets headset with easy, do-it-yourself installation
• Use the supplied AUX cable for the best sound quality or use the PowerConnect cigarette lighter power adapter for wireless FM transmission

New Antenna Features

• Filters out wifi and 4G LTE cellular signals which interfere with SiriusXM signals
• New cone design with reinforced slots to give the cone more strength
• Stronger amplifier to pull in signals under trees
• Improved cable seal and cable support
• New watertight construction
• Stronger more robust low loss cable
• New gold plated connectors
• Meets the new specifications for SiriusXM Radio antenna reception

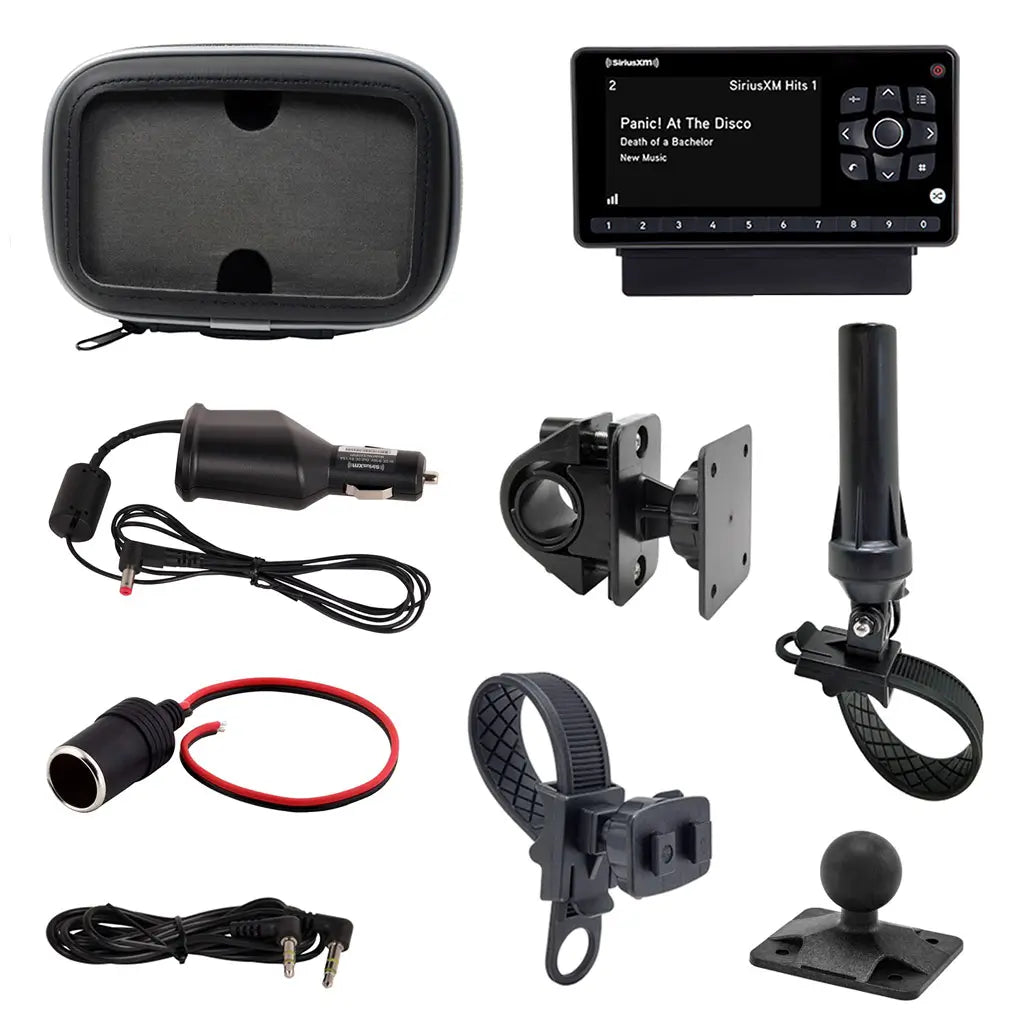

Package Includes

• Onyx EZR SiriusXM Radio Portable Receiver

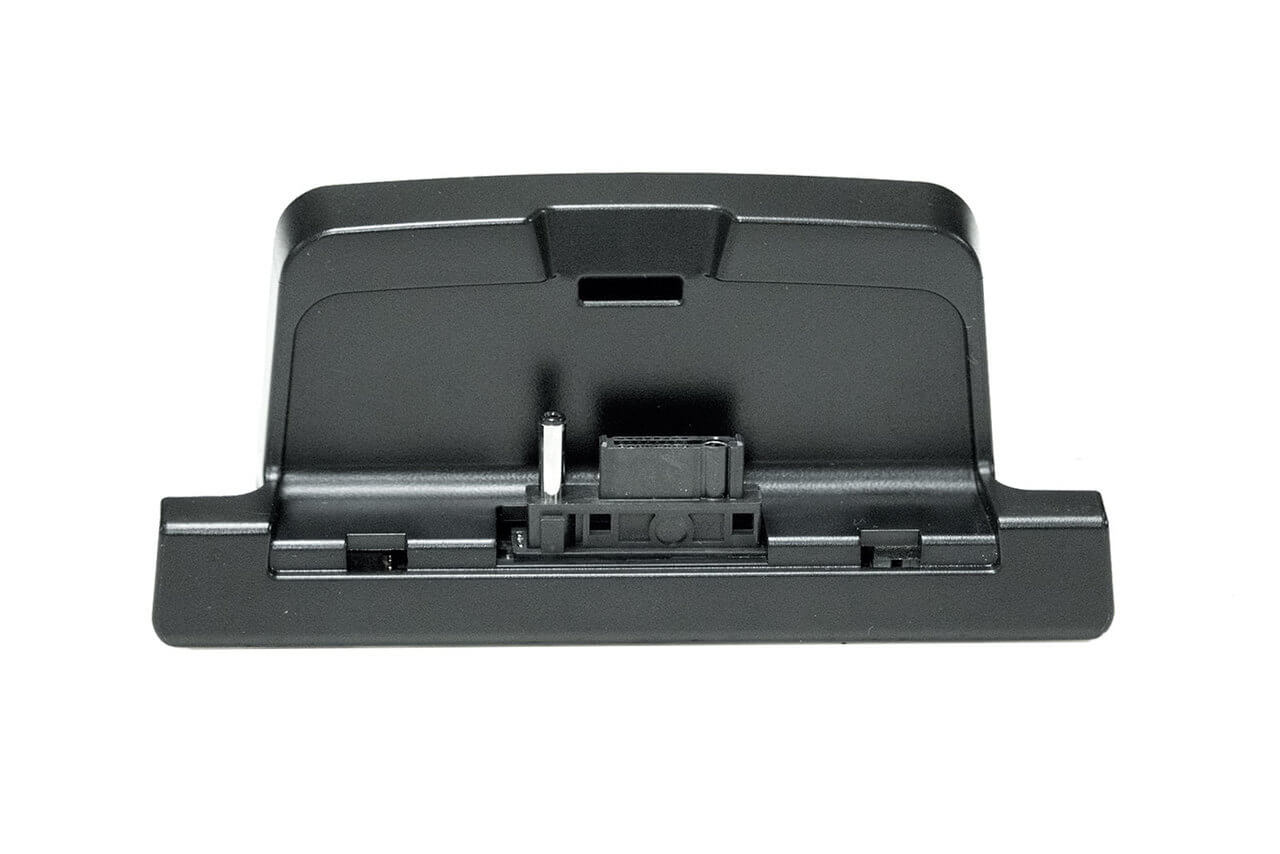

• SiriusM™ PowerConnect™ Vehicle Cradle SXVD1

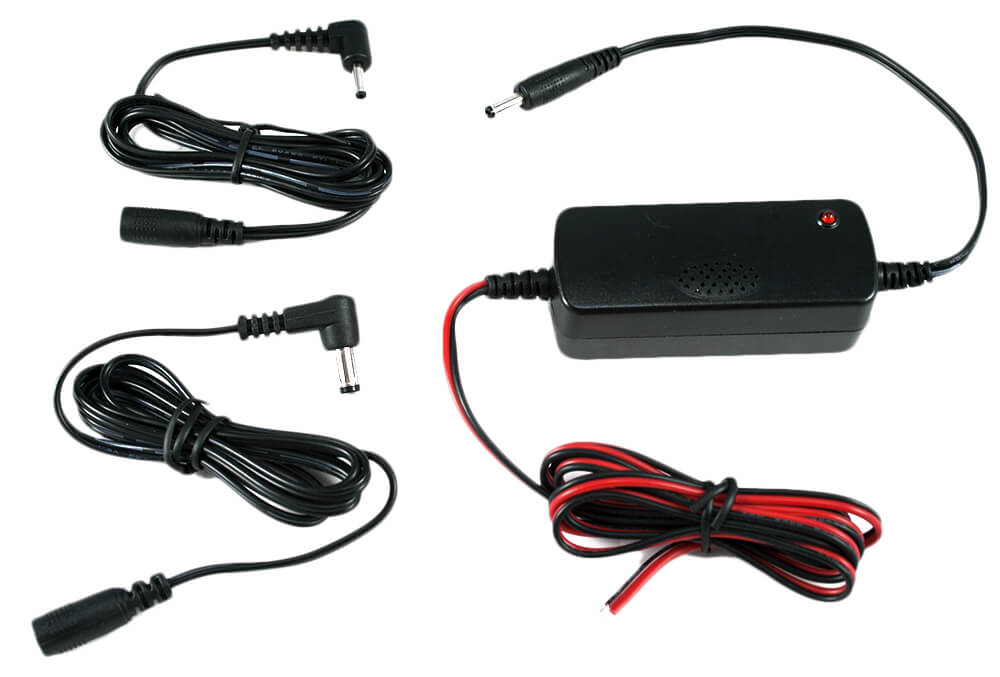

• SiriusXM™ 5 Volt Hardwired Power Adapter
• Auxiliary Cable

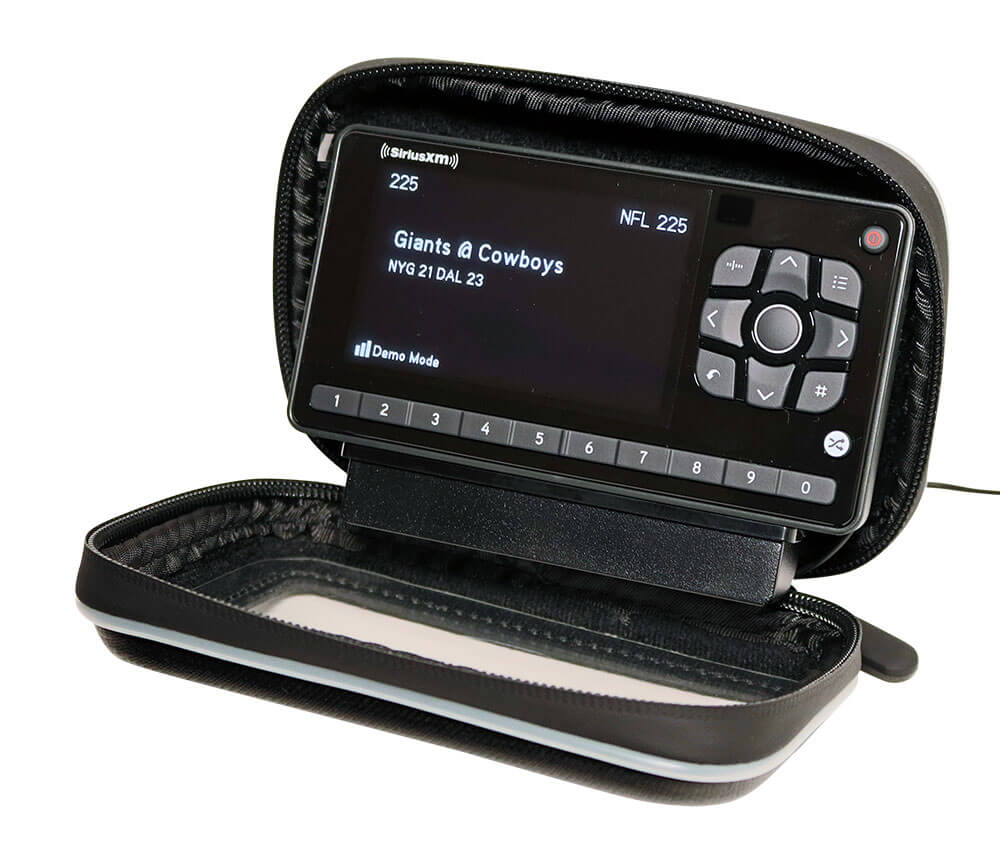

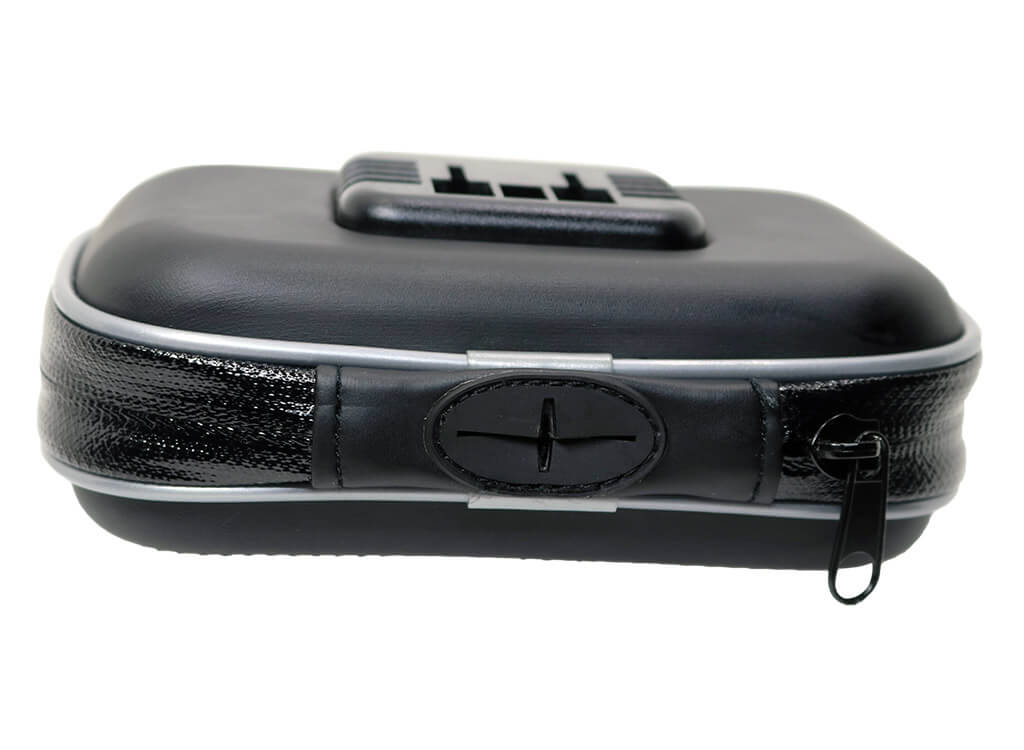

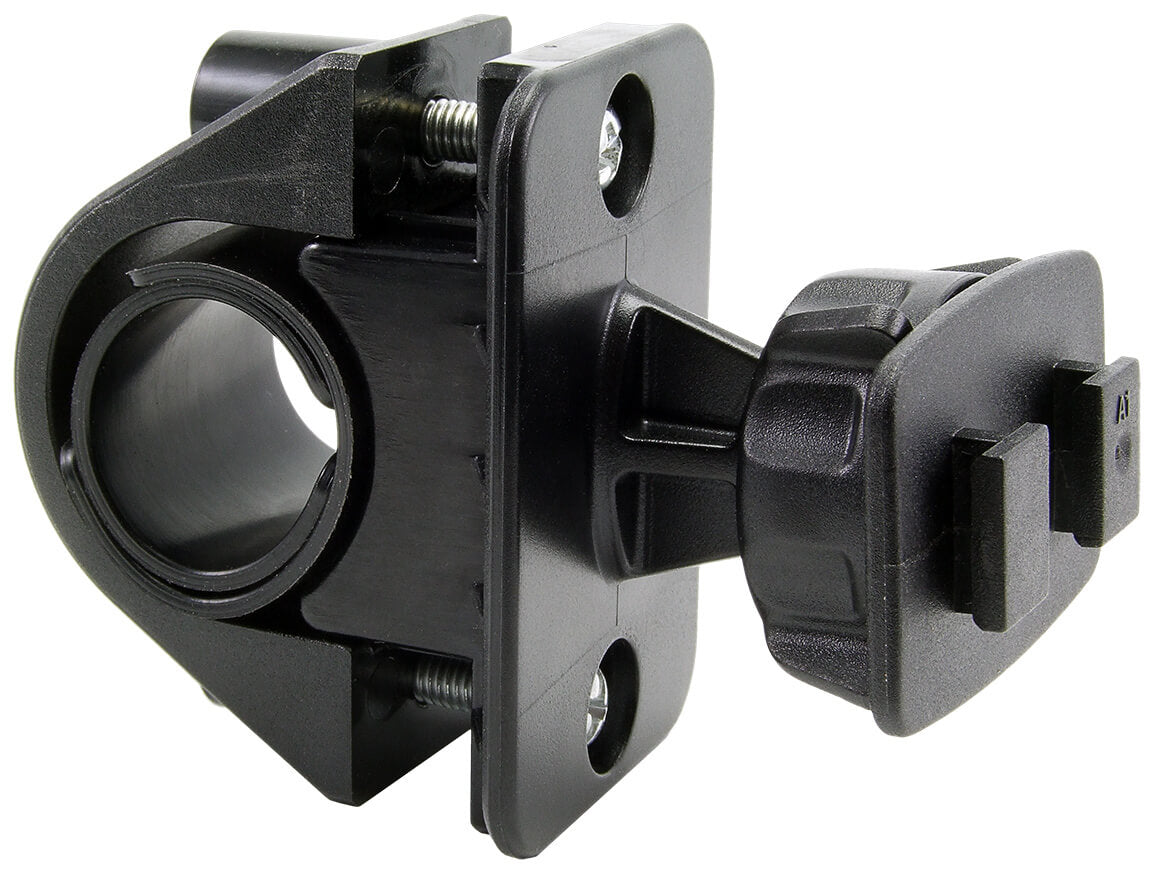

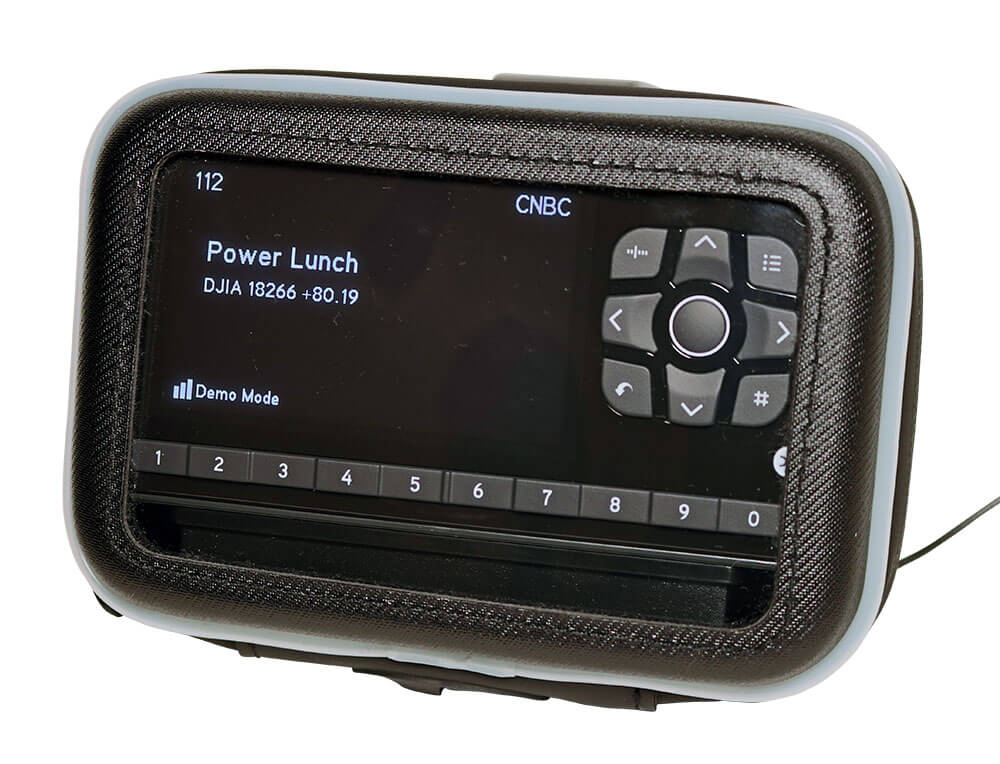

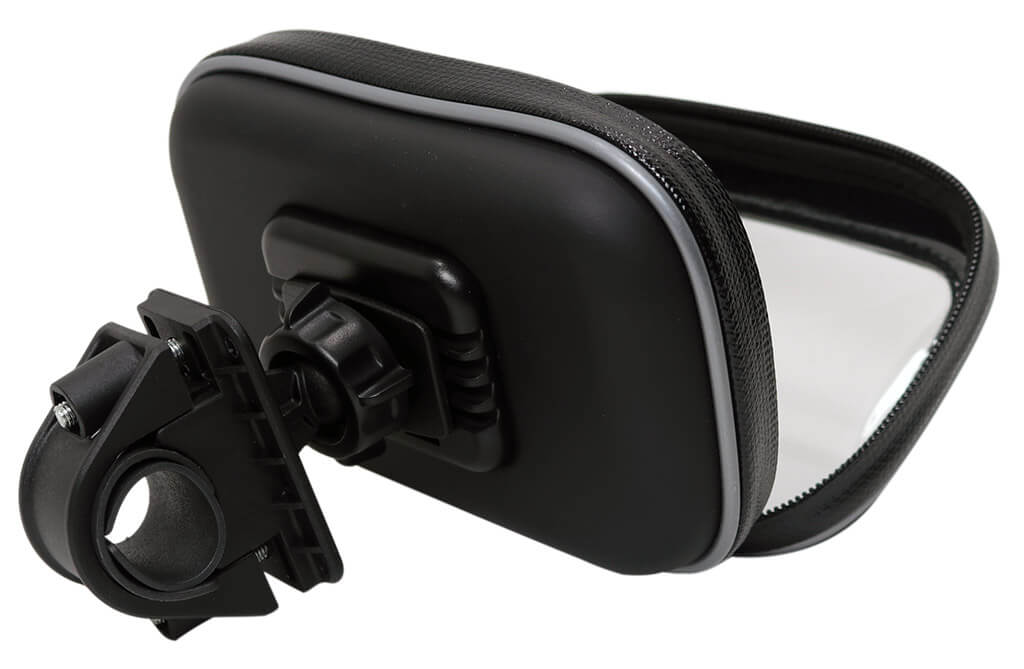

• SiriusXM™ Radio Motorcycle Mount with Protective Case
• RAM Mount Ball Adapter (25 MM)

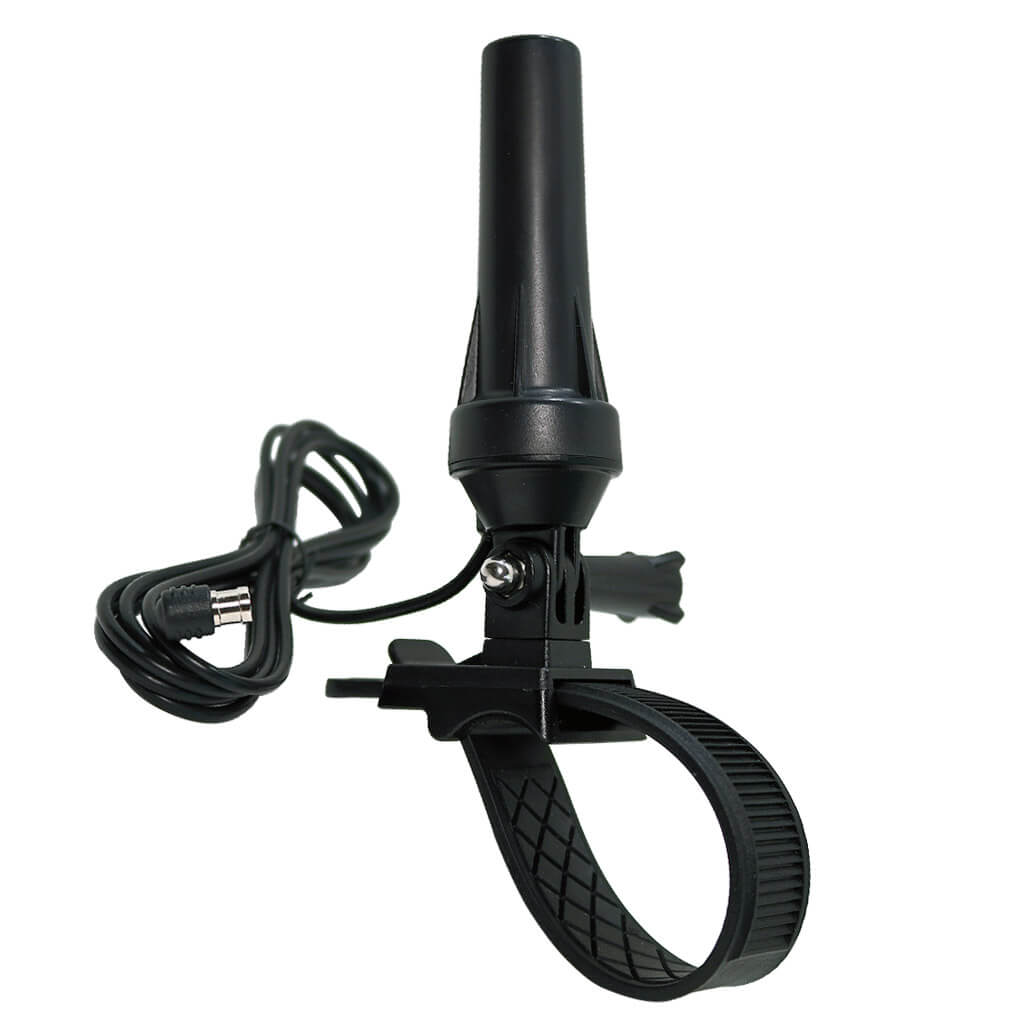

• SiriusXM™ Radio Motorcycle Antenna
• Adhesive Pads
• Mounting Screws

Compatible Equipment

• SXSD2 Portable Boombox
• SXBTD1V1 Bluetooth Vehicle Cradle

• SXDH3 Portable Home Kit
• All SiriusXM™ Radio Antennas
• Mounts and Accessories
• SiriusXM™ 5V Hardwired Power Adapter

Technical Specifications

• System Power Requirements: 9-16 V DC, 500 mA (max)
• Operating Temperature: -4°F to +140°F (-20°C to +60°C)
• Audio Output: 1.0 Vrms (max)
• Onyx EZR Radio Dimensions: 5.0 in (W) x 2.7 in (H) x 0.72 in (D) (128 mm (W) x 68 mm (H) x 18.5 mm (D))
• Receiver Weight: 3.9 oz (111 g)
• PowerConnect Vehicle Dock Dimensions: 4.0 in (W) x 2.6 in (H) x 1.2 in (D) (102 mm (W) x 65 mm (H) x 31 mm (D)
• Dock Weight: 1.6 oz (46 g)
• Dock Antenna Connector: SMB male
• PowerConnect Power Adapter Dimensions: 3.7 in (W) x 1.7 in (H) x 1.3 in (D) (94 mm (W) x 43 mm (H) x 34 mm (D))
• Power Adapter Weight: 2.4 oz (69g)
• Antenna Type: Motorcycle Handlebar Mount Mast Antenna

• Antenna Connector: SMB female, right angle
• Antenna Cable Length: 6 FT

• Aux In Cable Connectors: 1/8 in (3.5 mm) stereo male to 1/8 in (3.5 mm) stereo male
• Aux Cable Length: Approximately 4 ft (1.2 m)

Documentation

• SiriusXM™ Radio onyX EZR User Guide
• SiriusXM™ Radio onyX EZR Quick Start Guide
• SMFGX1 Installation Instructions (PDF)
