8-Way Splitter System for Sirius and XM Radio Receivers

This 8-way Splitter system was designed for up to eight different connections.

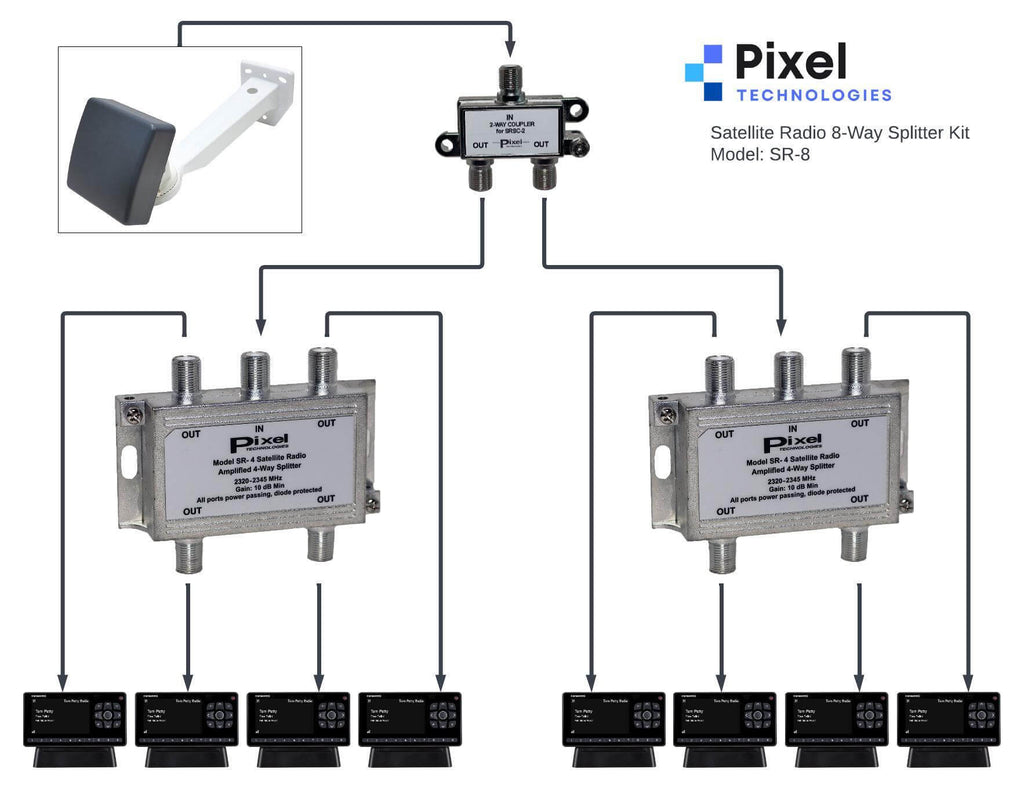

• The 2-Way coupler joining two 4-Way Amplified Splitters comprise this system.
• Connect eight different units to one satellite radio antenna with this signal splitter.
• SiriusXM radios are great for businesses or parties and events.

Do you own a business or host events that could benefit from commercial-free audio entertainment? Whether it is syncing a music station in your hotel lobby, restaurant, and other guest spaces or hosting a fundraising event that needs to connect multiple rooms, an 8-way signal splitter is an easy way to get the job done. Satellite Radio Superstore® also offers signal splitters of different sizes for your many needs..

Product Overview

• One Antenna to 8 XM Radio Receivers
• Uses RG-6 Cable
• Run cable to desired length.
• Designed to Work Specifically With XM Radio Receivers
• Indoor/Outdoor Use

Technical Specs

• Model #: SR-8
• Manufacturer: Pixel Technologies
• Dimensions:
• Weight: 5 lbs.

Component Specs:

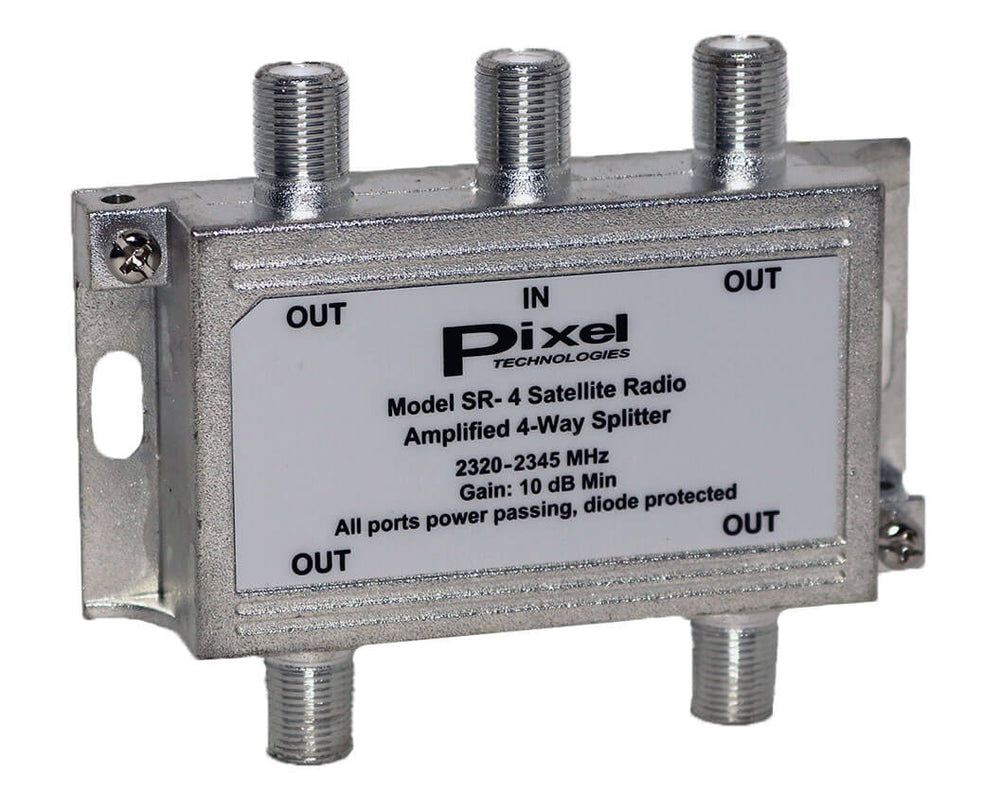

4-Way Splitter

• Splitter Gain at 2.335 GHz (4.5 VDC):8 dB
• Max noise figure:3 dB
• Max input signal:-10 dBm (with supplied db attenuator @ 4.5 VDC
• Will operate outdoors: Yes, from -40 degrees C to + 60 degrees C
• Current consumption:40-100 milliamps
• DC power passing:All ports diode protected
• DC voltage drop (output to input):0.5 VDC typical

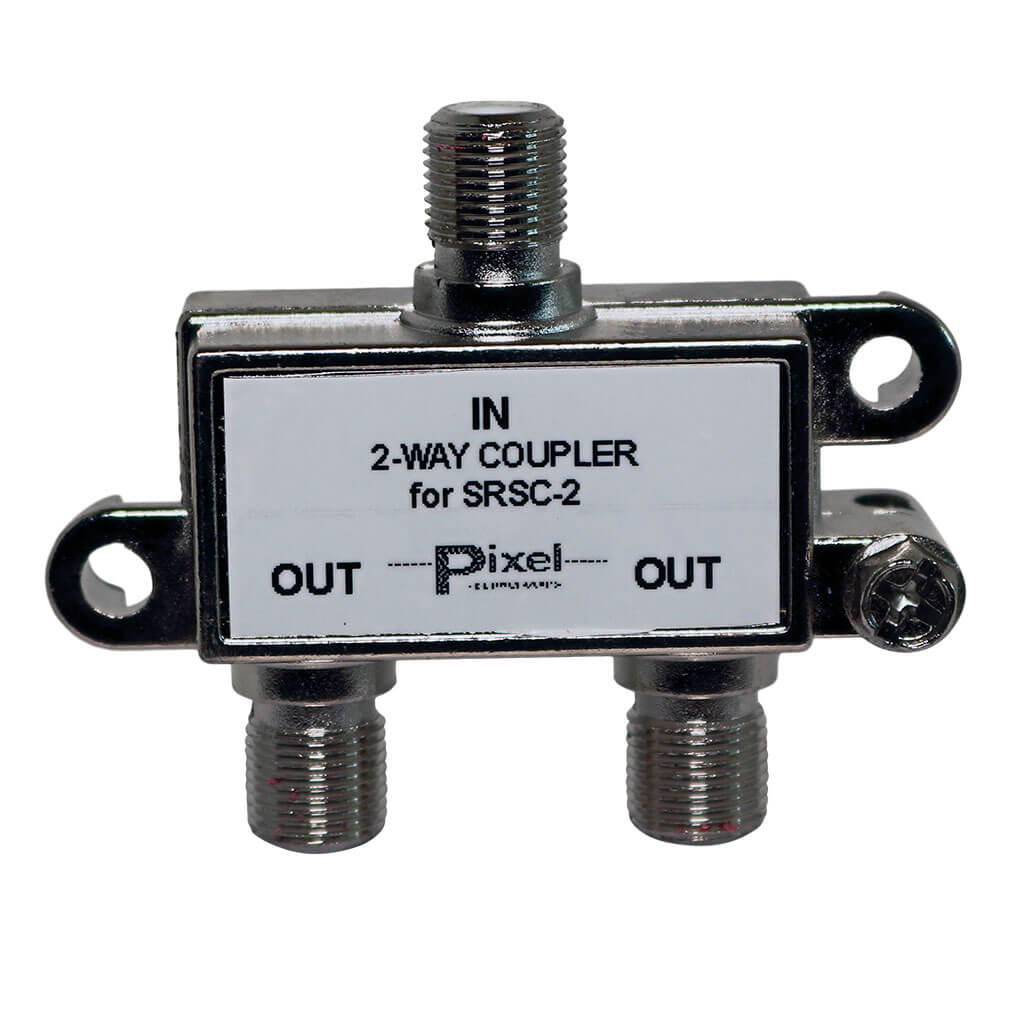

2-Way Coupler

• Splitter Loss at 2.335 GHz:-4.5 dB max
• Will operate outdoors:Yes, from -40 degrees C to + 60 degrees C
• DC power passing:All ports, both directions

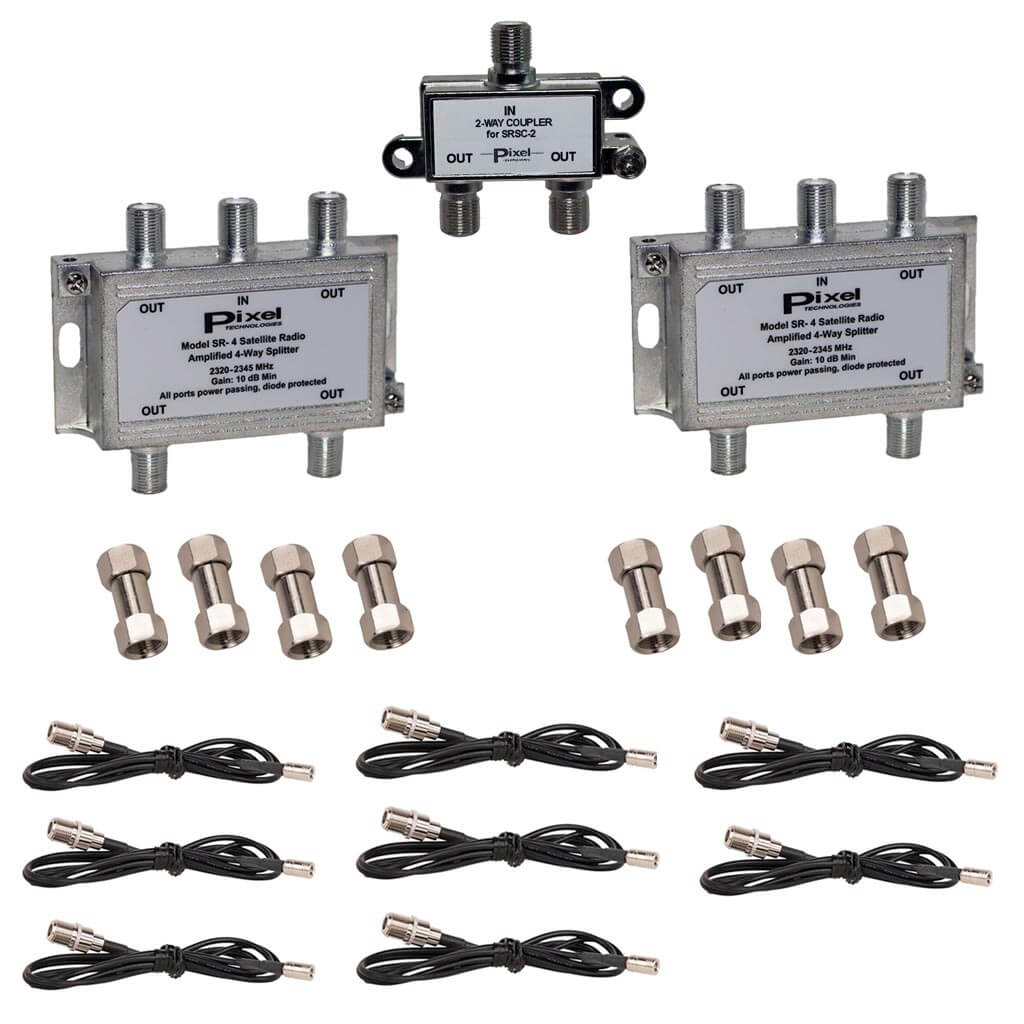

Package Includes

• (2) Amplified Splitters

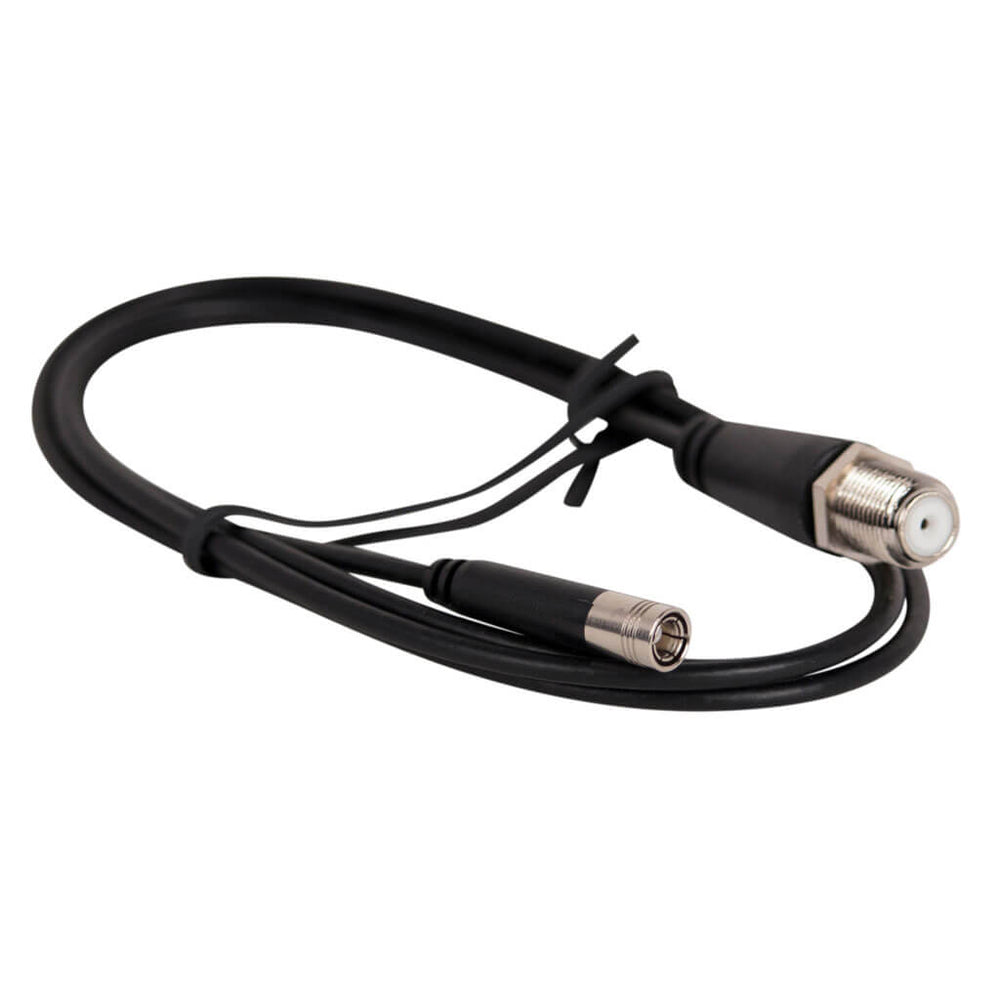

• (8) F-female to SMB-plug cable (3 feet)

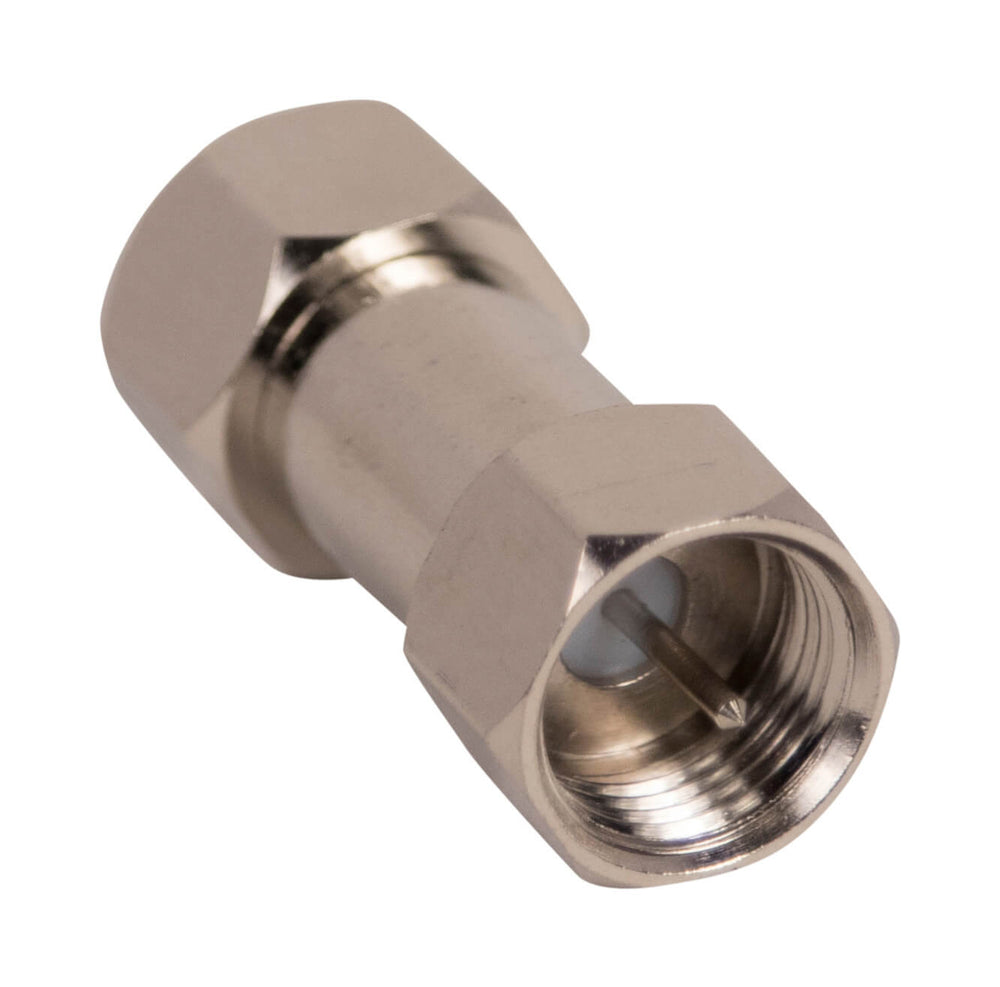

• (8) F-71 F-male to F-male coupler
• (2) 20 dB power passing attenuator
• (2) SMB-jack to F-male adapter
• (4) Mounting Screws
• (1) 2-way Coupler
• (2) 12-inch RG6 Cables

Download Product Documentation, Installation Guides & Manuals

• SR-4 Amplified 4-Way Splitter Kit Product Manual (PDF)
• SRSC-2 Passive 2-Way Splitter Coupler Kit Product Manual (PDF)
