Two-Way Passive Satellite Radio Splitter Coupler Kit

Save $10.00

Sale price$9.95 Regular price$19.95
In stock

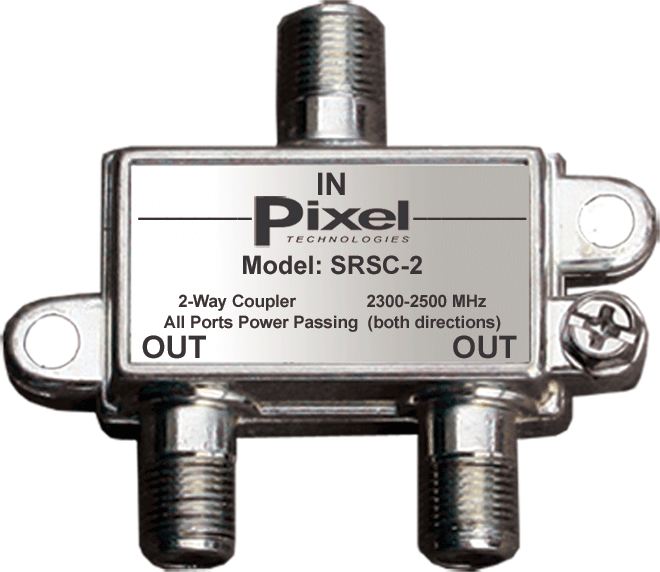

Model SRSC-2: Two-Way Passive Satellite Radio Splitter Coupler Kit This kit includes the splitter and two cables to permit operation from a single antenna of two SR-4 splitters connected to multiple (up to eight) satellite radios. The loss of this passive splitter at 2.35 GHz is compensated by the excess gain (8 dB min) of the SR-4. The resulting 8-way network exhibits a gain of 3.5 dB (minimum).

This Coupler is optimized for the Pixel SR-4 for use in configuring 8-way splitter networks. This splitter is power passing on all ports (in both directions) and is not recommended for use as a two-way independent splitter, as damage to the radios wil result. It is designed only for use in combining other diode protected splitters (such as the SR-4) which are connected to the radios and prevent cross coupling of the DC bias voltages at the output of each radio.

This coupler when used with two SR-4 splitters will permit RG-6 cable runs from the SR-4 output to the radio of 30 feet. To extend these cable runs, place a Pixel Model SBA-1 line amplifier at the input of the SRSC-2 coupler. For example on amplifier will permit cable runs of up to 150 feet.
Please Note: This is NOT a splitter. It is a coupler. A coupler is used to join 2 separate splitter kits off of the same line.

Package Includes

  • Passive two-way coupler / signal splitter (1)
  • 12 inch RG-6 cables (F-male to F-male) (2)

Product Specifications

  • Splitter Loss at 2.335 GHz: -4.5 dB max
  • Will operate outdoors or indoors over a temperature range of:- 40 degrees Celsius to +60 degrees Celsius
  • DC power passing:DC power passing, all ports, both directions (no diode protection)

Technical Specifications

  • Model #: SRSC2
  • Manufacturer: Pixel
  • Dimensions: 1.65" W x .97" L x .64" H
  • Shipping Weight: 2 lbs.
