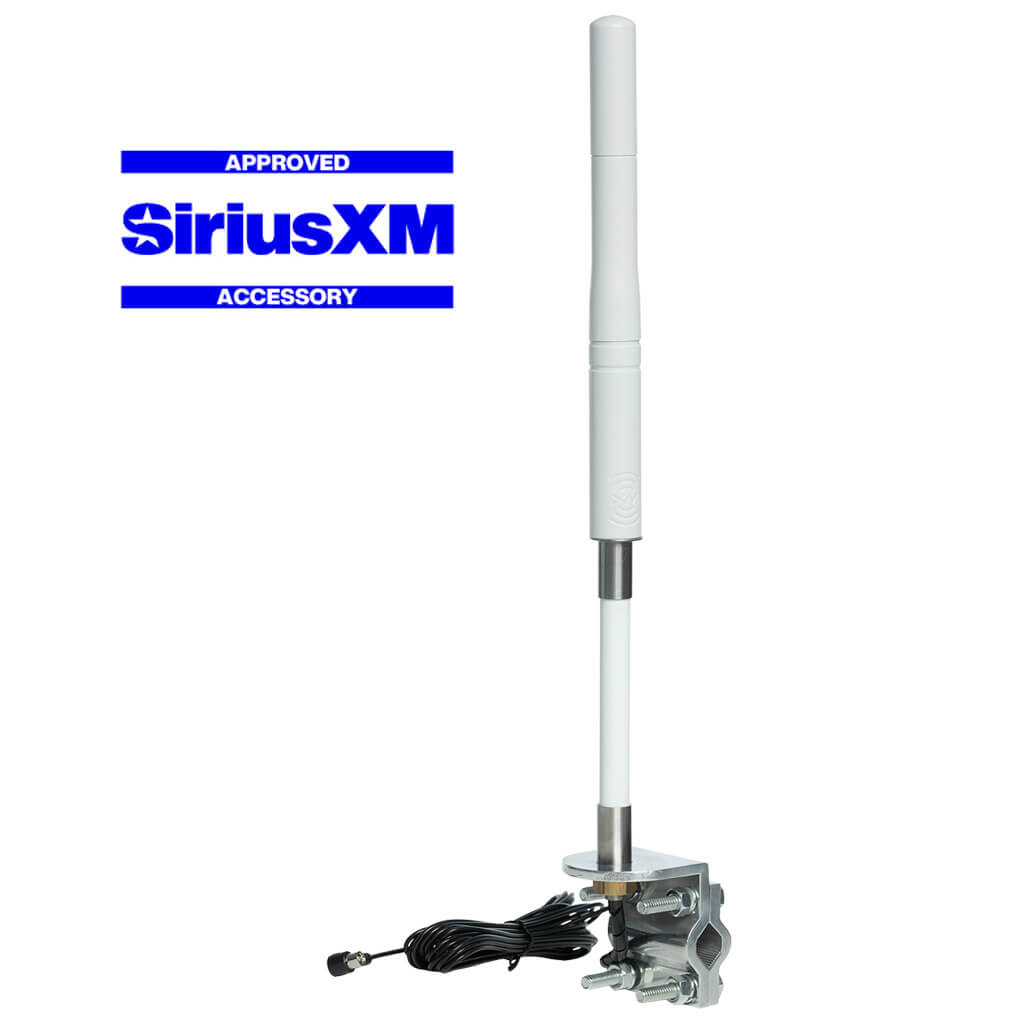

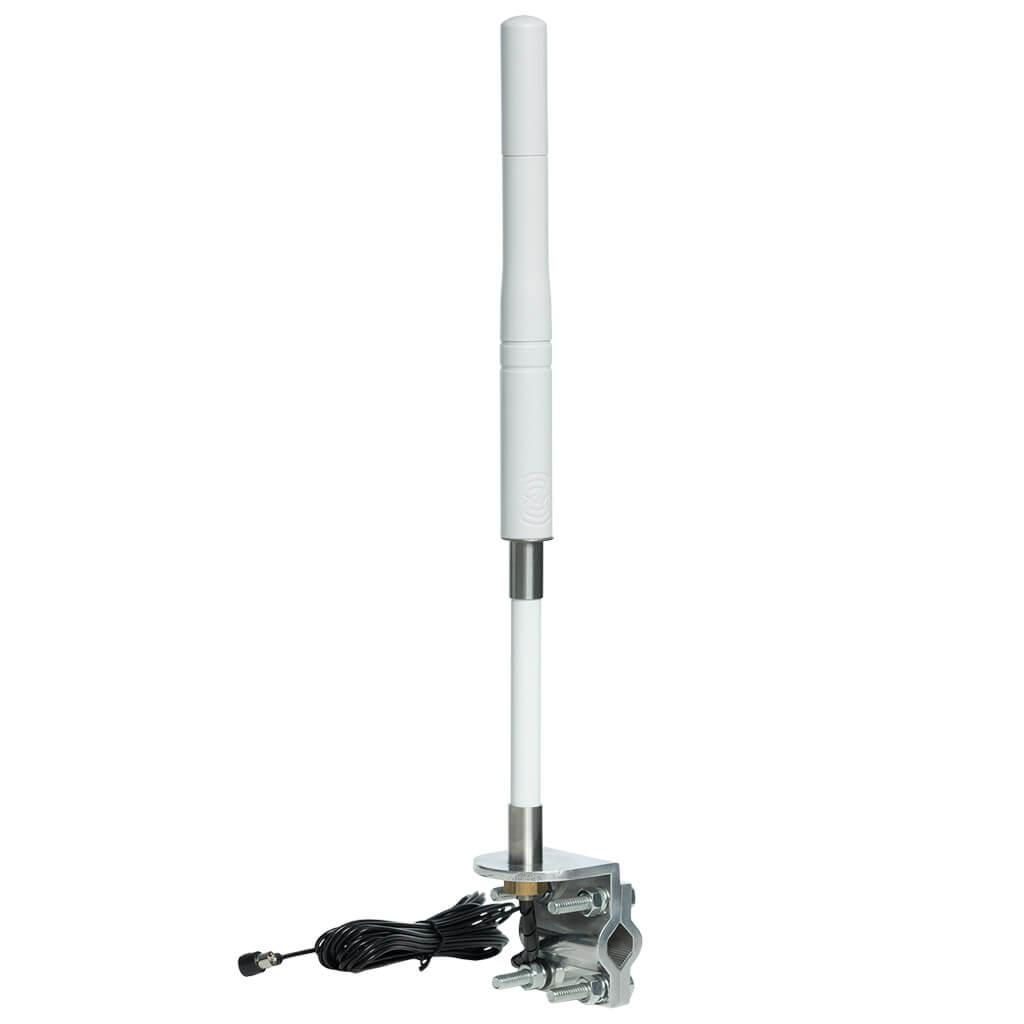

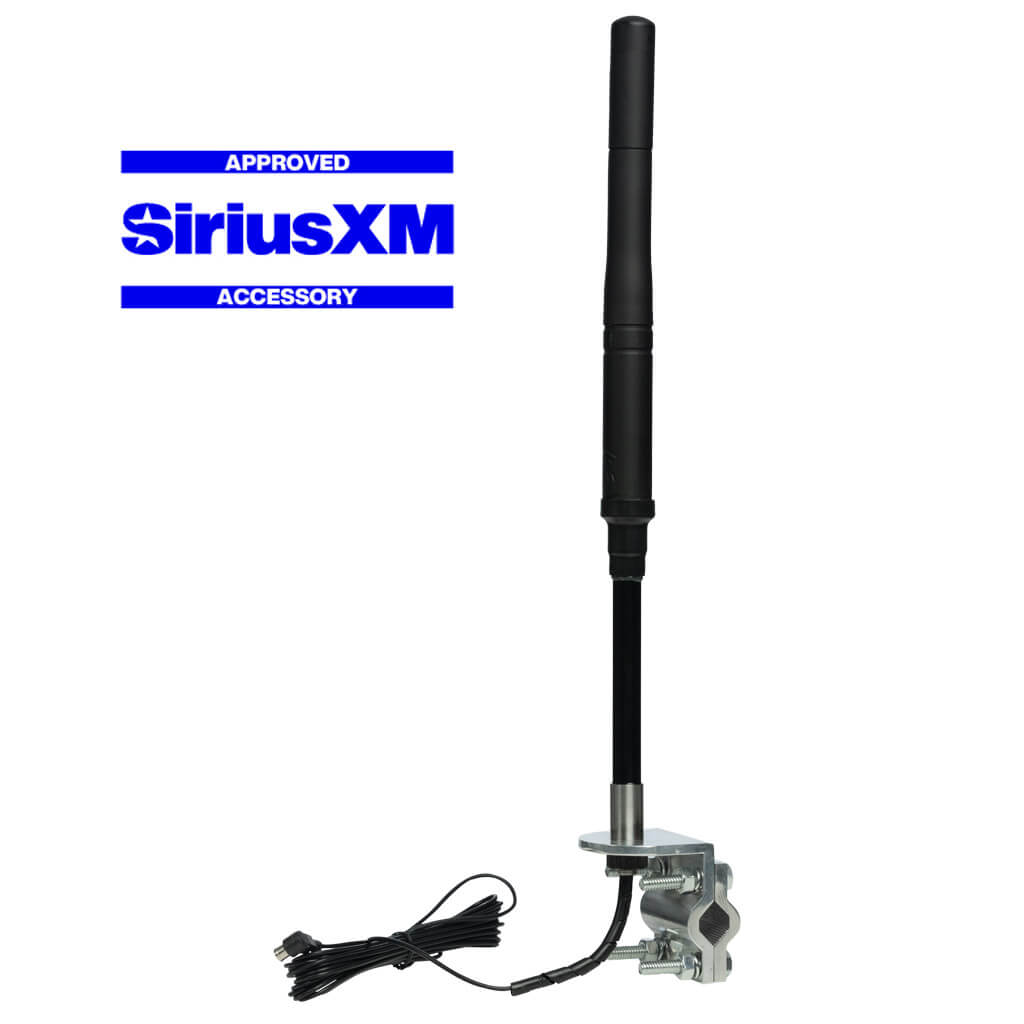

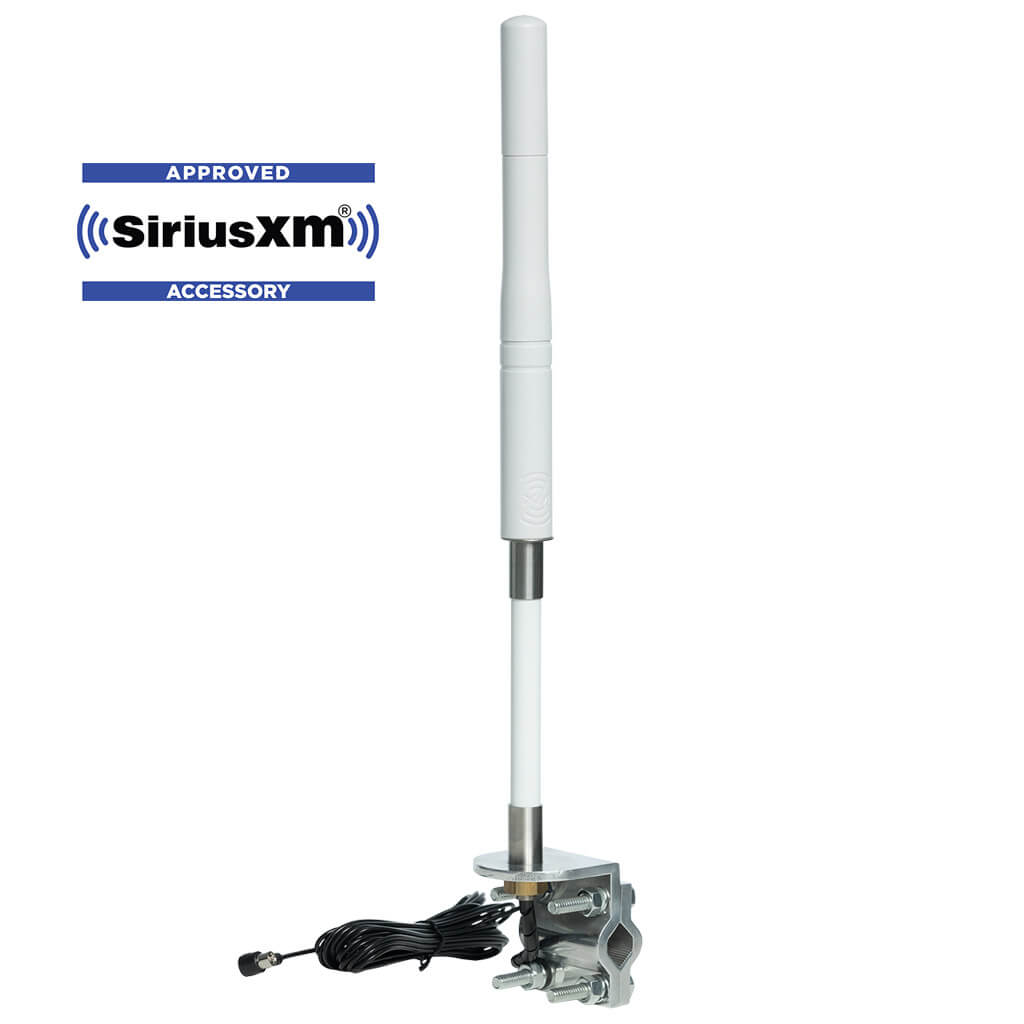

The SXMT16 Satellite Radio Mirror Mount Truck Antenna offers high quality signal with an extended flex tubing and a mirror mount bracket to allow for secure mounting.
- Works with all Satellite Radio Receivers
- Super strong flex tubing

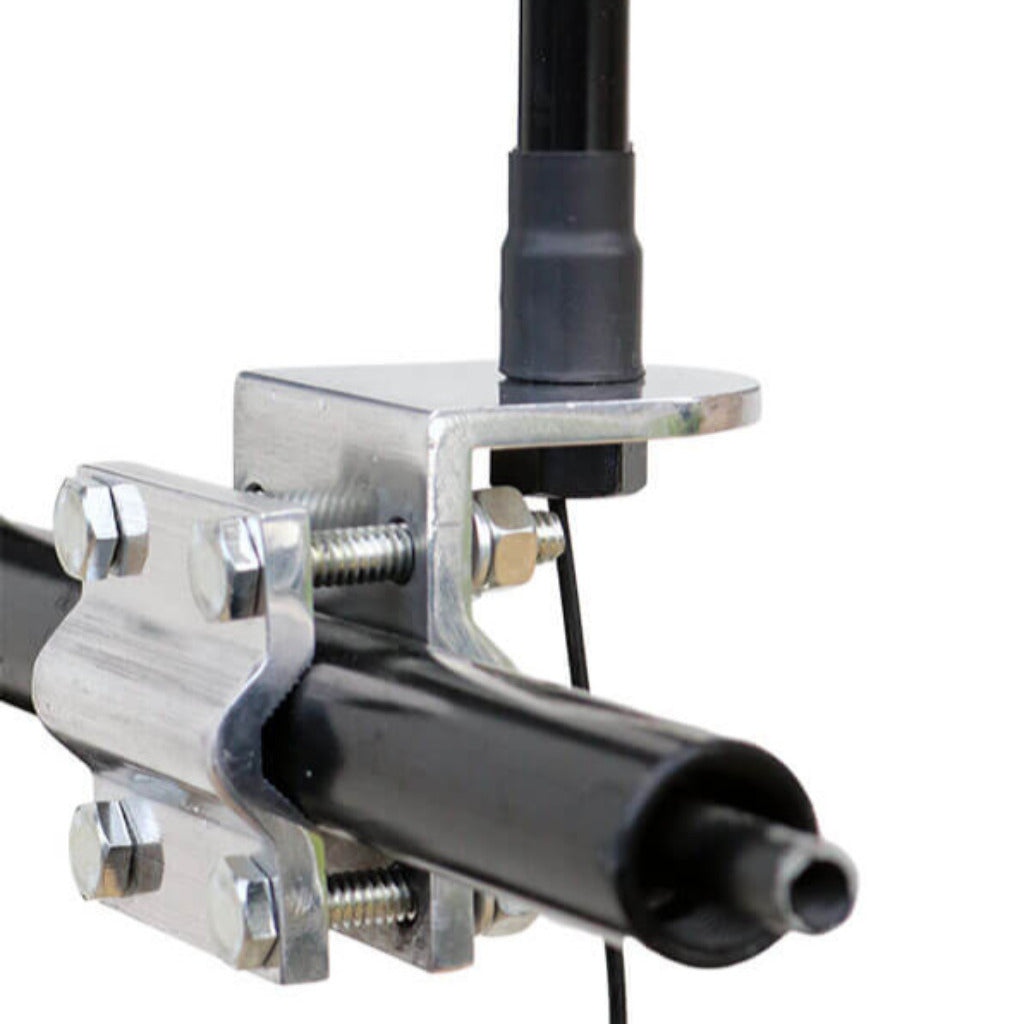

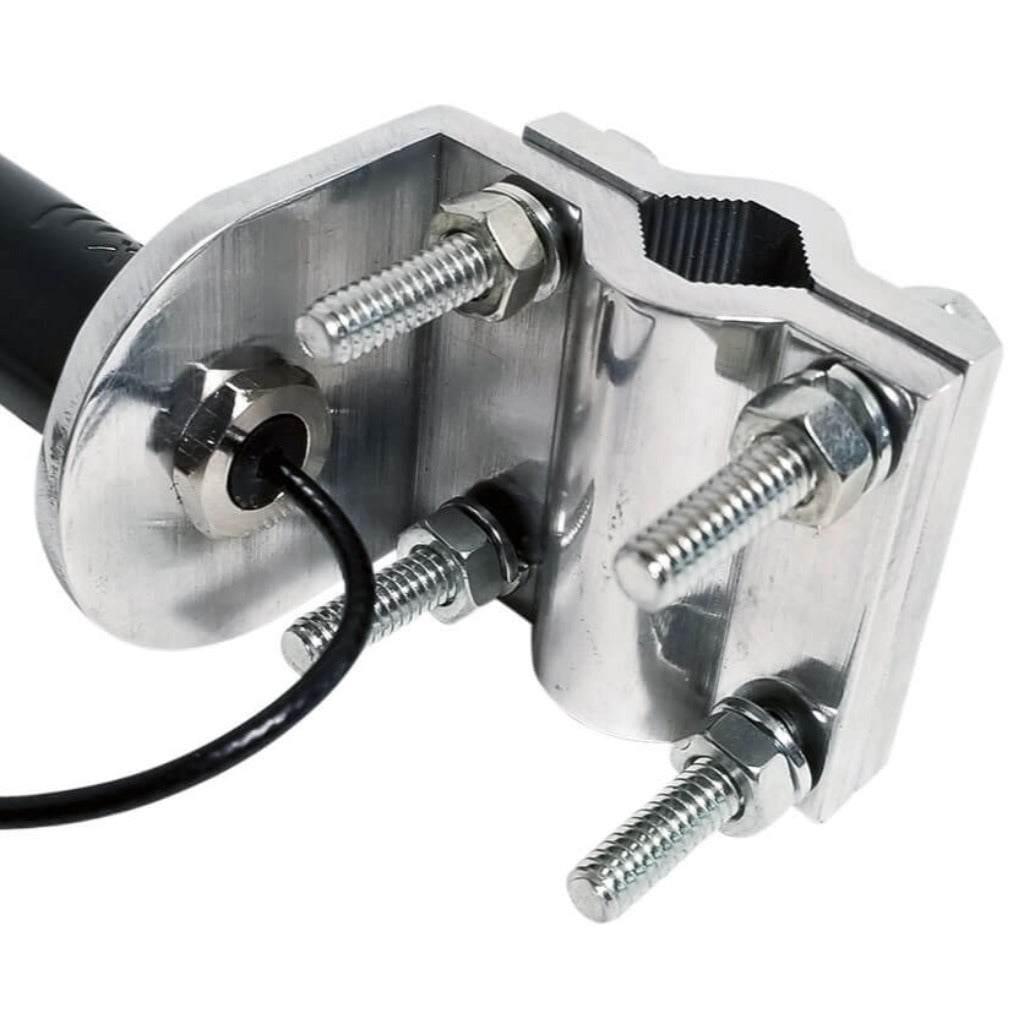

- Easy Installation on Truck Mirror or Support Bar
- Watertight Construction

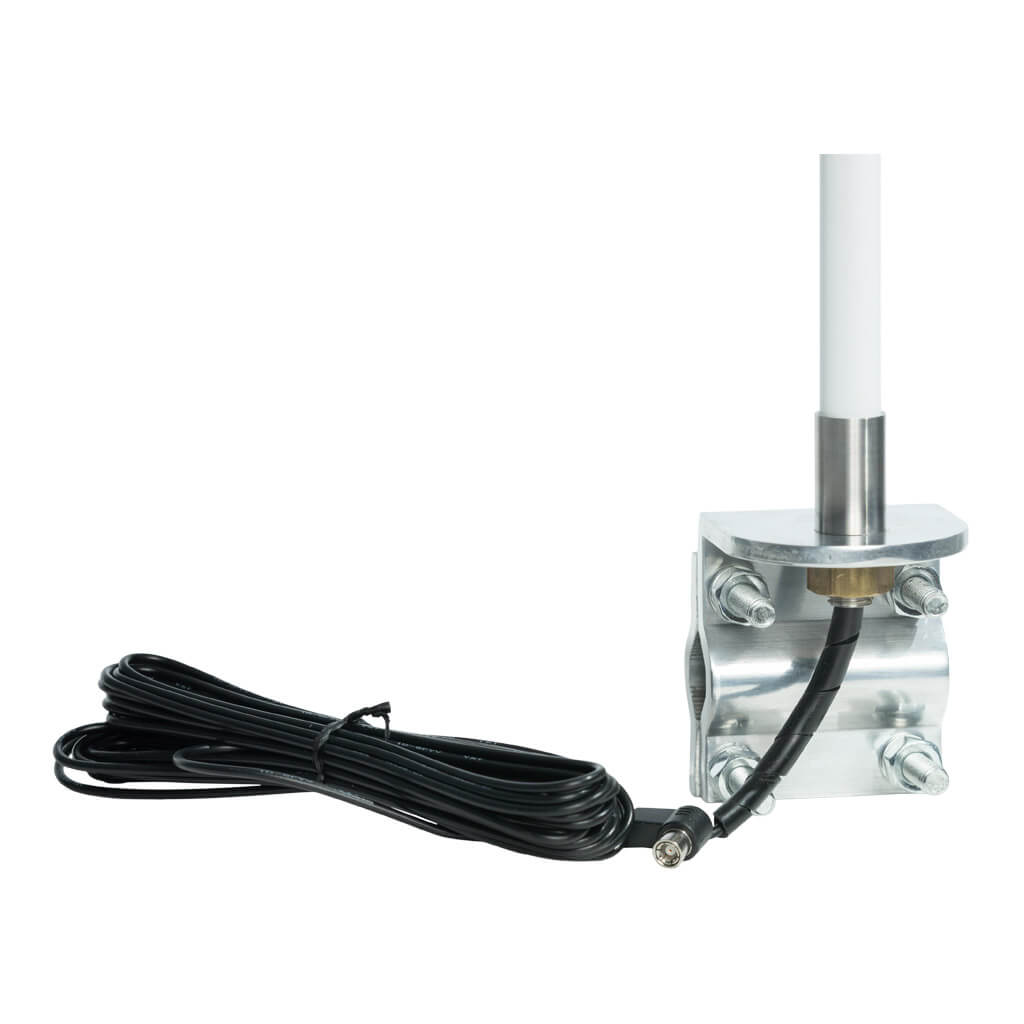

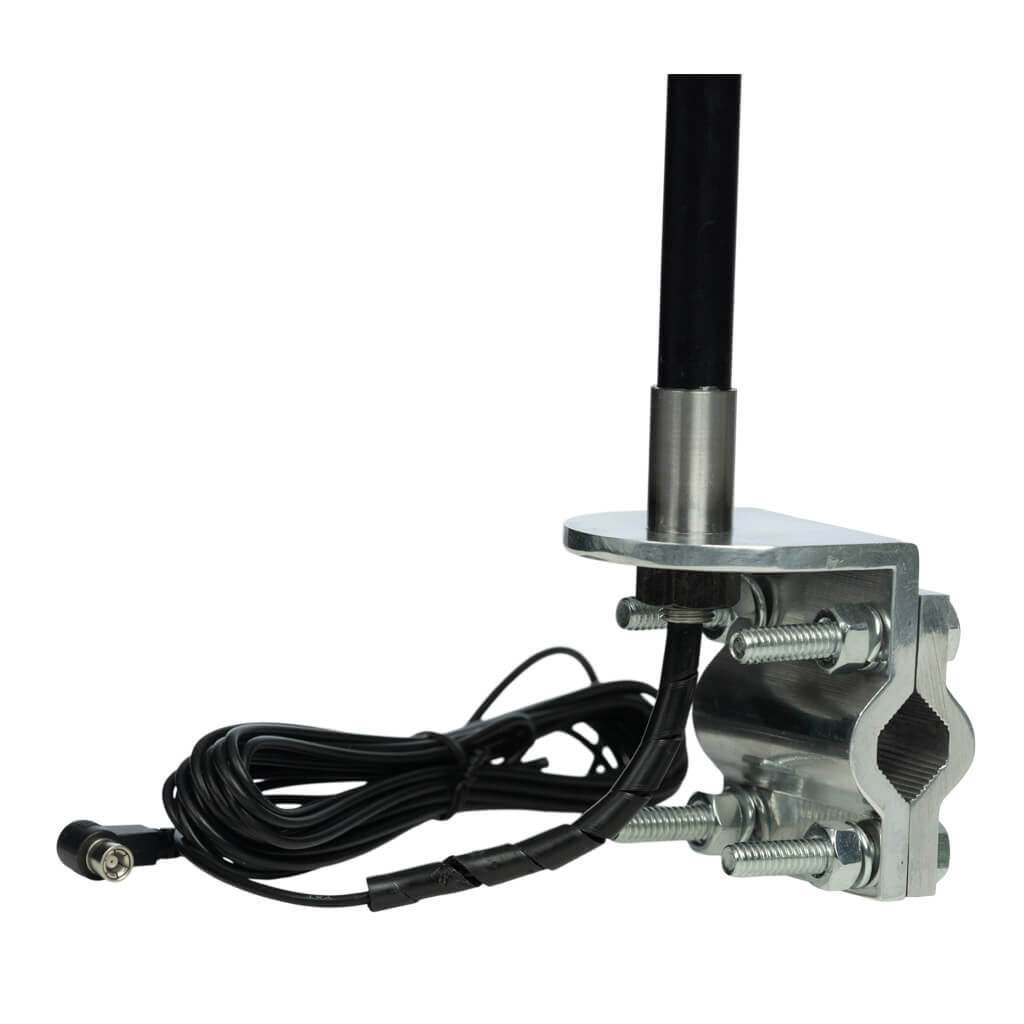

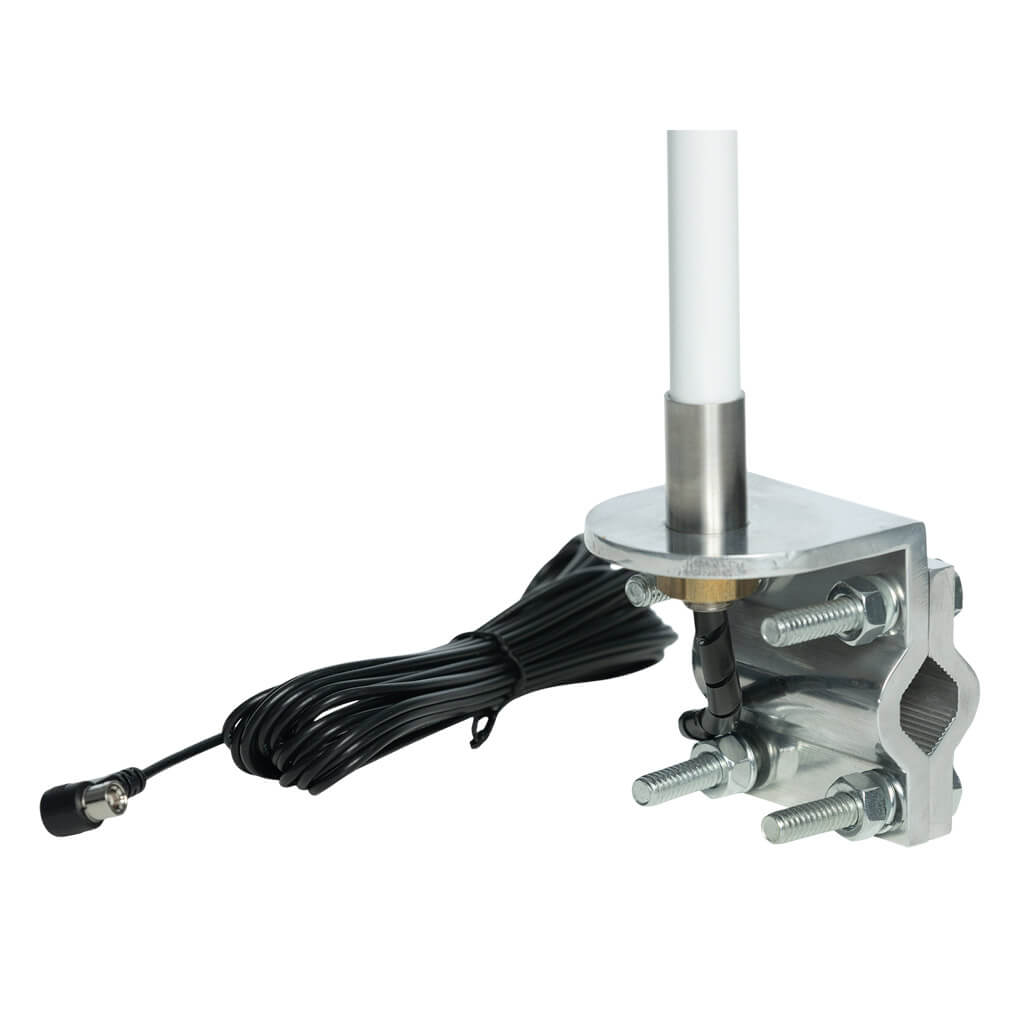

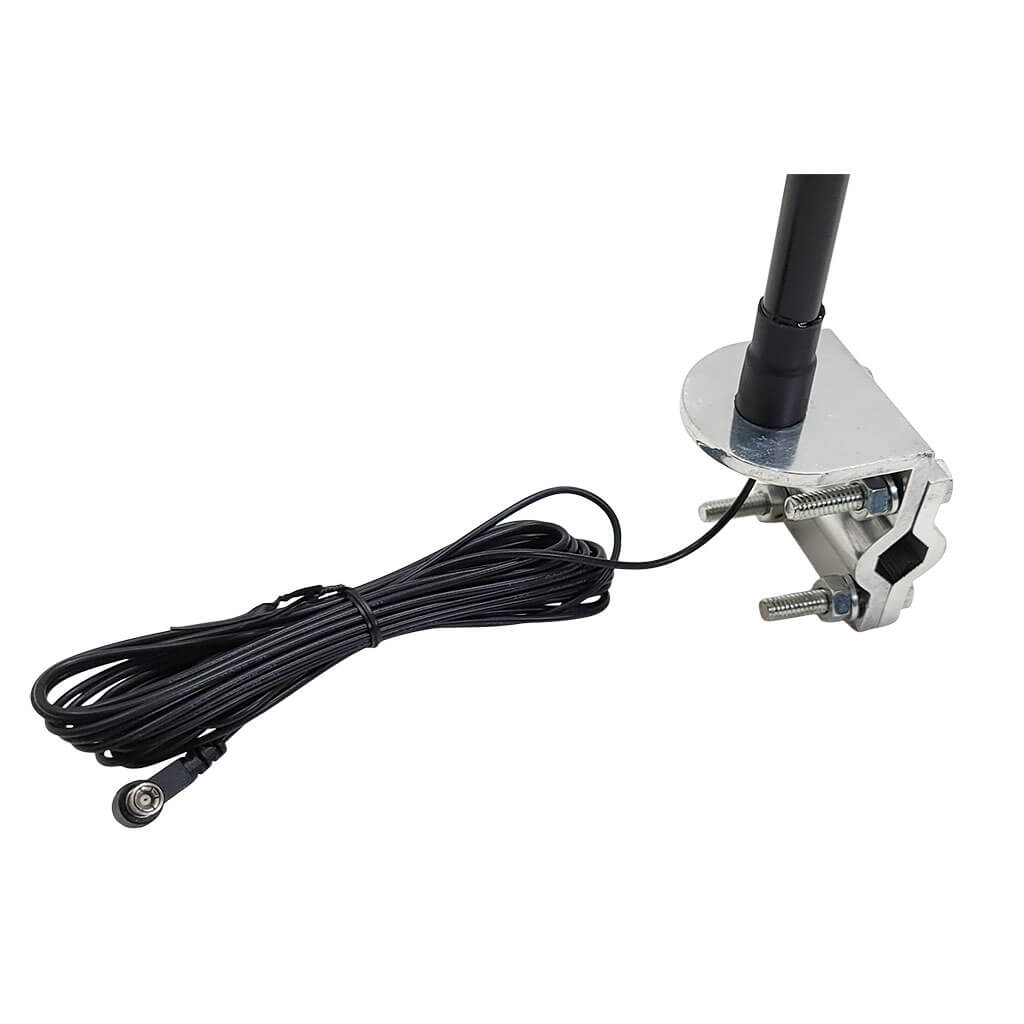

- Attached 16 Foot Low Loss Cable with Right Angle SMB Connector
- Includes All Installation Hardware
- Specifically Designed to Endure the Strong Wind Currents and Abuse and Deliver the Highest Possible Signal Quality
This antenna will work with all Satellite Radio receivers and Docks/Cradles
- Model #: SXMT16
- Manufacturer: Pixel Technologies

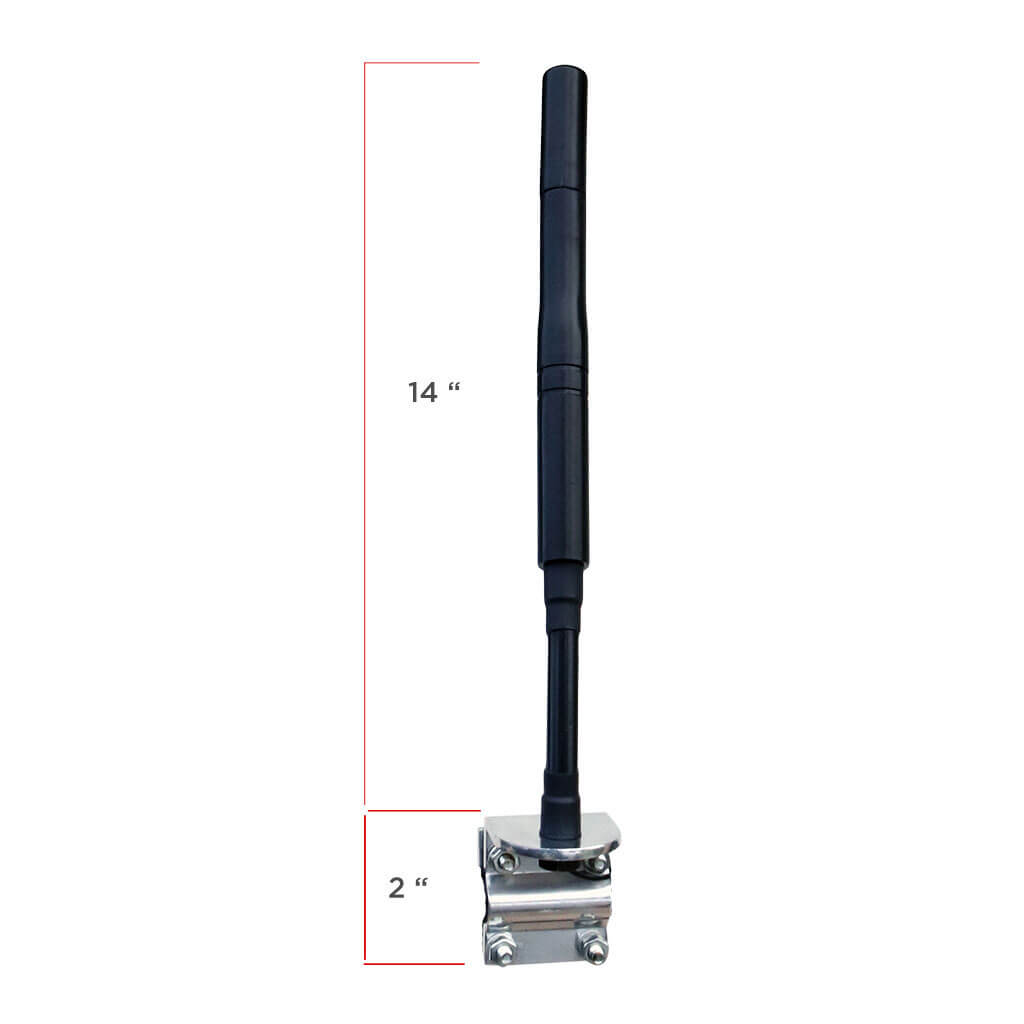

- Antenna Height: 16" tall with mounting base
- Antenna Width: 1" wide
- Base Width: 2.5" wide
- Weight: 10 ounces
- Frequency: 2320 to 2345 MHz
- Gain 2 dBic (20-60 deg elevation)
- Bandwidth: 12.5 MHz
- MHzImpedance: 50 ohms
- Polarization LHCP (20-60 deg elevation)
- Linear (Horizon)
- Gain: 30 dB, typical
- Noise Figure: 1.0 dB, maximum
- Power: 4.5 Vdc, nominal
- Current Drain: 60 mA, maximum
- Unwanted Signal Rejection: 40 dB minimum
- Type: Coaxial RG-174
- Length: 16 feet/
- Connector: SMB female
- Housing Material: Black ASA, UV Stable
- RV:1.37” Diam base. 0.312” hole
- Adjustable Angle 0 to 35 degree slope
- Rated Wind Velocity: 150 mph
- Weight: 0.25 Lbs w/out Cable
- Temperature: -40 °C to +105 °C, operating
- -45 °C to +120 °C, storage
- Truck Antenna with Clamp
- 16 Foot Cable (Attached)
