Description

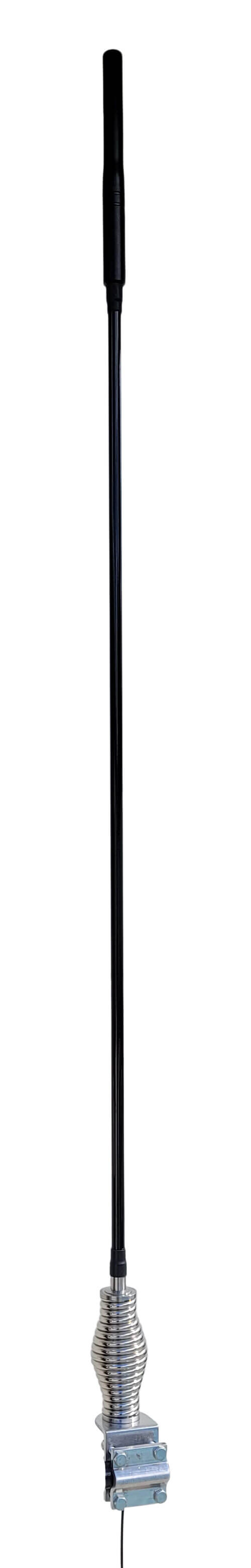

The SXMT50 Satellite Radio Mirror Mount Truck Antenna is the tallest SiriusXM Radio antenna on the market and it offers high quality signal with an extended tubing and a super strong spring that keeps the antenna in a vertical position.
The antenna can be mounted in two different configurations.

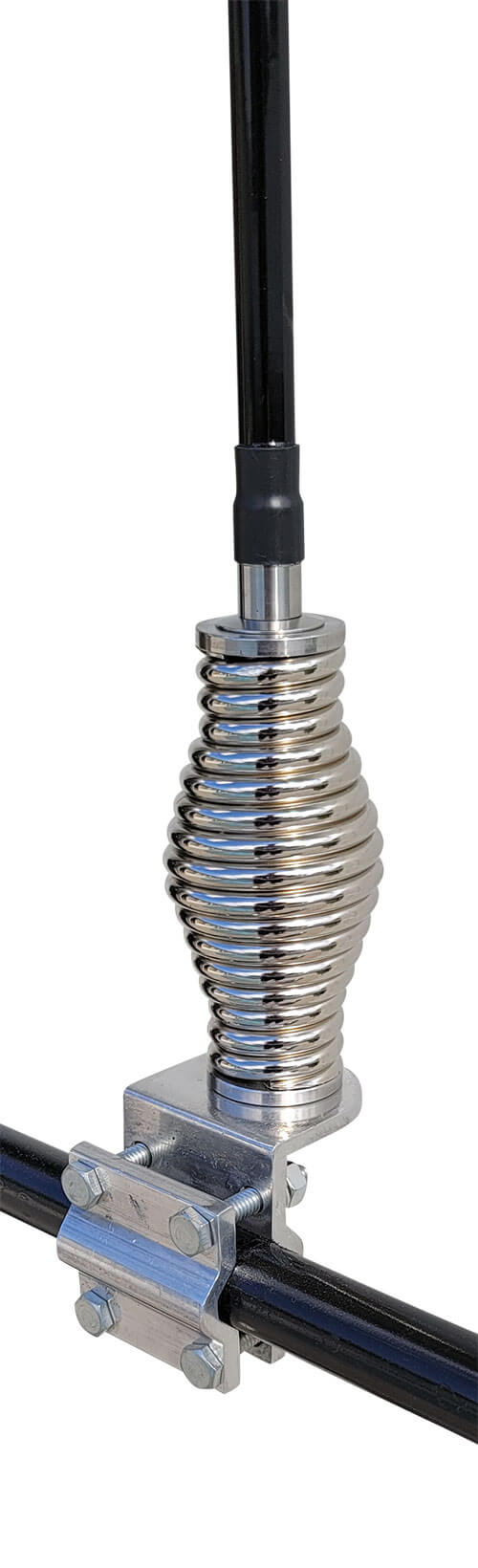

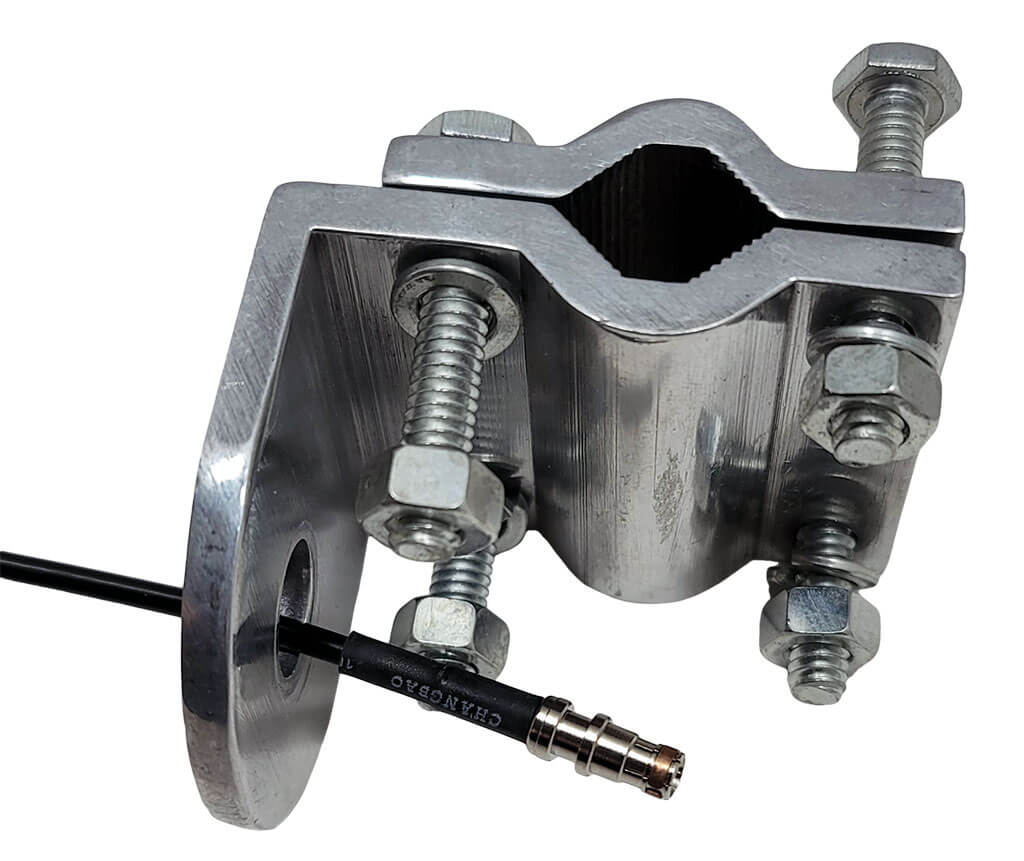

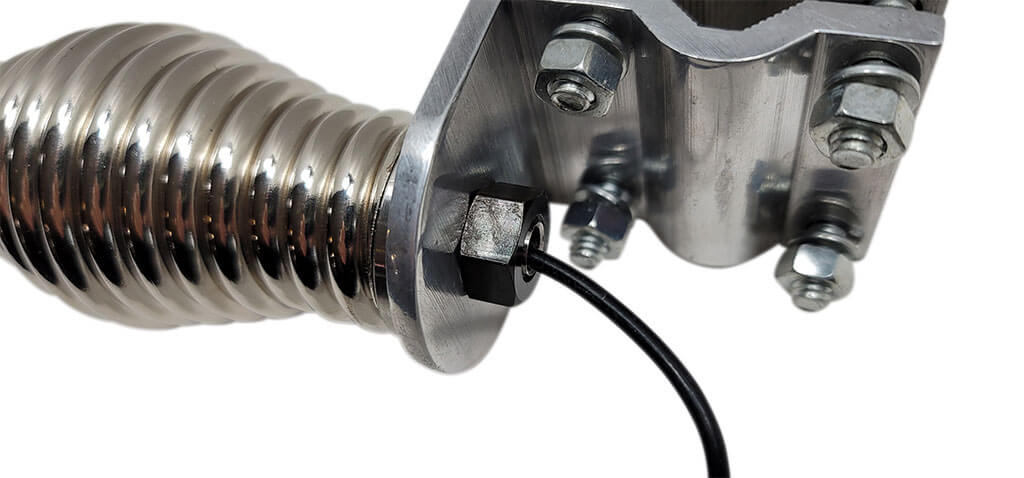

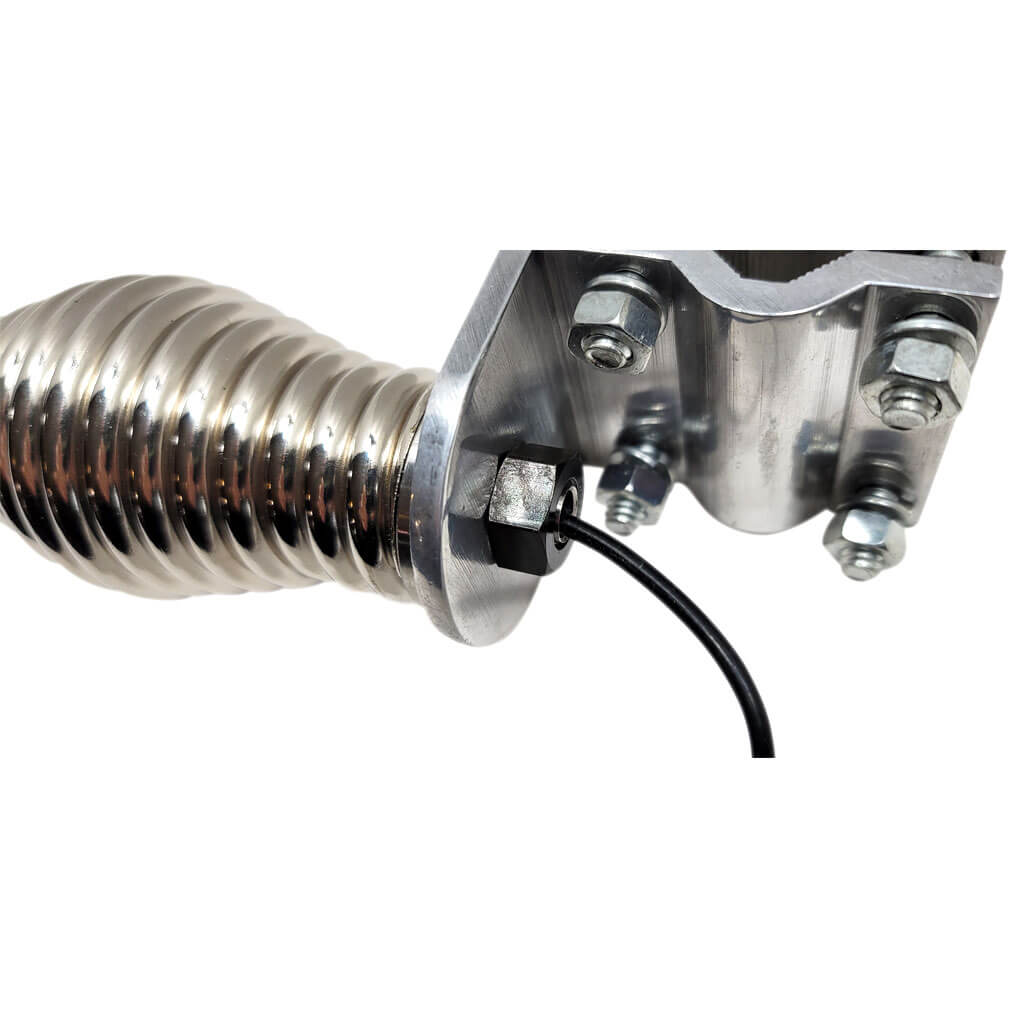

- Using the supplied antenna mounting bracket which can be secured to a mirror or bar
- You can also mount the antenna directly to a mirror plate such as the KENWORTH T680 & T880 mirror arm mount
Antenna Features
- 48 Inches Tall - Tallest SiriusXM Antenna on the Market
- Works with all Satellite Radio Receivers

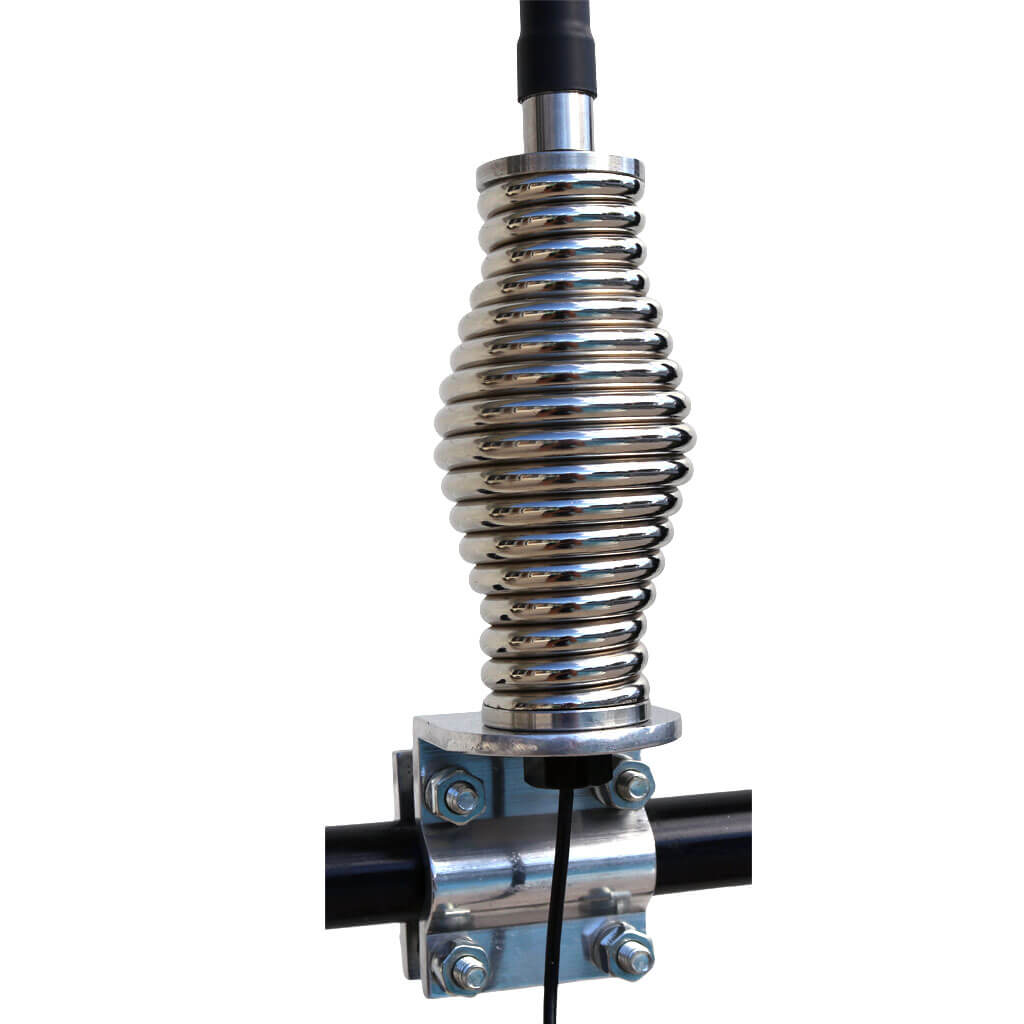

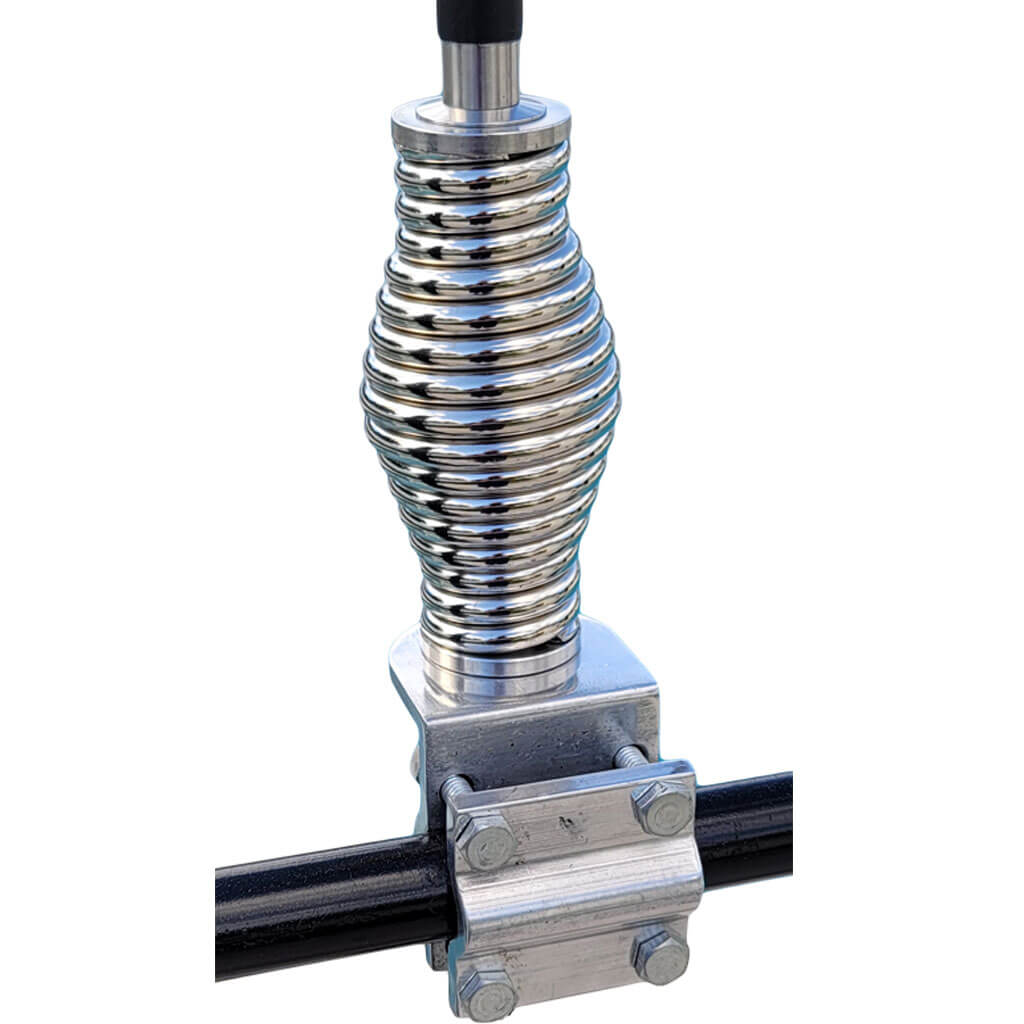

- Strong Extended Tubing with Super Strong Spring
- Easy Installation on Truck Mirror Arm Mount or Support Bar
- Watertight Construction
- Attached 16 Foot Low Loss Cable with SMB Connector
- Includes All Installation Hardware
- Specifically Designed to Endure the Strong Wind Currents and Abuse and Deliver the Highest Possible Signal Quality
Compatible Receivers
This antenna will work with all Satellite Radio receivers and Docks/Cradles
Technical Specs
- Model #: SXMT50
- Manufacturer: Pixel Technologies
- Antenna Height: 48" tall with mounting base
- Antenna Width: 1" wide
- Base Width: 3" wide
- Weight: 1 pound, 9 ounces
- Frequency: 2320 to 2345 MHz
- Gain 2 dBic (20-60 deg elevation)
- Bandwidth: 12.5 MHz
- MHzImpedance: 50 ohms
- Polarization LHCP (20-60 deg elevation)
- Linear (Horizon)
- Gain: 30 dB, typical
- Noise Figure: 1.0 dB, maximum
- Power: 4.5 Vdc, nominal
- Current Drain: 60 mA, maximum
- Unwanted Signal Rejection: 40 dB minimum
- Type: Coaxial RG-174
- Length: 16 feet/

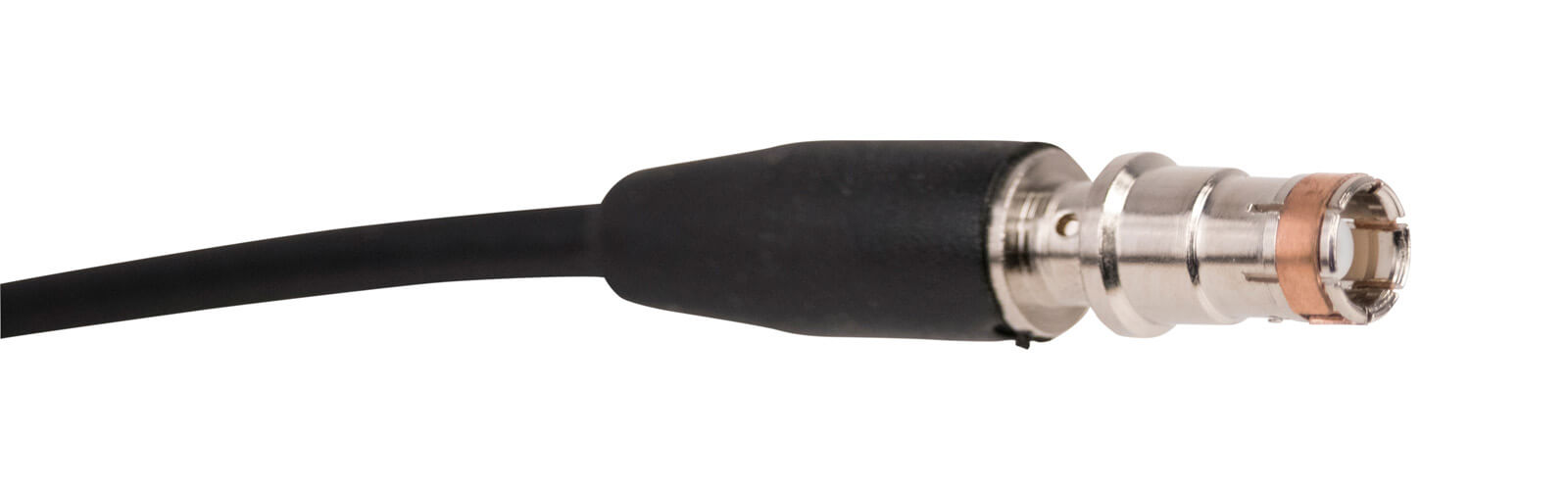

- Connector: SMB female
- Housing Material: Black ASA, UV Stable
- RV:1.37” Diam base. 0.312” hole
- Adjustable Angle 0 to 35 degree slope
- Rated Wind Velocity: 150 mph
- Weight: 0.25 Lbs w/out Cable
- Temperature: -40 °C to +105 °C, operating
- -45 °C to +120 °C, storage
Package Includes
- 48 Inch Truck Antenna with Spring and Clamp Mount
- 16 Foot Cable with SMB Connector (Attached)

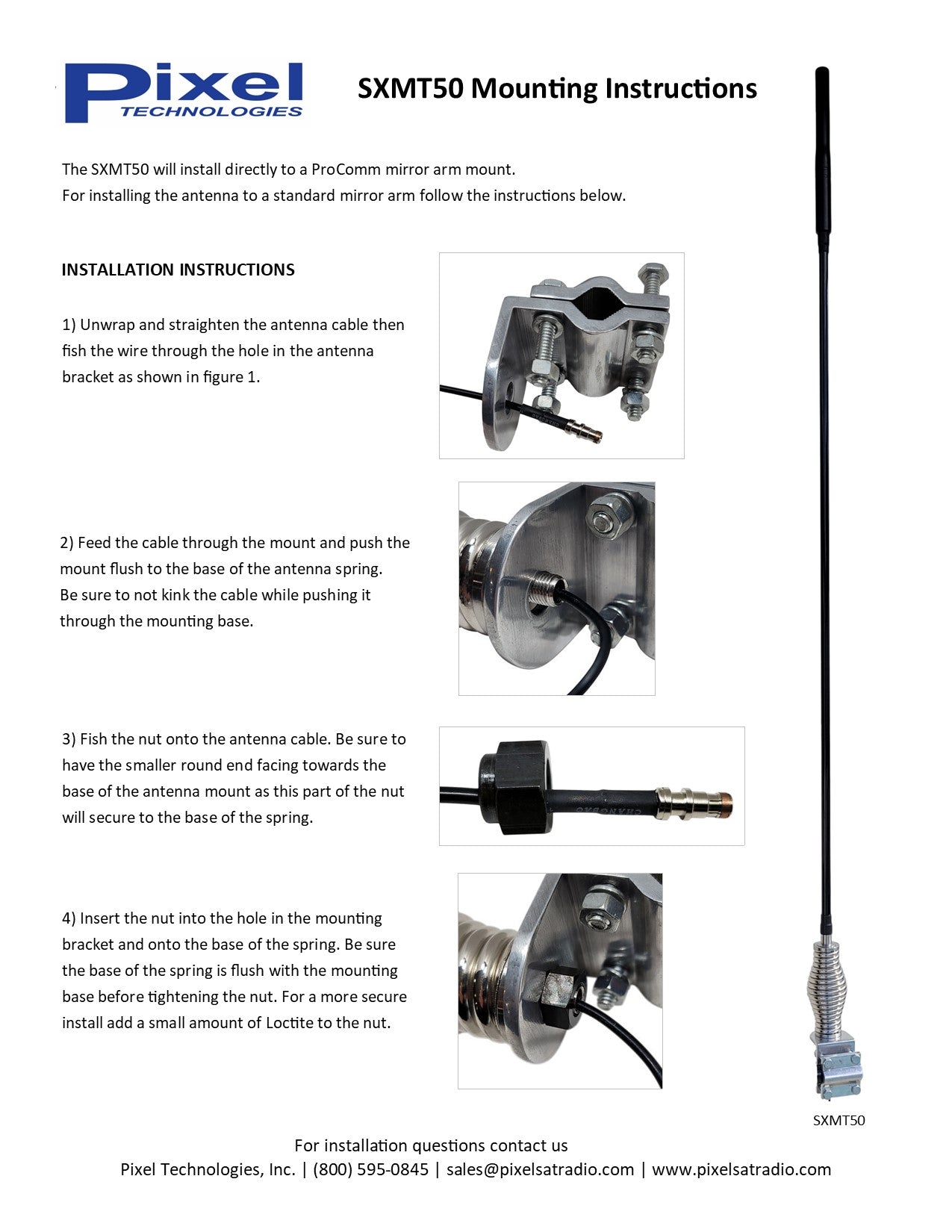

Product Documentation, Installation Guides & Manuals
Please note: Due to the box size of this antenna it does not qualify for free shipping or shipping promotions and may ship separate from other items on the same order.
