SiriusXM Radio Marine Antenna with Pole Mast

Sale price$69.95
In stock



The Pixel Technologies XMM4 SiriusXM Marine Antenna is a SiriusXM® Approved Antenna. This means the antenna meets SiriusXM® stringent antenna specifications for performance and signal reception. The antenna is compatible with all radios and docks that work on the Sirius and XM networks with push on style, single SMB antenna connector.

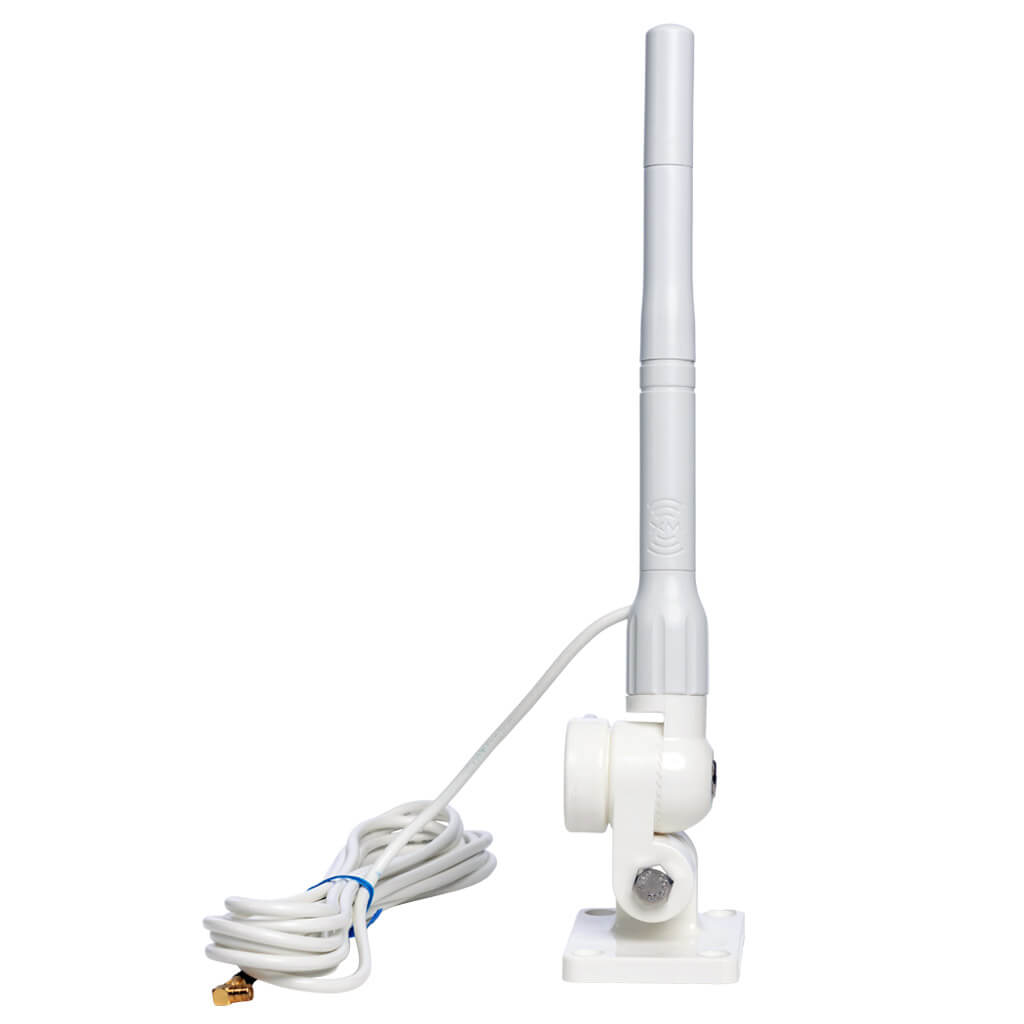

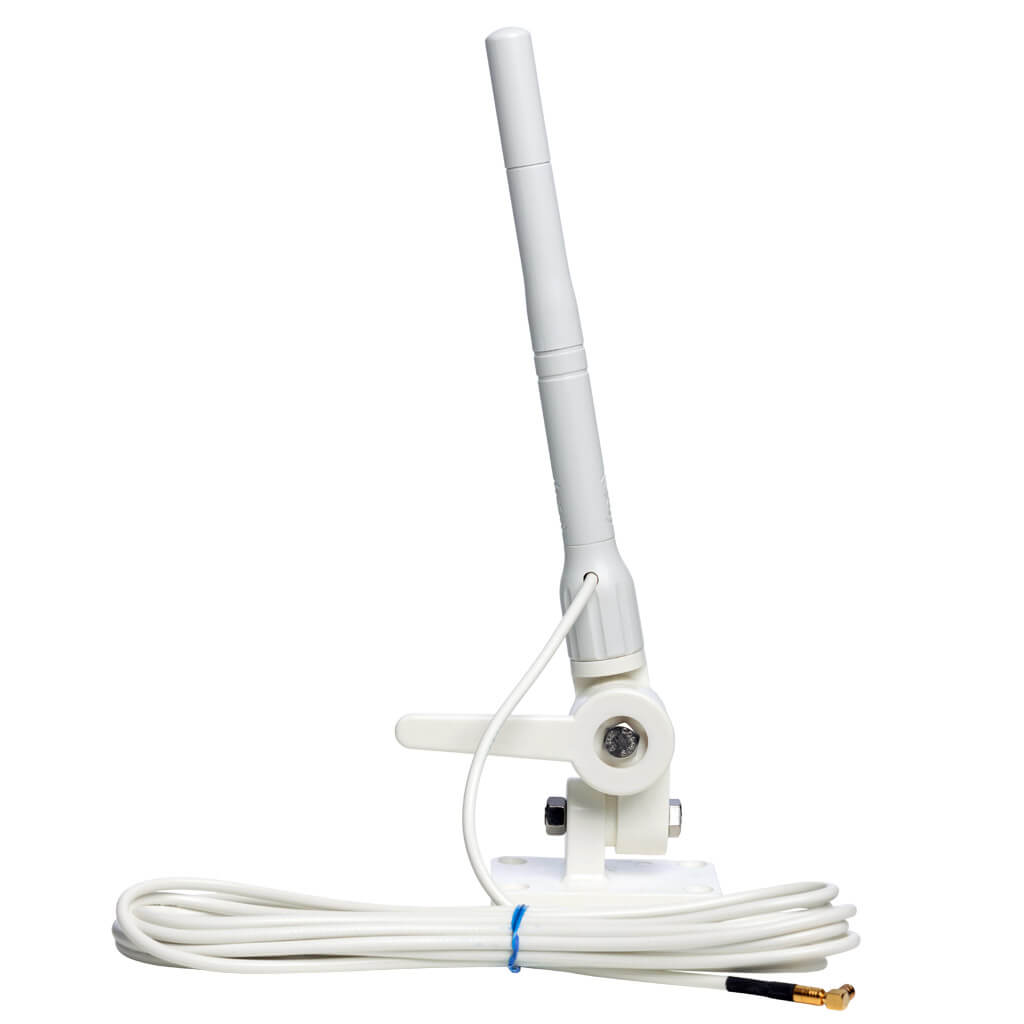

The XMM4 is a high gain SiriusXM™ Radio marine antenna designed to handle the harsh environment of both salt and fresh water boating. The antenna is ground plane independent and can be mounted in a variety of locations on a boat or ship. It features a waterproof and corrosion resistant housing and comes with 30 foot reinforced marine grade antenna cable.

Product Details

  • Waterproof - No need to worry about water damage to your antenna thanks to the incredible durability of this XMM4
  • Multiple Mounting Options - This antenna is designed to be mounted on a variety of locations specific to marine watercraft and still receive a clear signal
  • Extended Cable Length - The XMM4 comes with a 30 foot cable allowing you to mount your antenna a good distance away from your receiver for optimum reception
  • SiriusXM APPROVED - Meets SiriusXM stringent performance requirements.


  • Frequency: 2320 to 2345 MHz
  • Gain: 2 dBic (20-60 deg elevation) -2 dBi (horizon)
  • Bandwidth: 12.5 MHz
  • Impedance: 50 ohms
  • Polarization LHCP (20-60 deg elevation) Linear (horizon)


  • Gain: 30 dB, typical
  • Noise Figure: 1.0 dB, maximum
  • Power: 4.5 Vdc, nominal
  • Current Drain: 50 mA, maximum
  • Unwanted Signal Rejection: 35 dB, Minimum


  • Type: Coaxial RG-58A/U
  • Length: 30 Feet
  • Connector: Straight SMB

Mechanical Specifications

  • Overall Height: 10.25 inches
  • Effective Diameter: 0.75-0.82 inches
  • Housing Material: white ABS, UV Stable


  • Fits Standard Marine Antenna Bases
  • Rated Wind Velocity: 100 mph
  • Weight: .025 Lbs w/out cable

Other Specifications

  • Temperature: -40 degrees C to +105 degrees C, operating
  • Temperature: -45 degrees C to +120 degrees C, storage

Compatible Receivers

Technical Specs

  • Model #: XMM4
  • Manufacturer: Pixel Technologies
  • Dimensions: 10.25 inches high
  • Weight: 0.25 lbs w/out Cable

Package Includes

  • SiriusXM Radio Marine Antenna

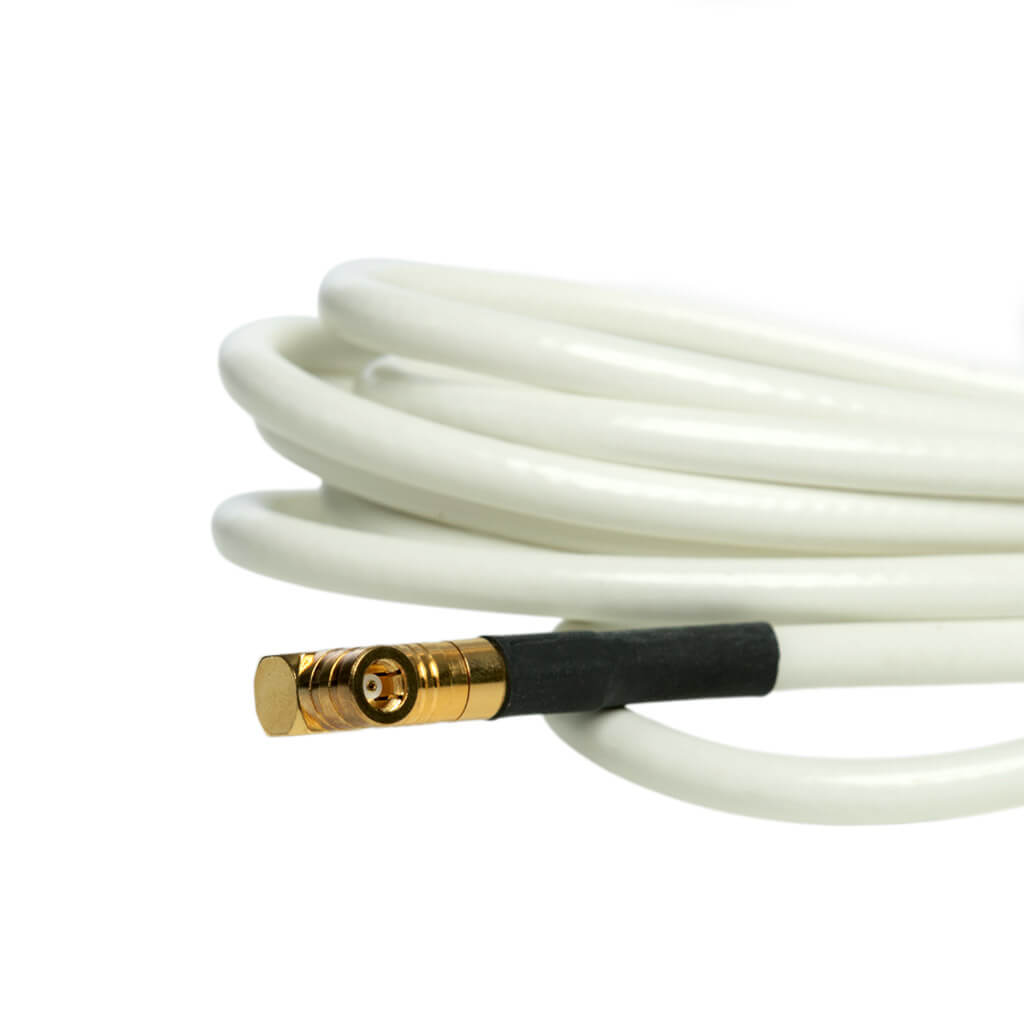

  • 30 feet of cable with SMB straight connector attached

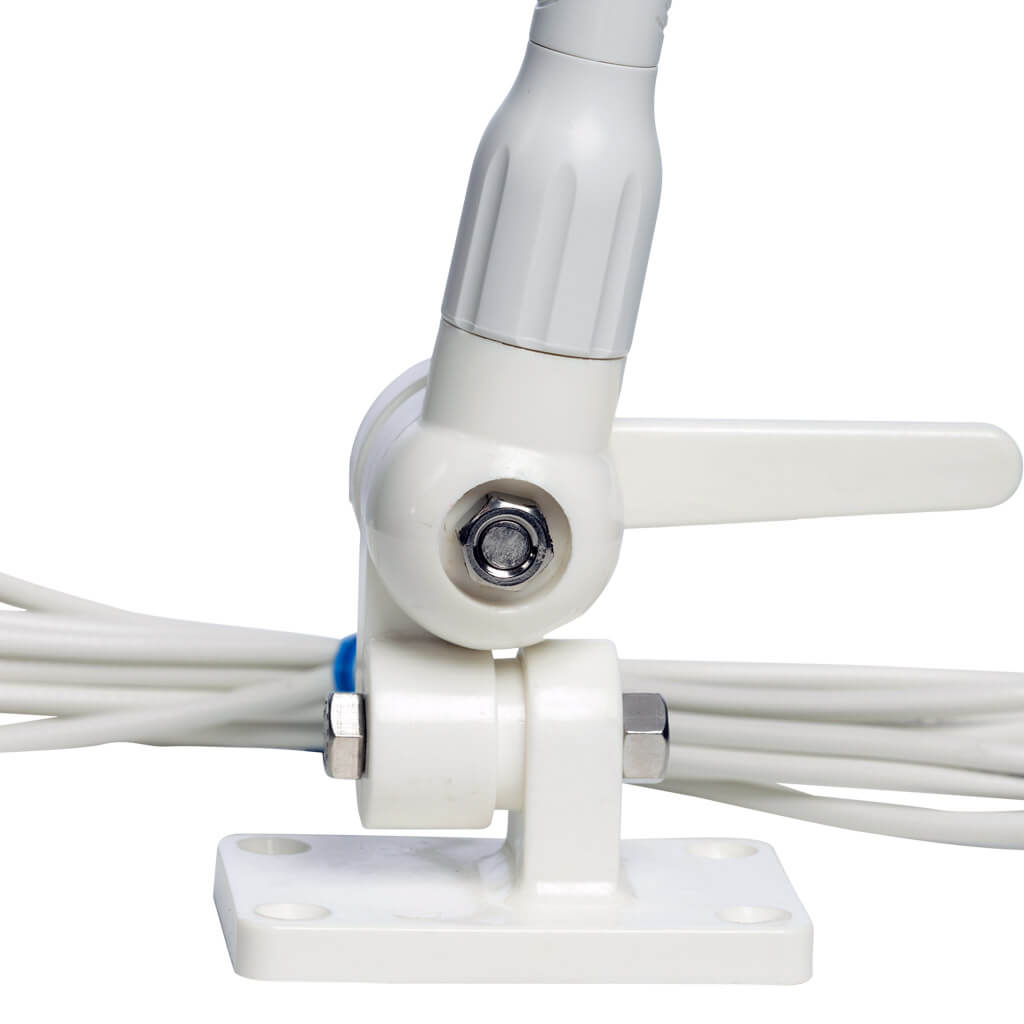

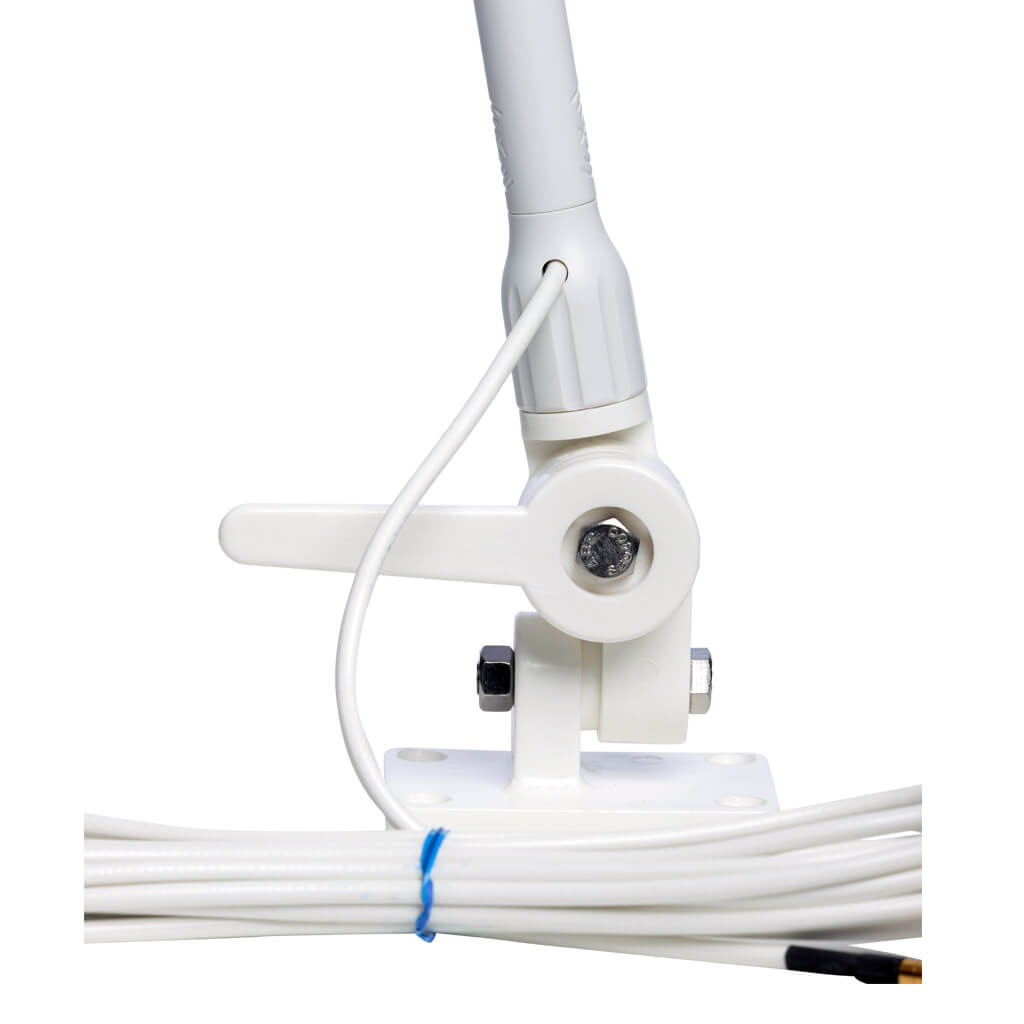

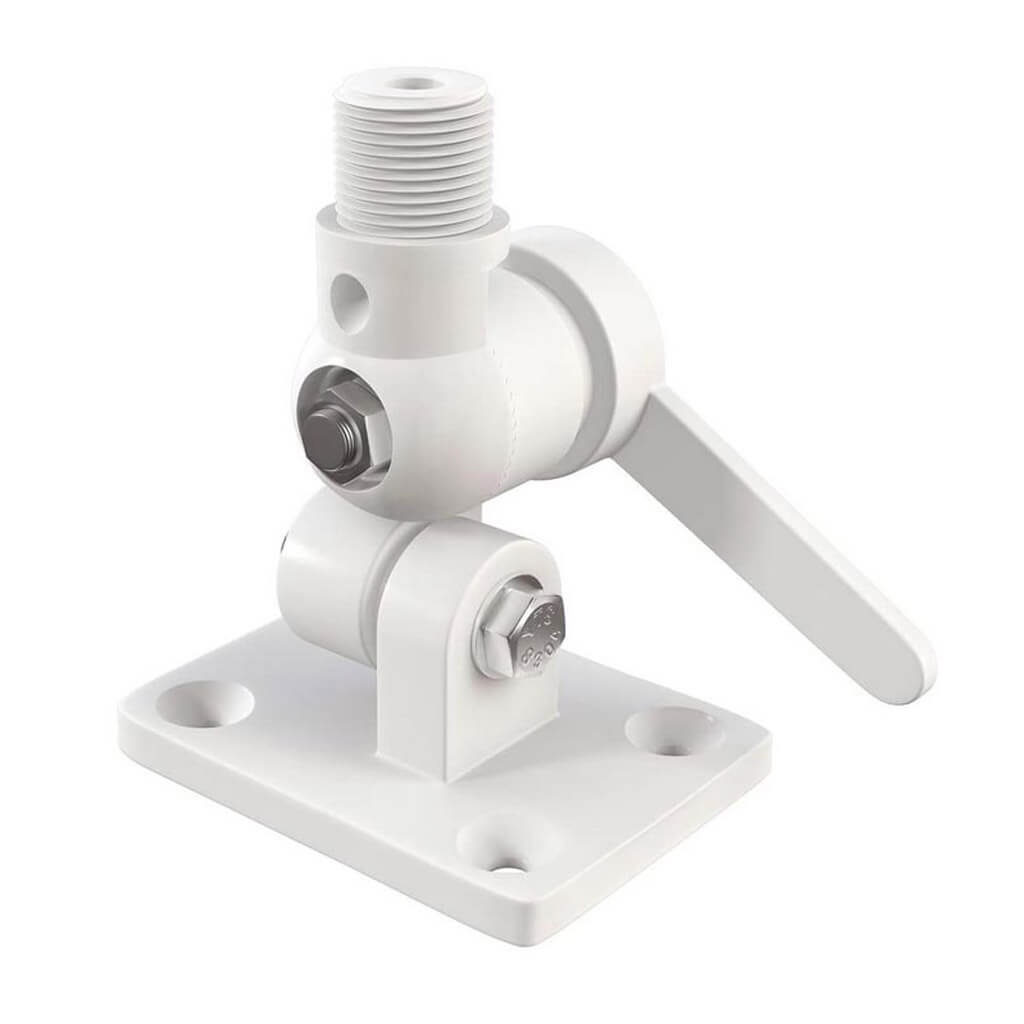

  • Mounting base

Download Product Documentation, Installation Guides & Manuals
