AFXSM-5 XM & Sirius AM/FM HD Commercial Antenna Kit

Pixel TechnologiesSKU: AFXSM-5

Add Cable to Your Order?: No Thank You I Have RG-6 Cable
Price:
Sale price$189.95
Stock:
Sold out

Description

Model AFXSM-5: AM/FM/HD/SiriusXM Radio Antenna Kit

  • This Commercial SiriusXM commercial antenna and splitter work together to bring both satellite radio and AM/FM radio to your existing system.
  • It is designed to clarify the satellite signal despite other signal distractions that may be present.
  • The antenna is four feet long.

This is the perfect setup for adding XM or Sirius Satellite Radio to your home audio system using your EXISTING wiring! This kit comes with literally everything you will need to use your existing RG-6 coaxial wiring and receive XM or Sirius Satellite Radio inside your home. Included in this kit is the top-of-the-line Pro-500 Satellite Radio antenna that will eliminate and signal problems you may have. Unlike any other Satellite Radio antenna the Pro500 filters out all other interference signals such as WIFI, CB radios, or Cell Phones that cause you to receive a weak signal using any other Satellite Radio Antenna. This truly is the perfect choice to add XM or Sirius to your home. In addition to receiving both Sirius & XM signals, this antenna package receives AM/FM standard radio as well as HD FM signal. No matter what you use to provide music to your customers or home, this antenna splitter kit is the perfect option!

Product Overview

  • Antenna length: 48 inches
  • AM Band Frequency: 500 KHz to 1750 KHz
  • FM Band Frequency: 88MHz -108 MHz
  • Ground plane required: None
  • AM capture length: 300 inches
  • AM / FM Band Separator Performance
  • FM rejection in AM band: > 50 dB
  • AM rejection in FM band: > 60 dB
  • AM/FM Pass-band loss: < 1dB
  • AM load impedance: 300 ohms
  • FM load impedance: 75 ohms
  • Antenna Beam width: Omni-directional

Technical Specs

  • Model #: AFXSM-5
  • Manufacturer: Pixel Technologies
  • Dimensions: N/A
  • Weight: 8 pounds

Splitter Kit Package Includes

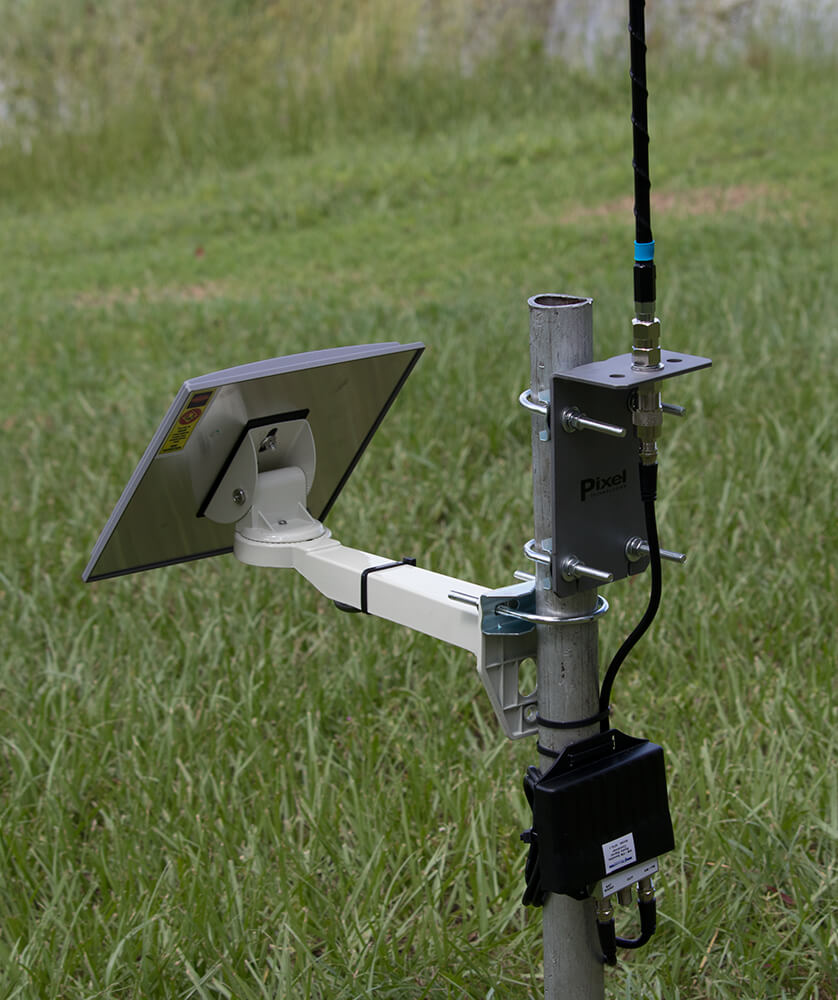

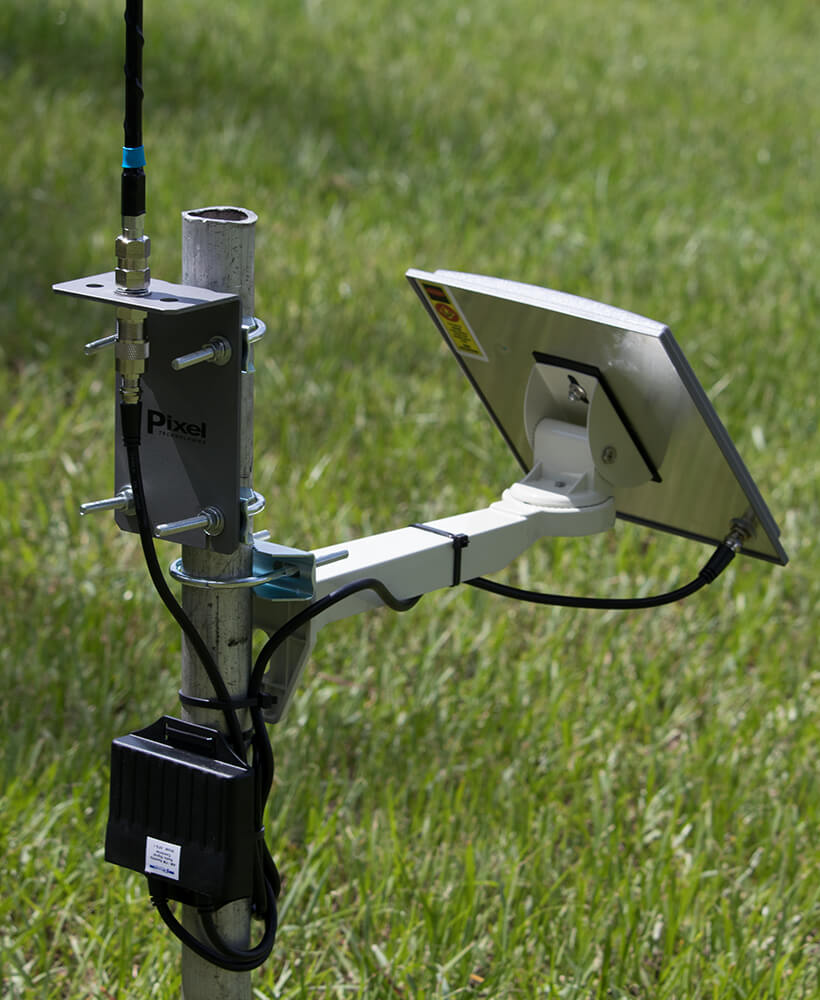

  • 1 - PRO-500 Satellite Radio Antenna with wall mount

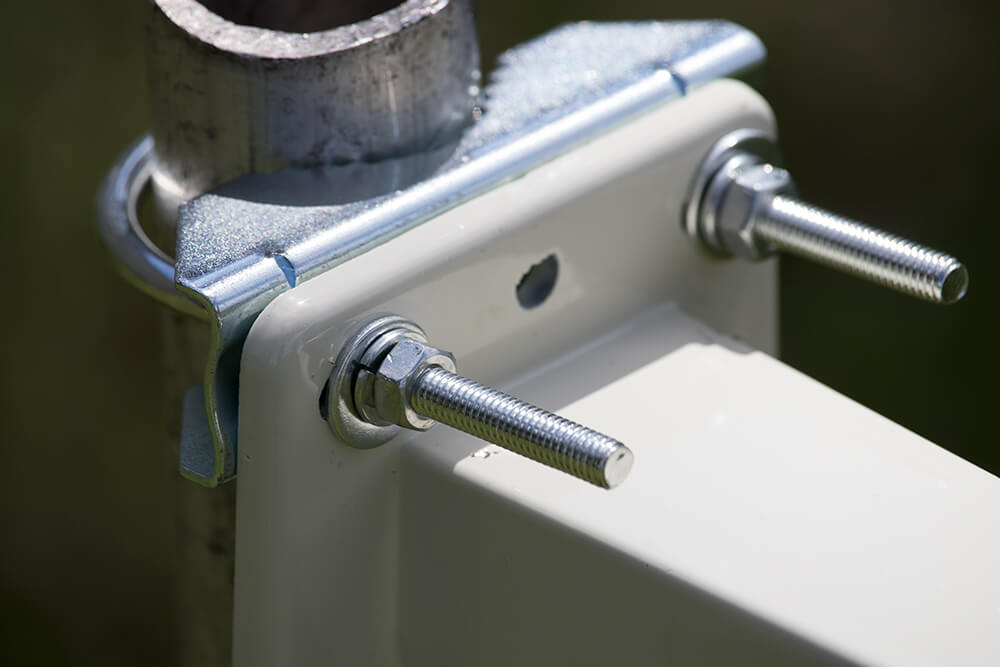

  • 1 - Lot Mounting hardware for PRO-500 wall mount

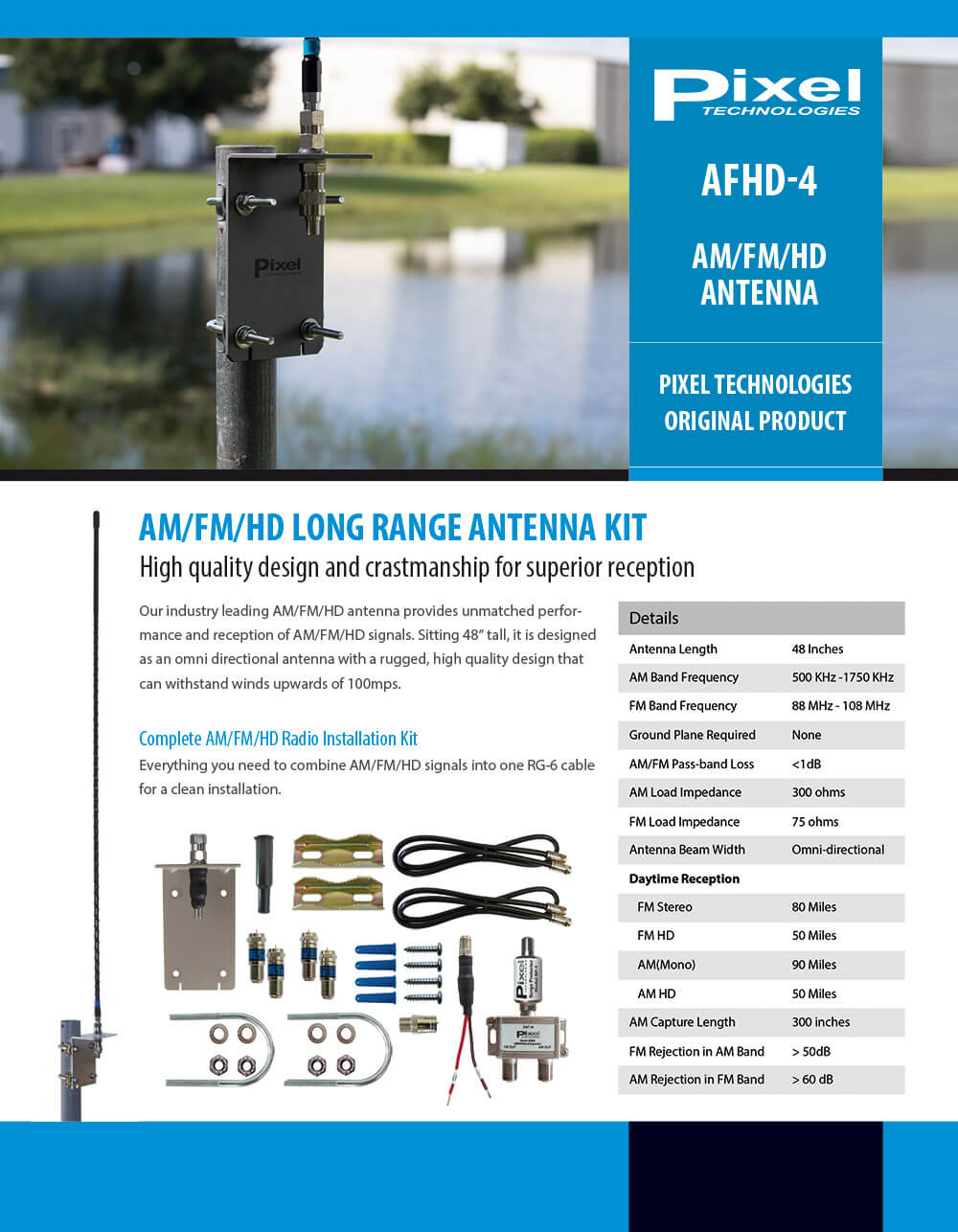

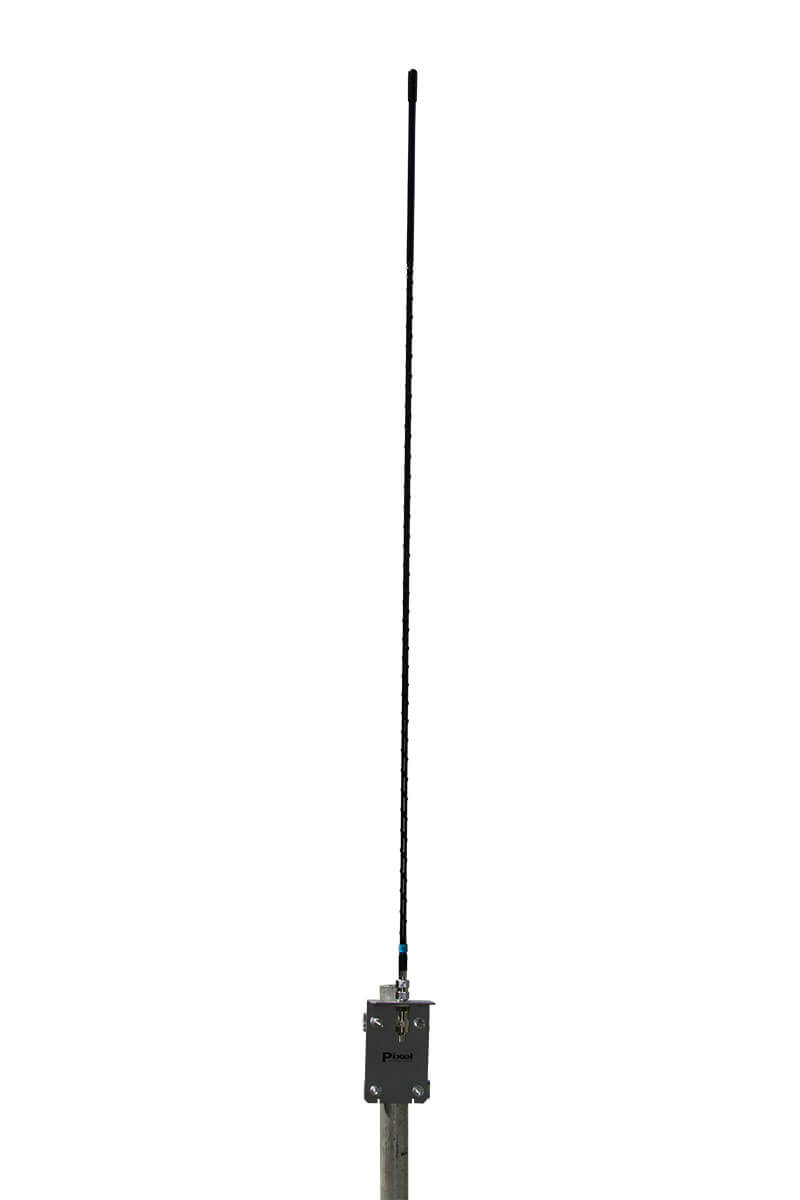

  • 1 - AFHD-4 AM / FM Antenna with wall mount
  • 1 - Lot Mounting hardware for AM /FM wall mount

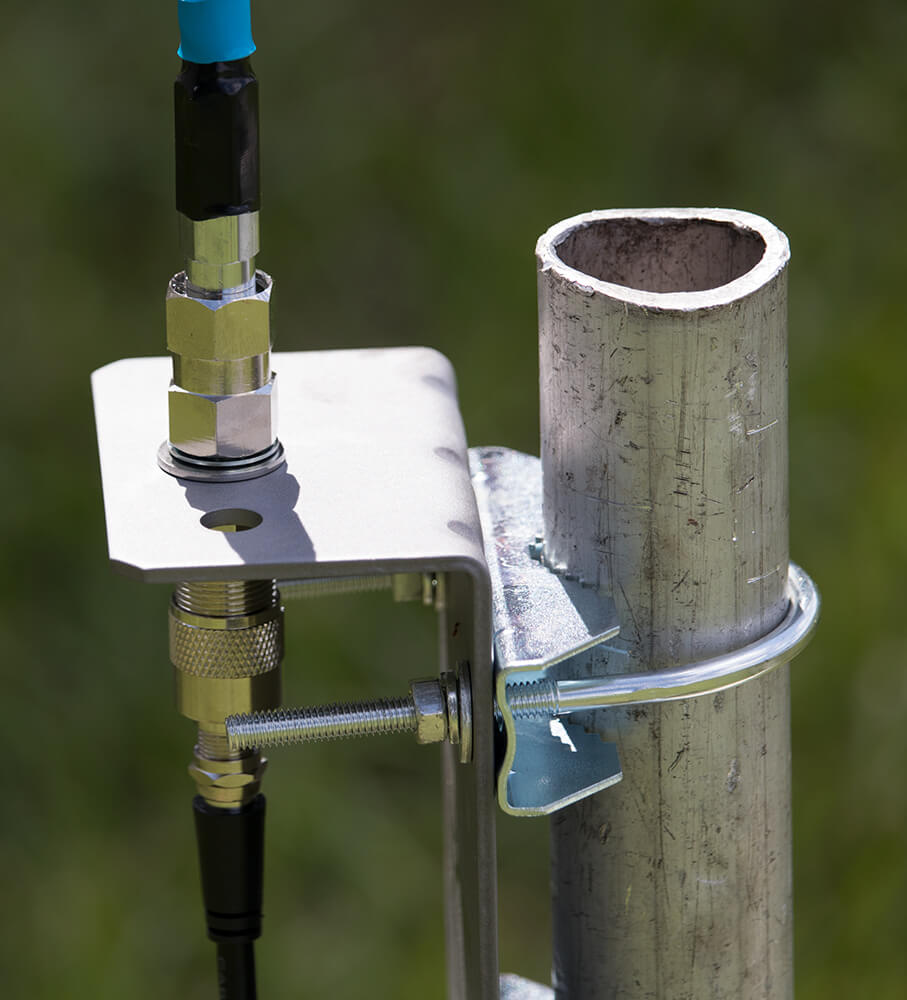

  • 1 - Lot Pole mounting hardware for AM/FM antenna
  • 1 - Triplexer Model TPLXR6 Weather Boot
  • 1 - Quadplexer Model QPLEX1 - F-71 F-male to F-male coupler
  • 1 - 3 ft F-female to SMB-plug cable
  • 2 - 3 ft F-male to F-male RG-59 cable
  • 2 - 20 dB attenuator2 - 10 dB attenuator
  • 2 - F-female to DIN adapter
  • 2 - Twin lead AM radio antenna adapter
  • 2 - Grounding lug and star washer
