Description

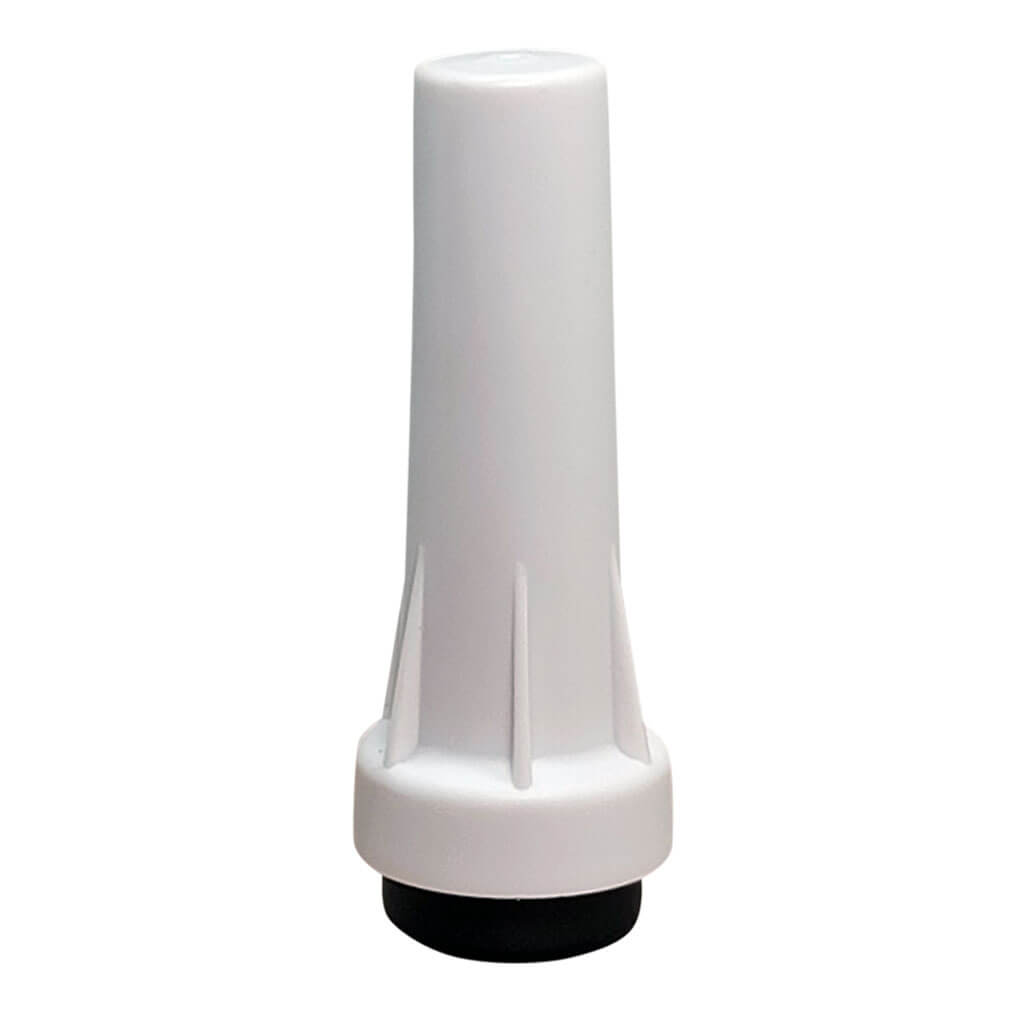

Introducing the new kid on the block... the The SiriusXM Radio Flush Mount Antenna.
This antenna is designed with a post mounting system that allows you to drill a hole into surface and have a completely clean and flush installation.

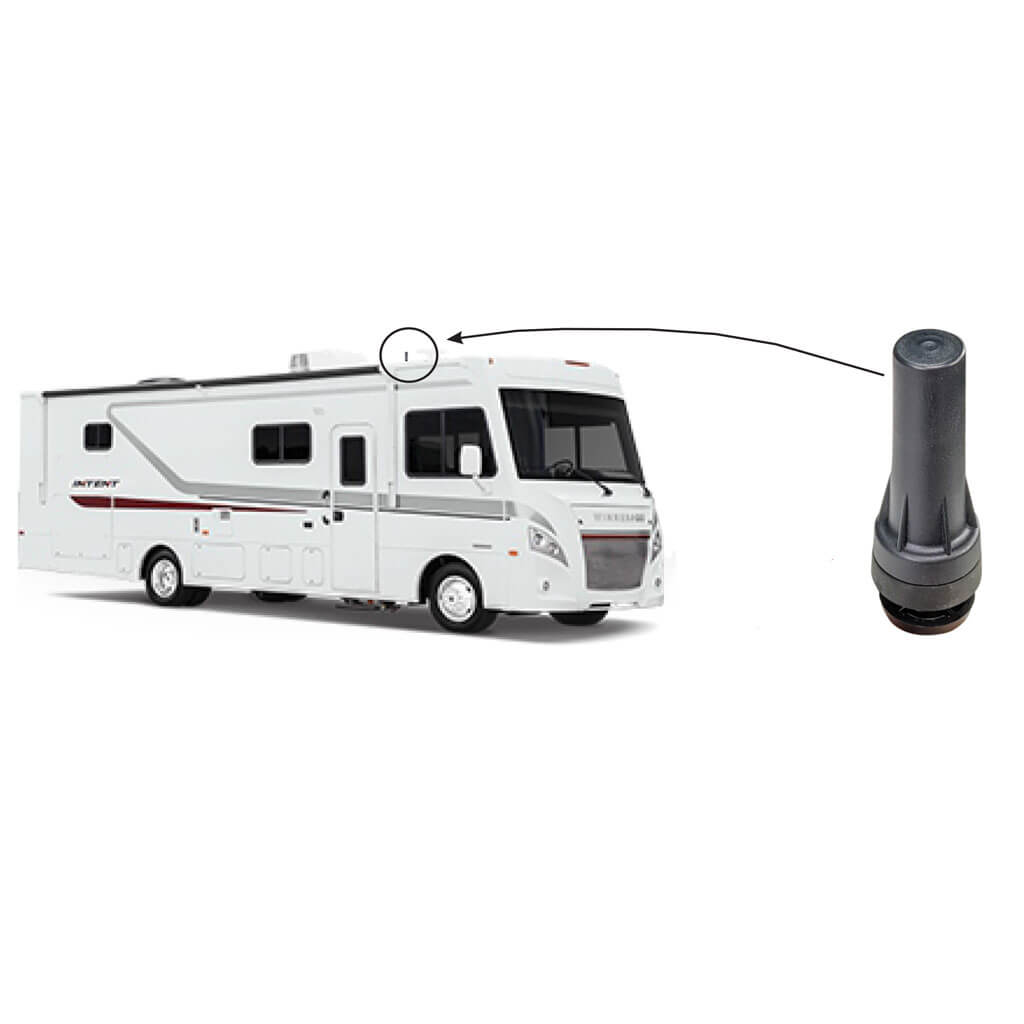

The antenna is perfect for:
- RV's
- Trucks
- Boats
- and other vehicles

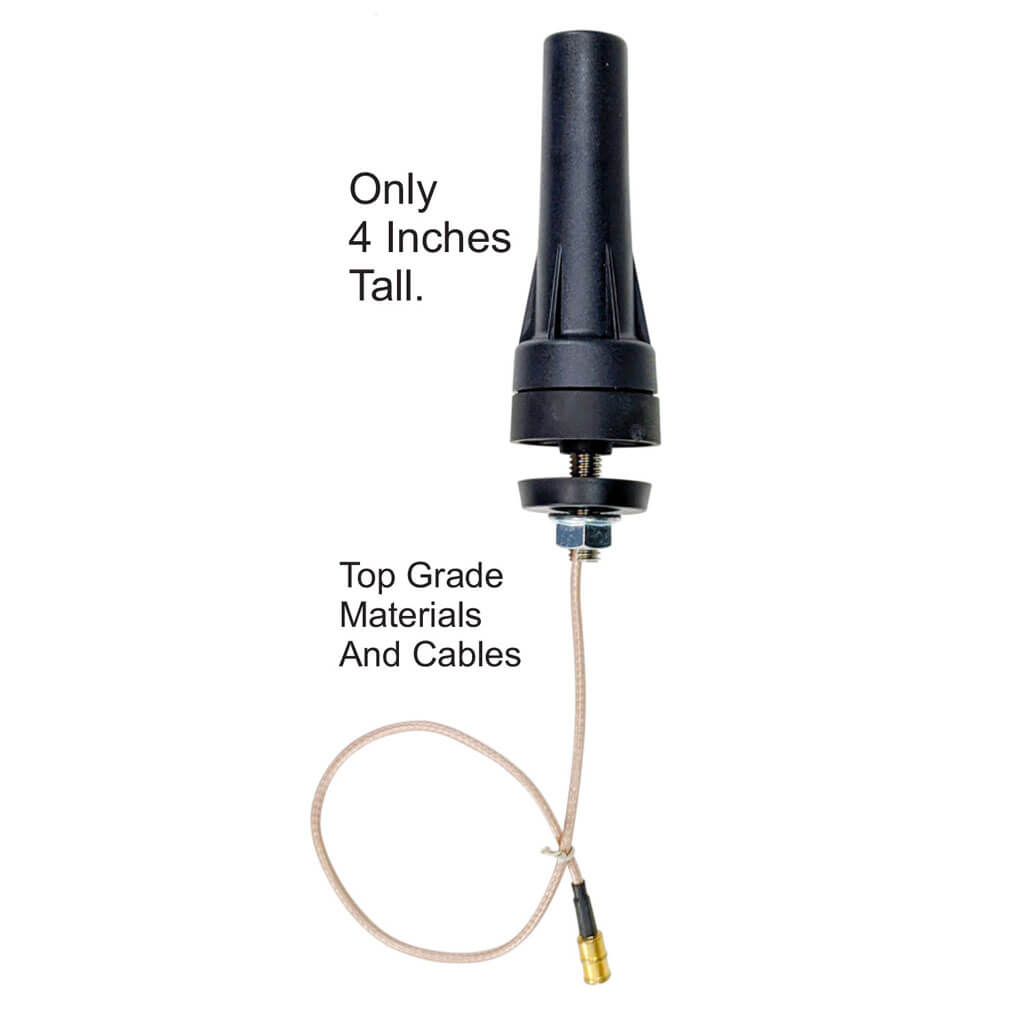

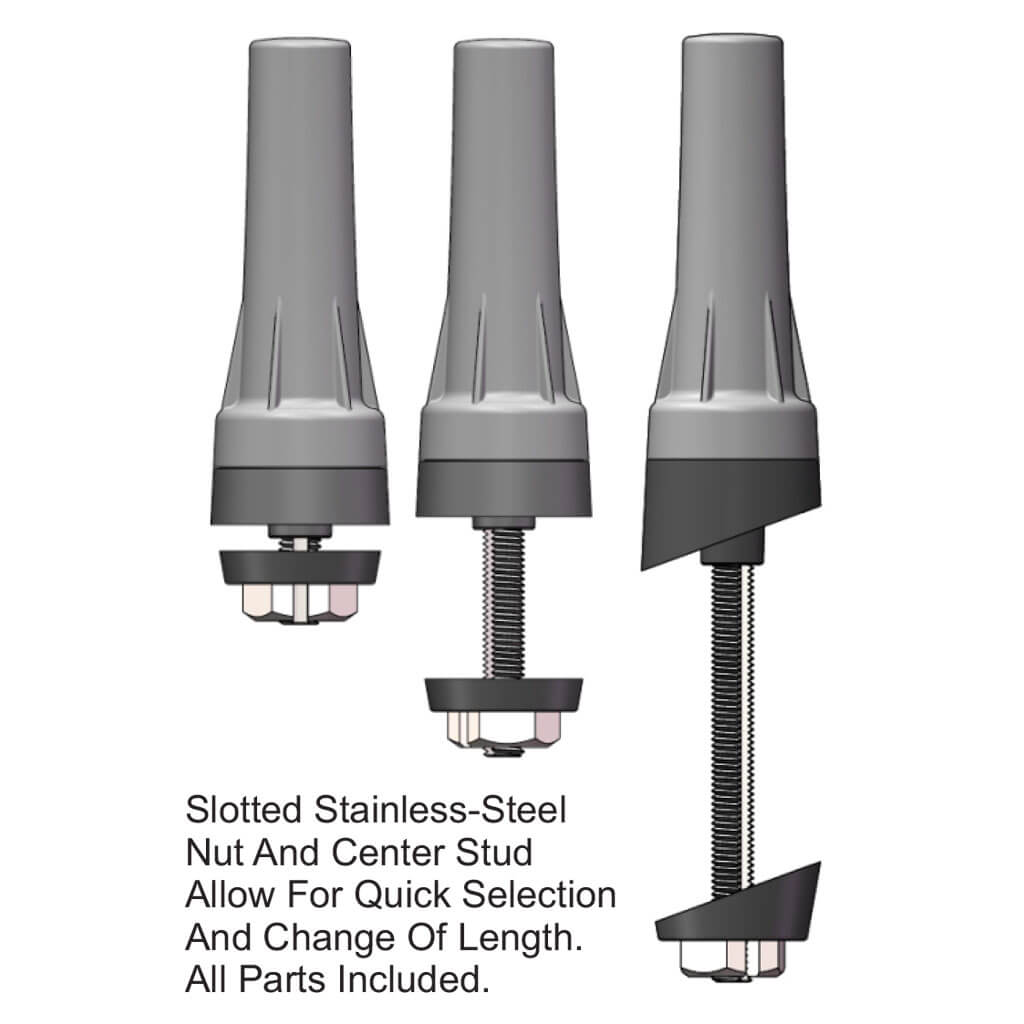

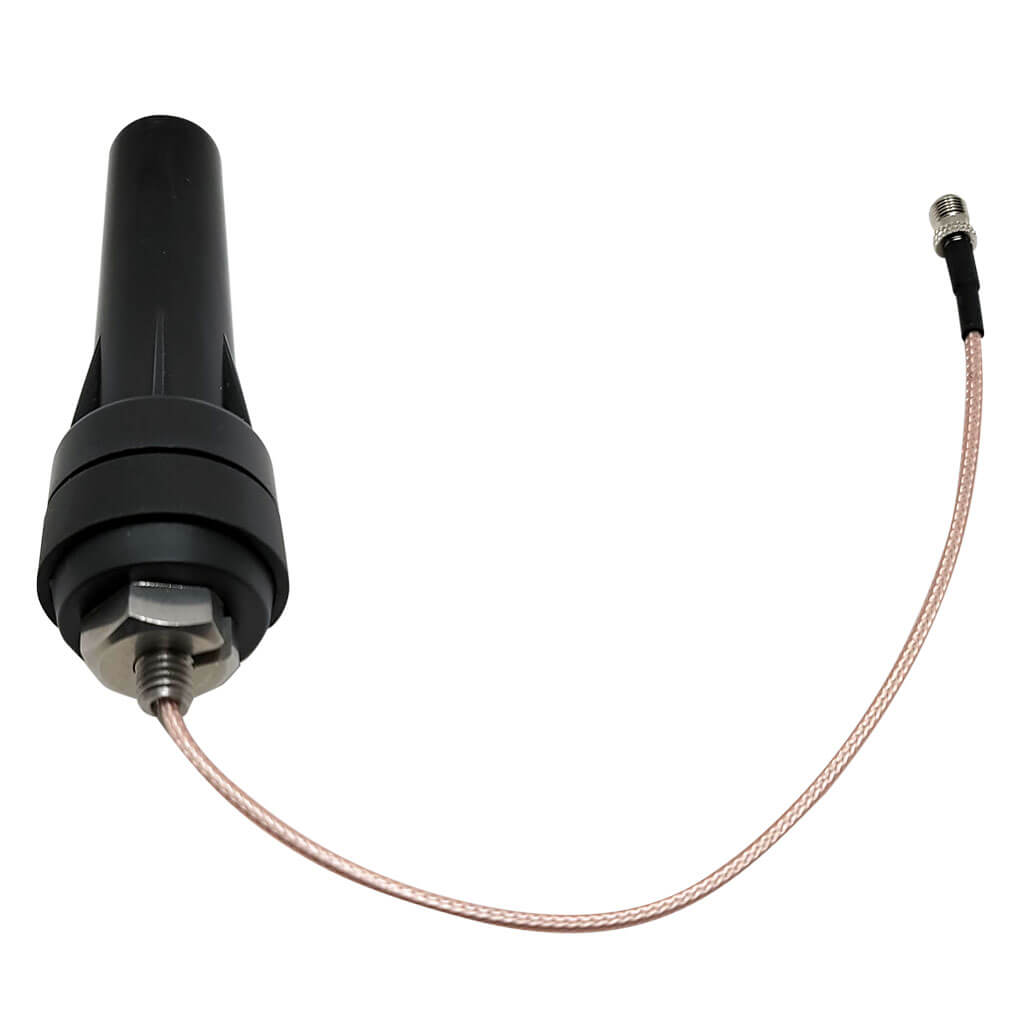

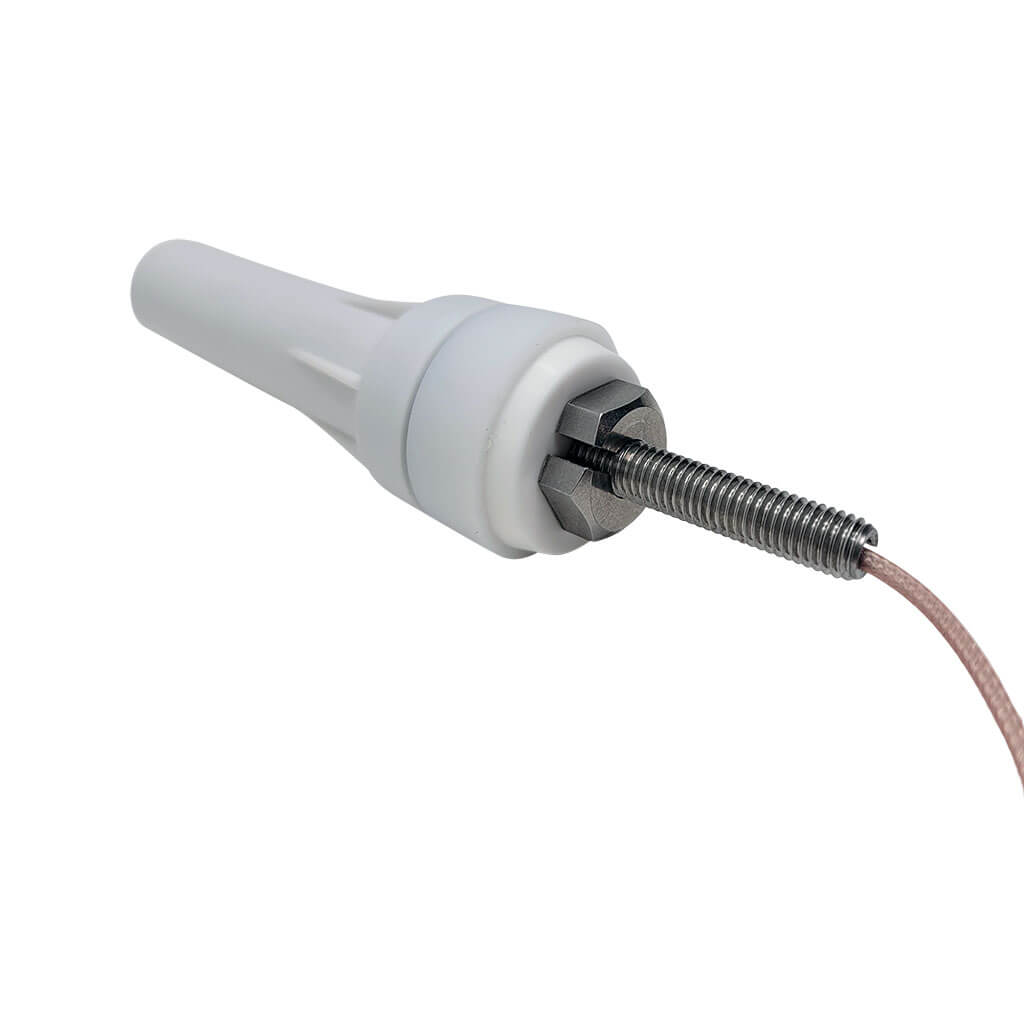

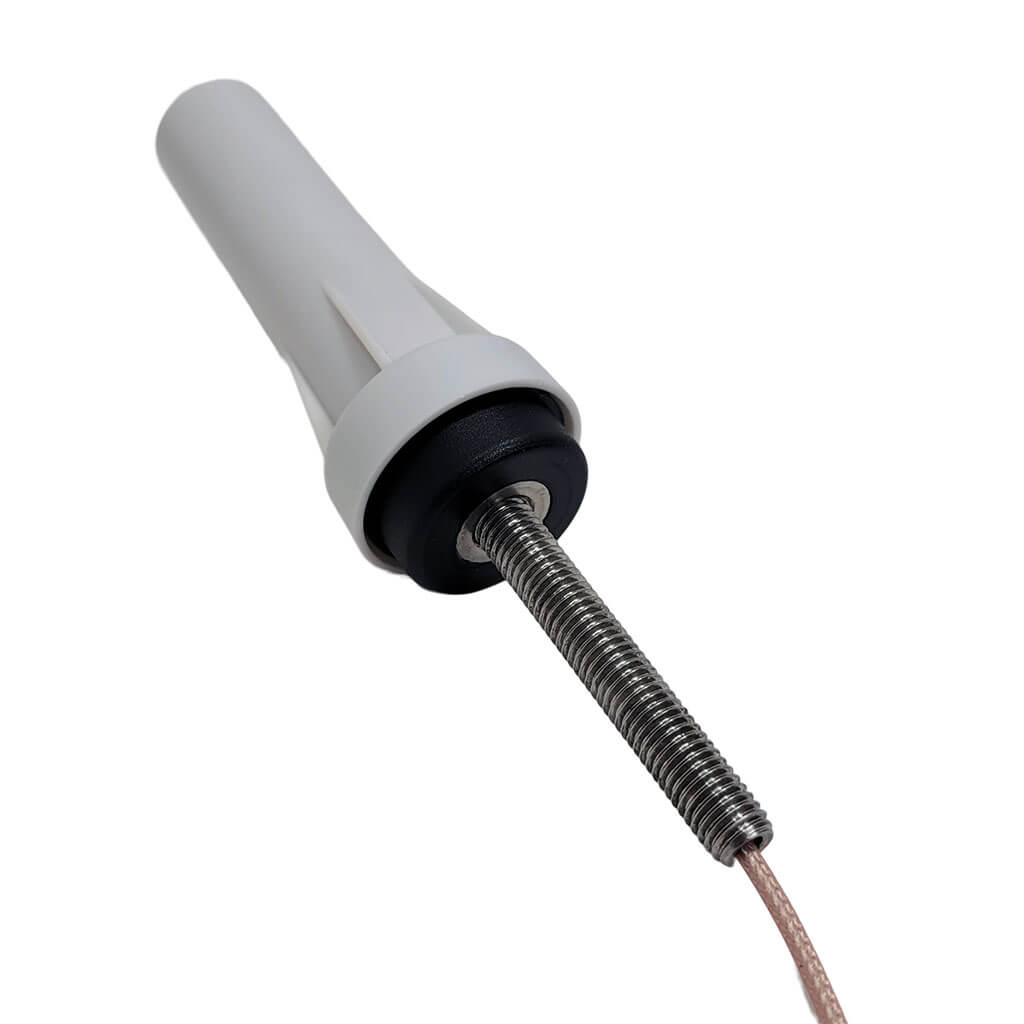

The patent pending design features a removable and changeable center post that screws on the antenna base allowing for installations with different roof and surface thickness. The antenna base is a high quality rubber that keeps out water and moisture. On the inside there is a plastic washer, metal washer, and nut to keep the inside of the antenna base secure. The antenna has a 6 inch cable with an SMA connector coming from the bottom of the antenna post. By using an SMA connector it allows the connections to be screwed together so you don't have to worry about the antenna connections coming apart after installation.
This new SiriusXM™ Radio antenna is specifically designed to deliver the highest quality signal with the smallest design.
- Provides full high performance required for perfect reception of all channels
- Installs on any Truck or RV roof made of wood, fiberglass, rubber, etc.
- Designed to install through any roof up to 3-1/2" thick
- Installs on angled/sloped surface up to 20 degrees while staying vertical
- Small, compact, strong fits on any clear space on the roof
You are looking at the latest in SiriusXM™ antenna technology!
- Filters out wifi and 4G LTE cellular signals which interfere with SiriusXM signals
- This antenna works with all Sirius and XM Radio Platform Receivers
- Specifically designed to endure the strong winds
- Simple installation
- New cone design with reinforced slots to give the cone more strength
- Stronger amplifier to pull in signals under trees
- Improved cable seal and cable support
- New watertight construction
- Stronger more robust low loss cable
- Meets the new specifications for SiriusXM Radio antenna reception
Compatible Receivers
This antenna will work with all Sirius and XM Radio receivers and Docks/Cradles
Technical Specs
- Model #: SXMFMA75
- Manufacturer: Pixel Technologies, Inc.

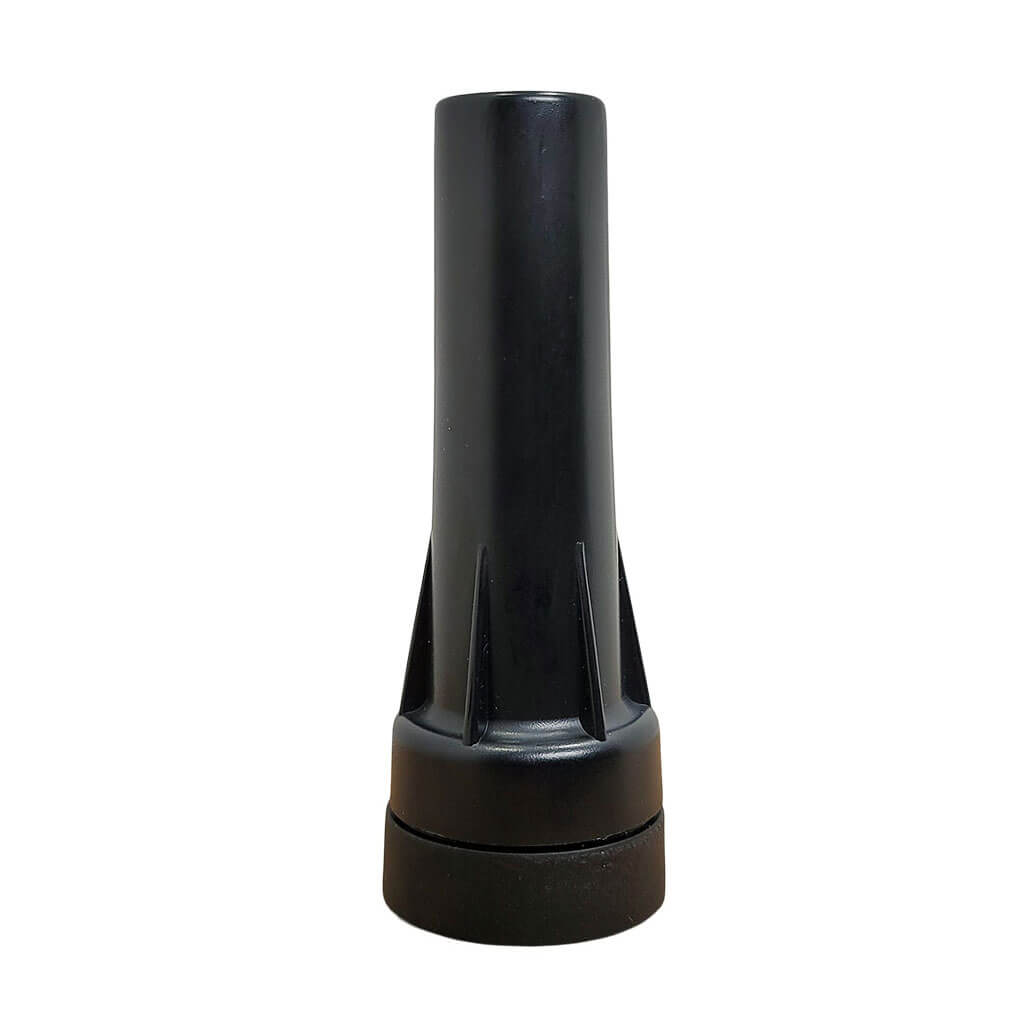

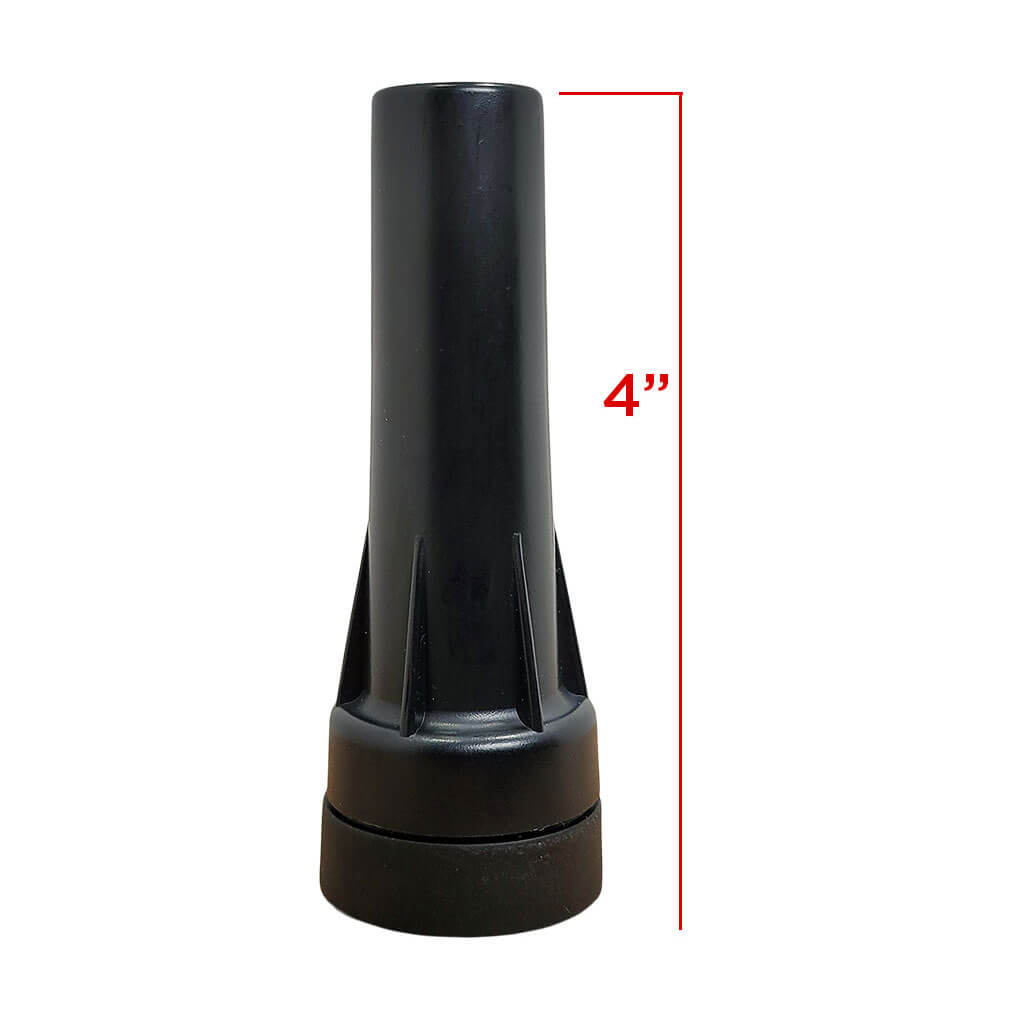

- Dimensions: 4" tall and 1" wide (at base)
- Weight: 3 ounces
- Frequency: 2320 to 2345 MHz
- Gain 2 dBic (20-60 deg elevation)
- Gain 5 dBic (60-90 deg elevation)-3 dBi (horizon)
- Bandwidth: 25
- MHz Impedance: 50 ohms
- Polarization LHCP (20-90 deg elevation)
- Linear (Horizon)
- Integrated Inside Radome
- Gain: 27 dB, typical
- Noise Figure: 1.0 dB, maximum
- Power: 4.5 Vdc, nominal
- Current Drain: 60 mA, maximum
- Unwanted Signal Rejection: New Gen. Filter
- Type: Coaxial RG-174
- Length: 15 FT
- Interface to RG-58 length Options /RV
- Connector: SMB female
- Housing Length: 3.6”
- Overall Height: 4.2 inches
- Effective Diameter: 0.7 – 1.32 inches max
- Housing Material: Black ASA, UV Stable
- RV:1.37” Diam base. 0.312” hole
- Adjustable Angle 0 to 35 degree slope
- Rated Wind Velocity: 130 mph
- Weight: 0.25 Lbs w/out Cable
- Temperature: -40 °C to +105 °C, operating
- -45 °C to +120 °C, storage

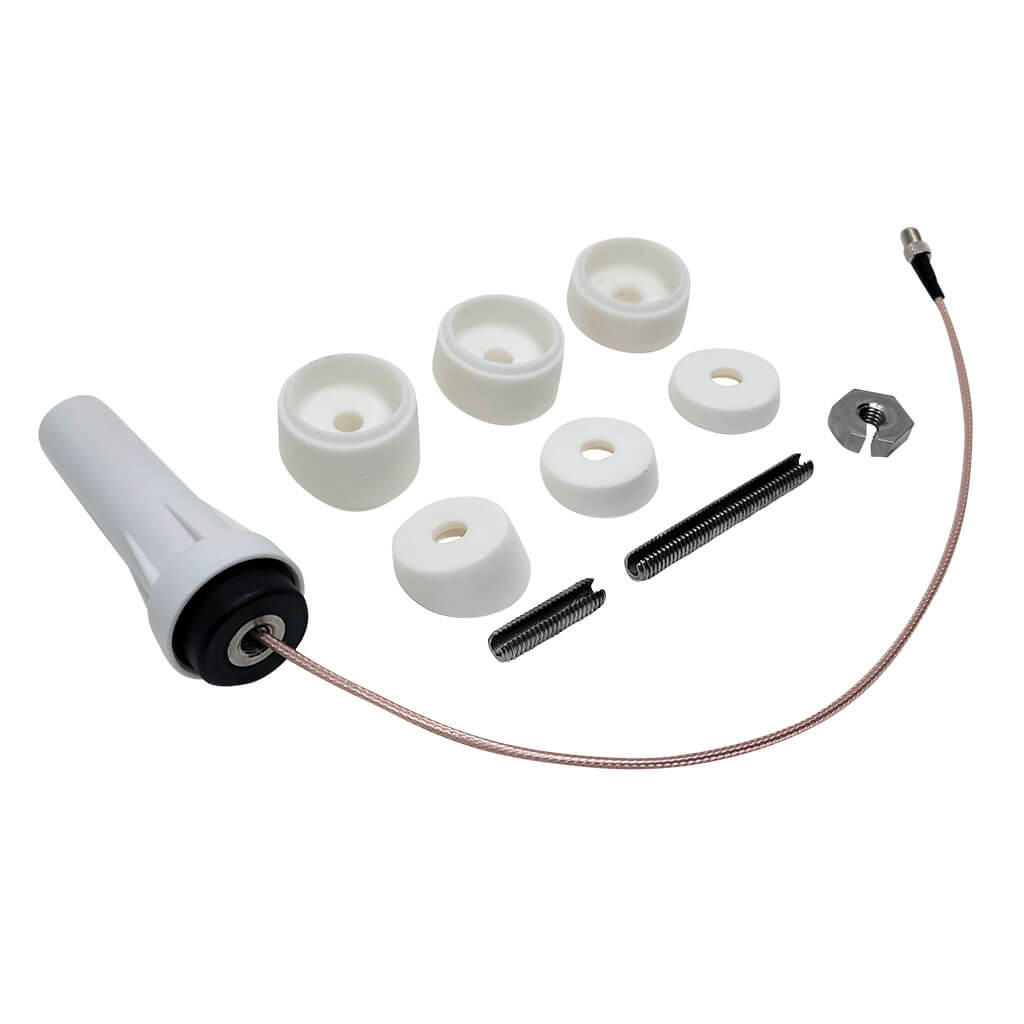

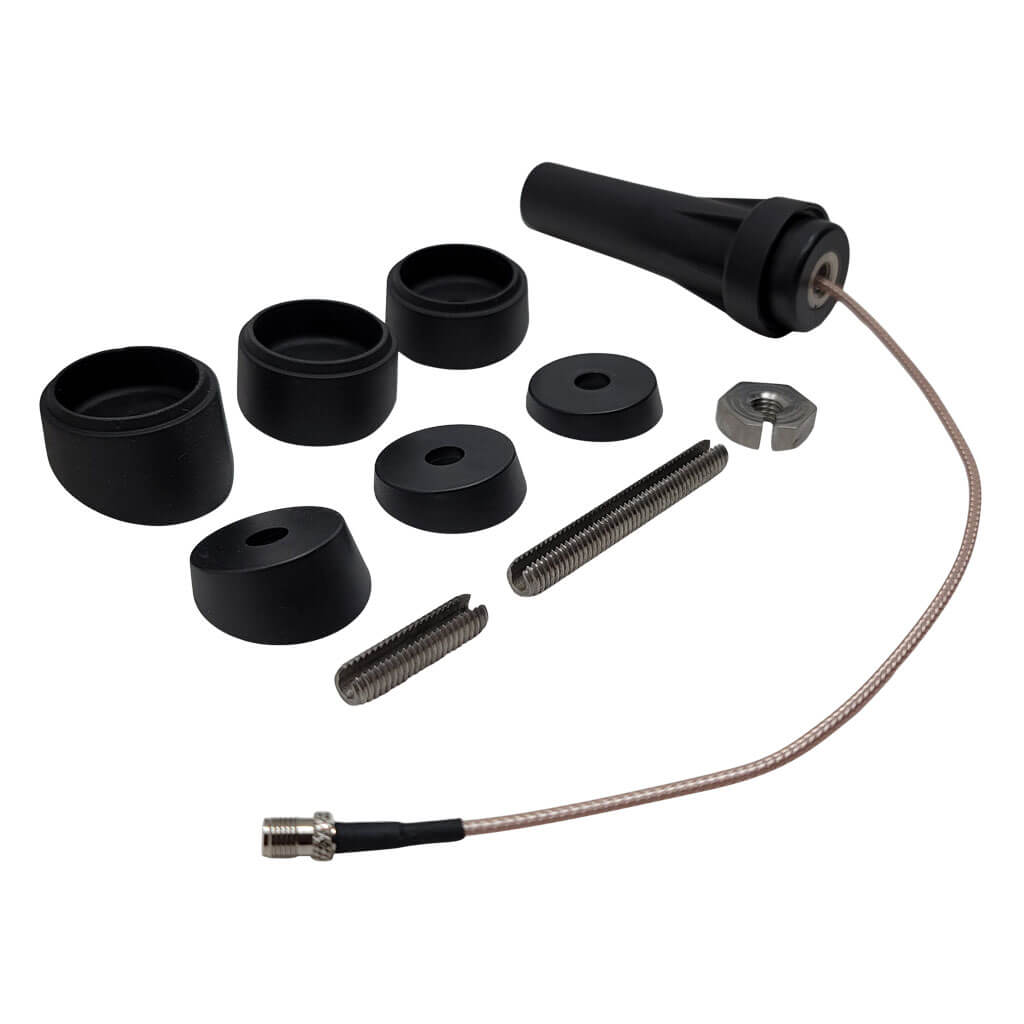

Package Includes
- SiriusXM Flush Mount Antenna

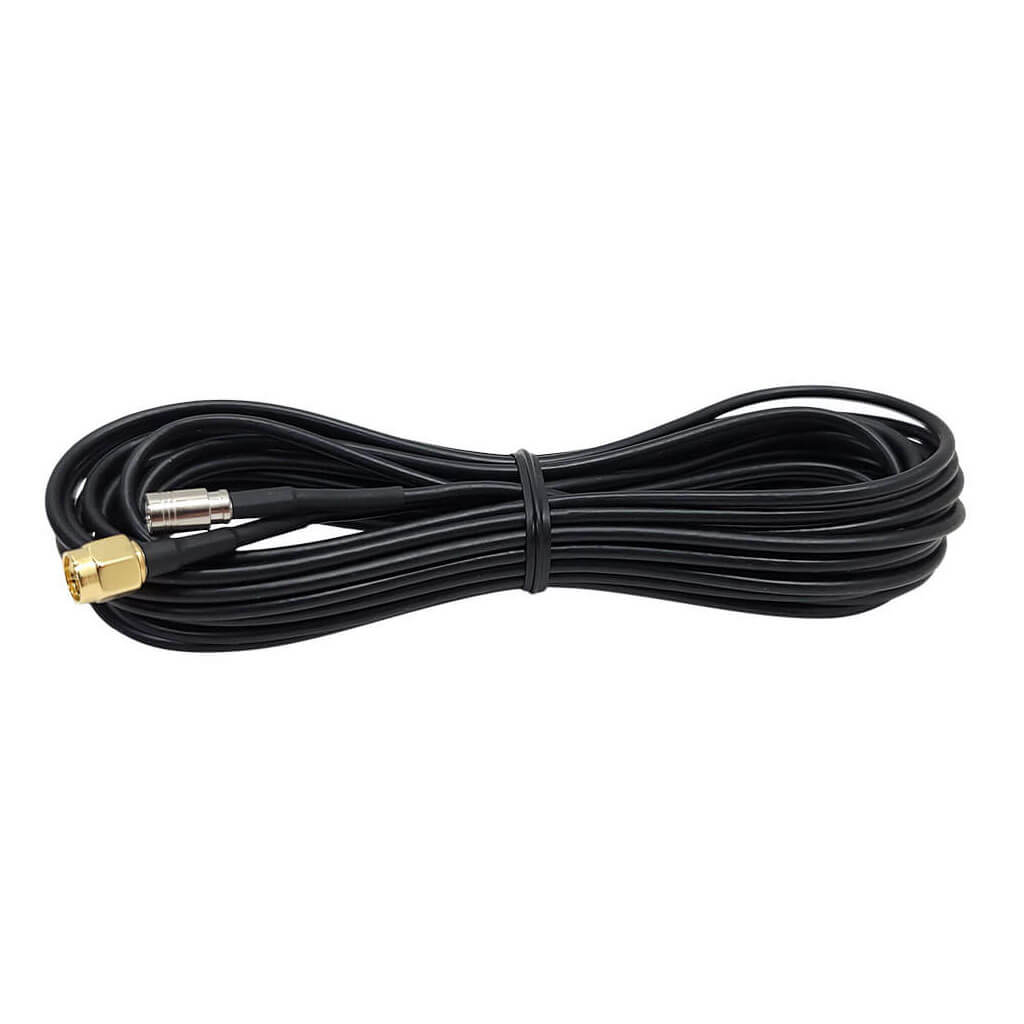

- 15 Foot Antenna Cable
- Rubber Base
- Plastic Washer
- Metal Washer
- Nut
- Adjustable Bases for Different Surface Angles
Download Product Documentation, Installation Guides & Manuals
