Marine SiriusXM Radio AM FM Combo Antenna with Fiberglass Mast

Please Note: These antennas are hand-made to order and may require 10 days for assembly and testing prior to shipping.

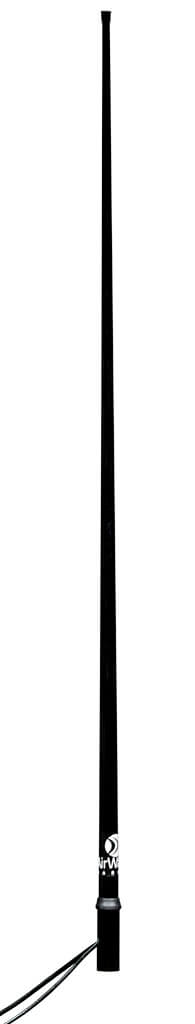

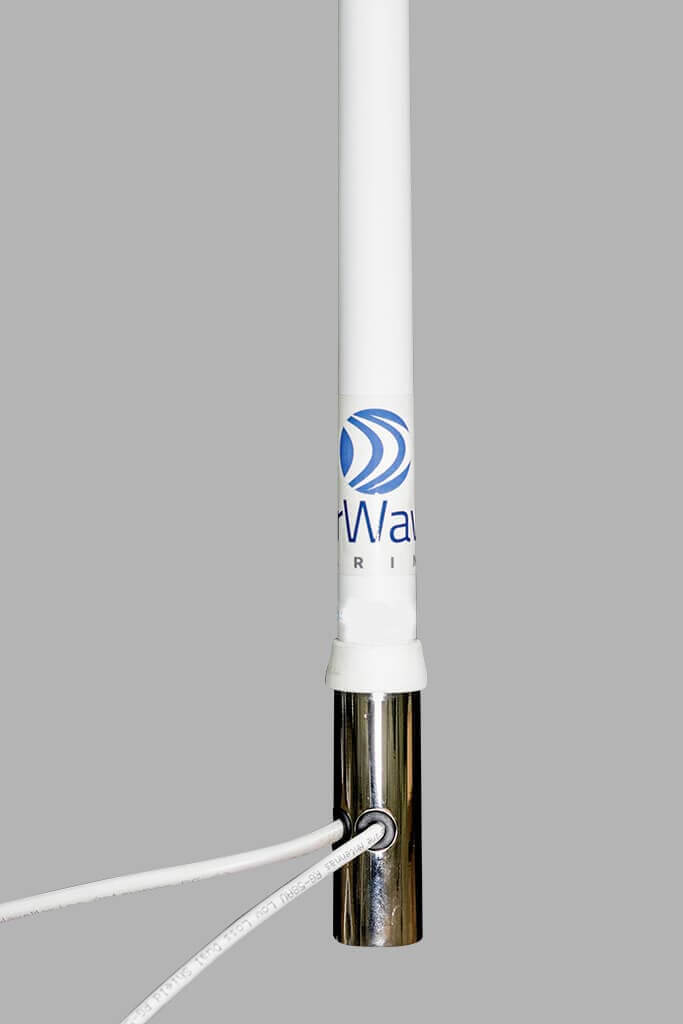

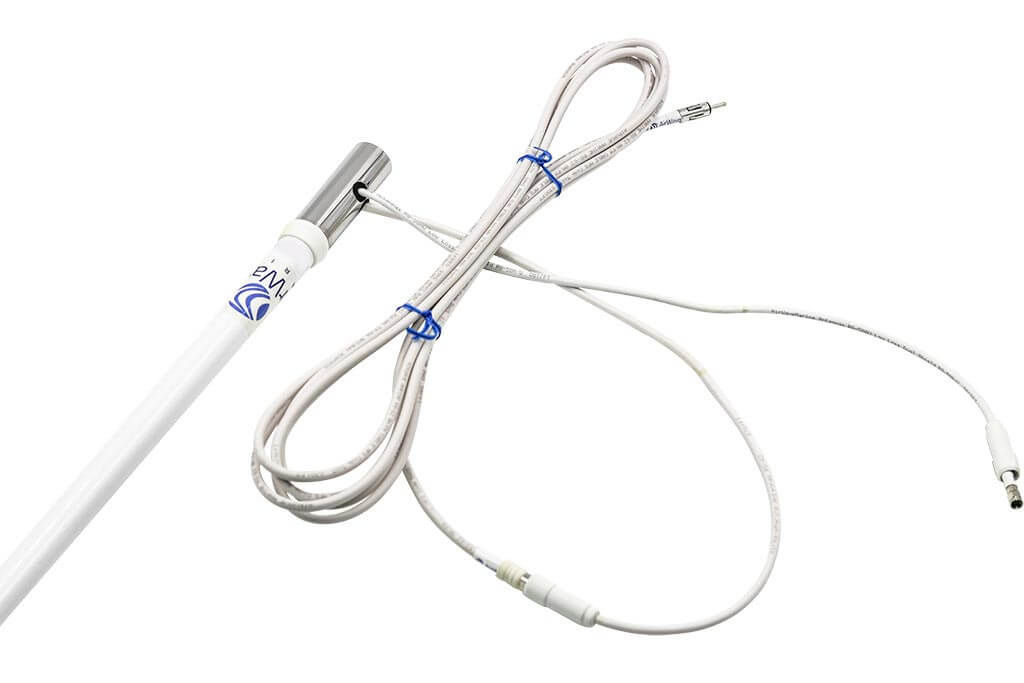

This Marine Antenna combines SiriusXM Radio and AM / FM into a single antenna. The antenna offers high quality signal with an extended fiberglass mast and universal threaded base for mounting on a nylon or stainless steel ratchet mount. The antenna has 2 cables coming off the base of the antenna. One cable is for the SiriusXM signal and one cable is for AM FM signal. Included are (2) 15 Foot antenna cables.

The antenna comes in 48" and 96" inch lengths. Be sure to select the antenna length above the Add to Cart button.

Antenna Features

• Receives SiriusXM Radio signal
• Receives AM / FM signal up to 150 mile range
• Universal SMB connectors to connect to Satellite Radio receivers
• Super strong fiberglass mast tubing
• Easy Installation

• Watertight Construction

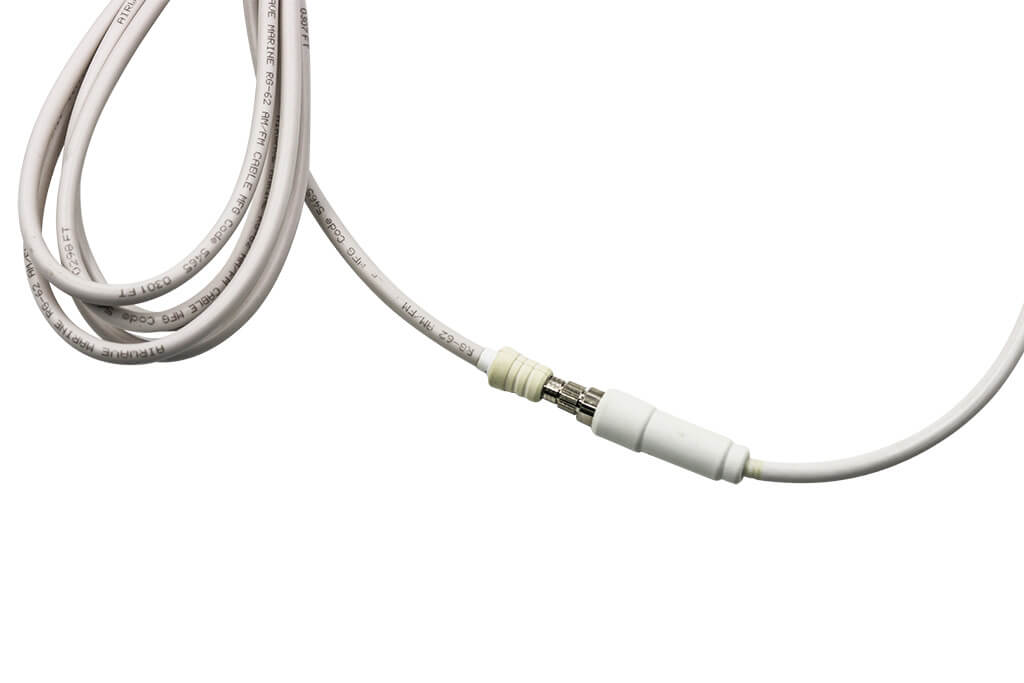

• Attached short cables that connect to the longer extension cables
• Watertight connector covers

• Specifically Designed to Endure the Strong Wind Currents and Abuse and Deliver the Highest Possible Signal Quality


Compatible Receivers

This antenna will work with all Satellite Radio receivers and Docks/Cradles

SiriusXM Radio Antenna Technical Specs

• Model #: SXMAMFM-4FT

• Manufacturer: Pixel Technologies

• Antenna Height: 48" & 96" tall

• Antenna Width: 2" wide

• Base Width: 2.5" wide
• Weight: 14 ounces ( 4FT antenna)

• Frequency: 2320 to 2345 MHz
• Gain 2 dBic (20-60 deg elevation)
• Bandwidth: 25 MHz
• MHz Impedance: 50 ohms
• Polarization LHCP (20-60 deg elevation)
• Linear (Horizon)
• Gain: 30 dB, typical
• Noise Figure: 1.0 dB, maximum
• Power: 4.5 Vdc, nominal
• Current Drain: 120 mA, maximum
• Unwanted Signal Rejection: 40 dB minimum

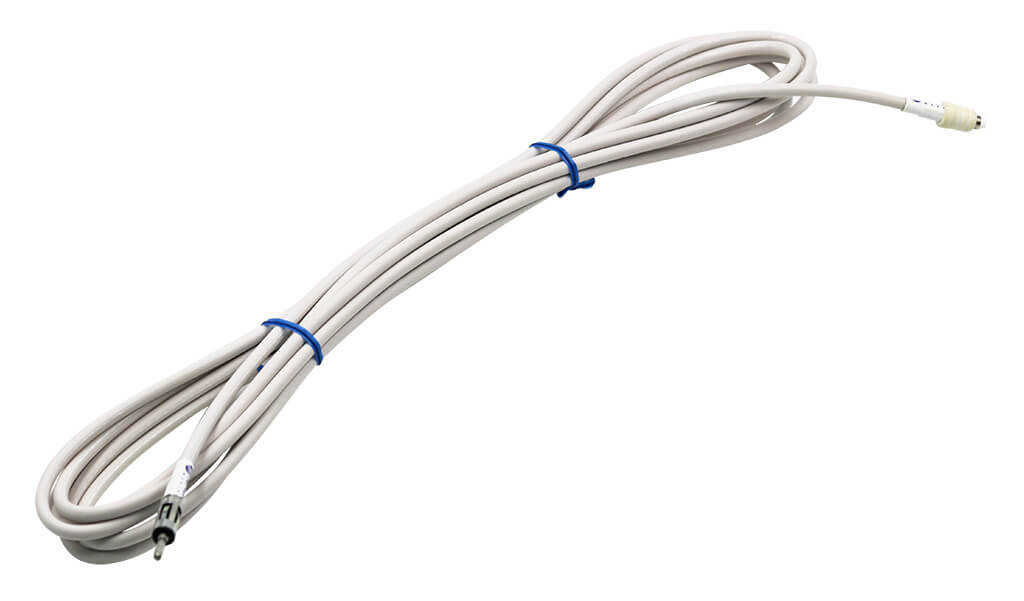

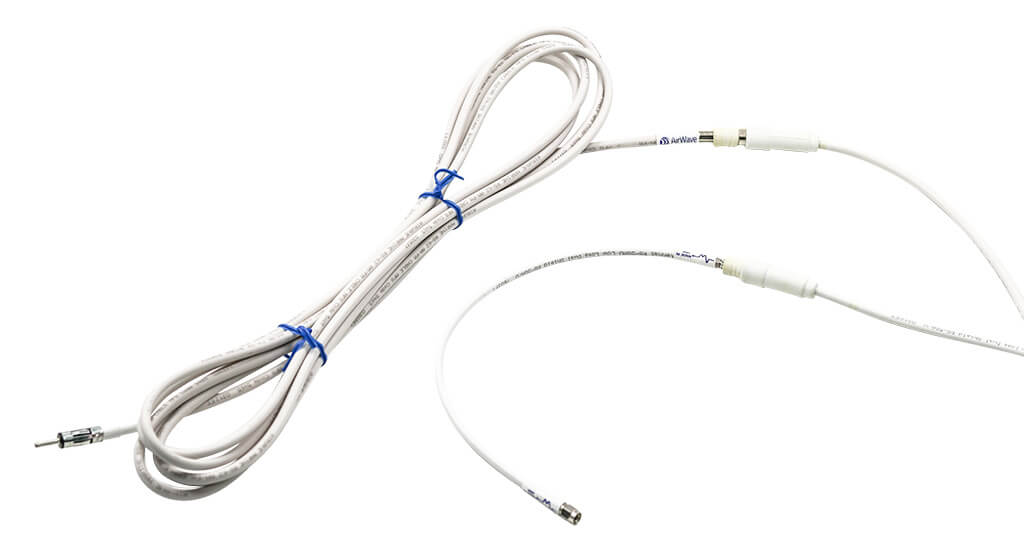

• Cable Length: 15 feet (2 cables)


Mounting

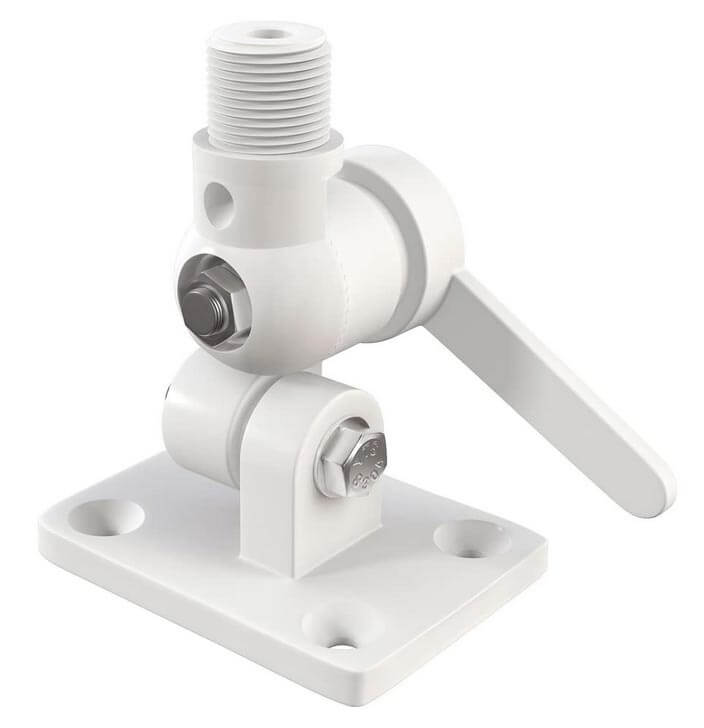

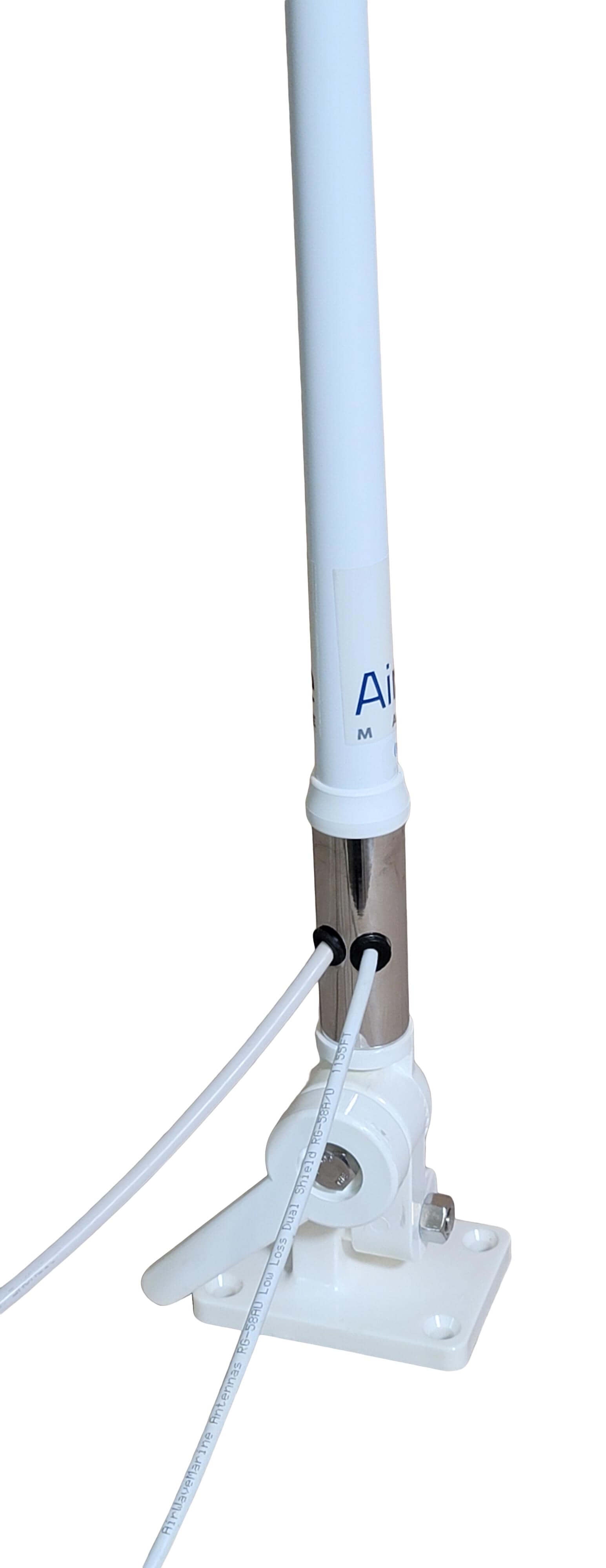

• Fits Standard Marine Antenna Bases

Package Includes

• Marine Antenna
• SiriusXM Cable
• AM / FM Cable

Please note: Due to the box size of this antenna it does not qualify for free shipping or shipping promotions and may ship separate from other items on the same order.
